Fuji 3 Pole MCCB Breaker Price in Pakistan is Rs. 11,500/-.

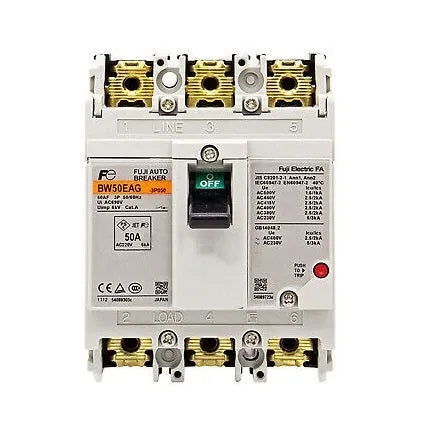

Introducing the Fuji BW50-EAG 3 Pole Molded Case Circuit Breaker. This circuit breaker is designed for reliable protection with front mounting capability. Featuring line protection and a trip unit with a hydraulic-magnetic mechanism, it ensures efficient thermal (overload) and magnetic (short-circuit) protection. Equipped with lugs terminal type and fixed connection, it offers ease of installation and dependable performance for various applications.
Hydraulic-magnetic trip unit for reliable protection.
Provides line protection.
Equipped with lugs terminals for secure connections.
Product Specifications
Height
100 mm
weight
500 g
depth
84 mm
mounting mode
front mounting
terminal type
lugs
trip unit name
hydraulic-magnetic
frame current rating
50 af
rated current
50 a
rated impulse voltage
6 kv
rated insulation voltage
690 v
rated voltage (ac)
690 v
rated voltage (dc)
250 v
trip current rating
50 at
function
moulded case circuit breaker (mccb) / auto breaker
connection type
fixed
poles description
3 pole(s)
width
75 mm
Product Details
Fuji 3 Pole MCCB Breaker Price in Pakistan is Rs. 11,500/-.
Introducing the Fuji BW50-EAG 3 Pole Molded Case Circuit Breaker. This circuit breaker is designed for reliable protection with front mounting capability. Featuring line protection and a trip unit with a hydraulic-magnetic mechanism, it ensures efficient thermal (overload) and magnetic (short-circuit) protection. Equipped with lugs terminal type and fixed connection, it offers ease of installation and dependable performance for various applications.
