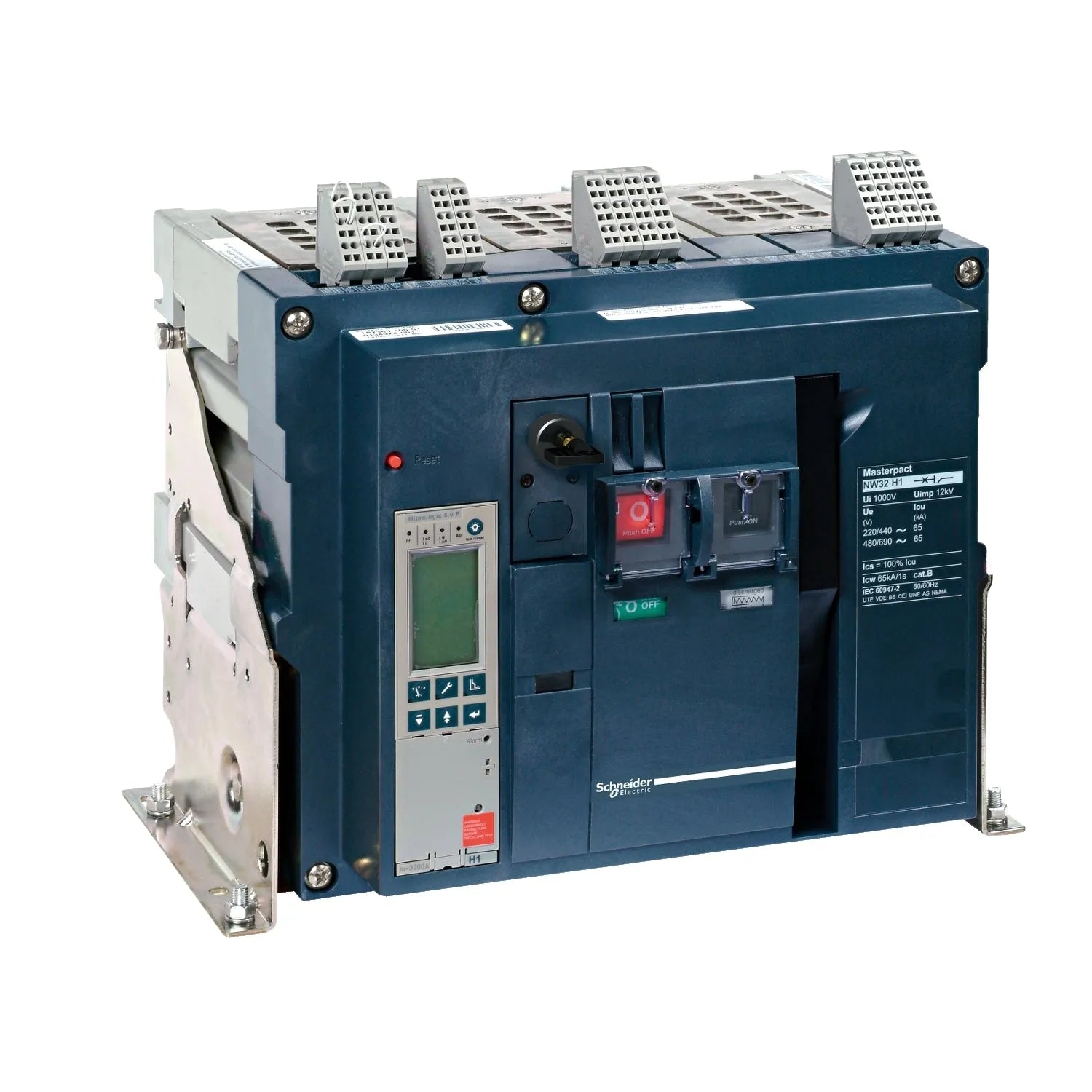

Schneider MasterPact NW08H2 3 Pole 1600A Air Circuit Breaker

Name: Schneider MasterPact NW08H2 3 Pole 1600A Air Circuit Breaker
Brand: Schneider Electric
SKU: NW16H2
Price: 1100000.0 PKR
Availability: InStock

Product SKU:NW16H2

Be the first to review

Rs.1,100,000.00 PKR

Sale Sold out

people bought this recently

Product variants

About This Product

Key Features

Range: MasterPacT
Product name: MasterPact NW
circuit breaker name: MasterPact NW16H2
Product or component type: Circuit ... Show All Key Features

Product Specifications

Range	masterpact
product name	masterpact nw circuit breaker name
product or component type	circuit breaker
net weight	50 kg

Product Details

Schneider MasterPact 3P 1600A ACB Breaker price in Pakistan is Rs 1,100,000/-.
Schneider MasterPact NW08H2 is a top-tier air circuit breaker, equipped with a 3-pole configuration and an impressive 1600A capacity. Renowned for its reliability and efficiency, this breaker delivers comprehensive electrical protection tailored for industrial applications. Engineered to ensure both safety and stability in electrical systems, it stands out as a powerful solution ideal for demanding environments.

User Manual

Schneider MasterPact NW08H2 3 Pole 1600A Air Circuit Breaker.pdf

Powerhouse Benefits

Invoice Available
Secure Payments
365 Days Help Desk

Return & Warranty Policy

Upto 3 Days Returnable
Missing Product
Wrong Product
Damaged Product

Schneider MasterPact NW08H2 3 Pole 1600A Air Circuit Breaker Price in Pakistan

Looking to purchase Schneider MasterPact NW08H2 3 Pole 1600A Air Circuit Breaker in bulk?

Purchase item in bulk quantity
Get at best price for your business

Reviews & Ratings

Update Qty

Related Categories

Air circuit breakers Circuit breakers Industrial automation & circuit protection Schneider electric

Range	masterpact
product name	masterpact nw circuit breaker name
product or component type	circuit breaker
net weight	50 kg
device application	power distribution protection
poles description	3p
control unit	without control unit
rated current [in]	1600 a at 40 °c
performance type	h2 100 ka 440 v ac
rated operational voltage [ue]	690 v ac 50/60 hz
suitability for isolation	yes conforming to en/iec 60947-2
selectivity category	category b
control type	push-button
mounting mode	fixed
rated ultimate short-circuit breaking capacity [icu]	100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rated service breaking capacity [ics]	100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rated short-time withstand current [icw]	85 ka 1 s / 50 ka 3 s
integrated instantaneous protection (din in ka peak)	171…209 ka
sensor rating	800 a / 1600 a
rated insulation voltage [ui]	1000 v ac 50/60 hz
rated impulse withstand voltage [uimp]	12 kv
power dissipation in w	170 w
maximum breaking time	25 ms
maximum closing response time	70 ms
mounting support	backplate / rails
upside connection	front / rear
downside connection	front / rear
mechanical durability	12500 cycles without maintenance / 25000 cycles with maintenance
electrical durability	10000 cycles 440 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / 10000 cycles 690 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / ac-23a
standards	en/iec 60947-1 / en/iec 60947-2
ip degree of protection	ip30 conforming to iec 60529
pollution degree	4 conforming to iec 60664-1
ambient air temperature for operation	-25…70 °c
ambient air temperature for storage	-40…85 °c
operating altitude	0...2000 m without derating / 2000 m...5000 m with derating
