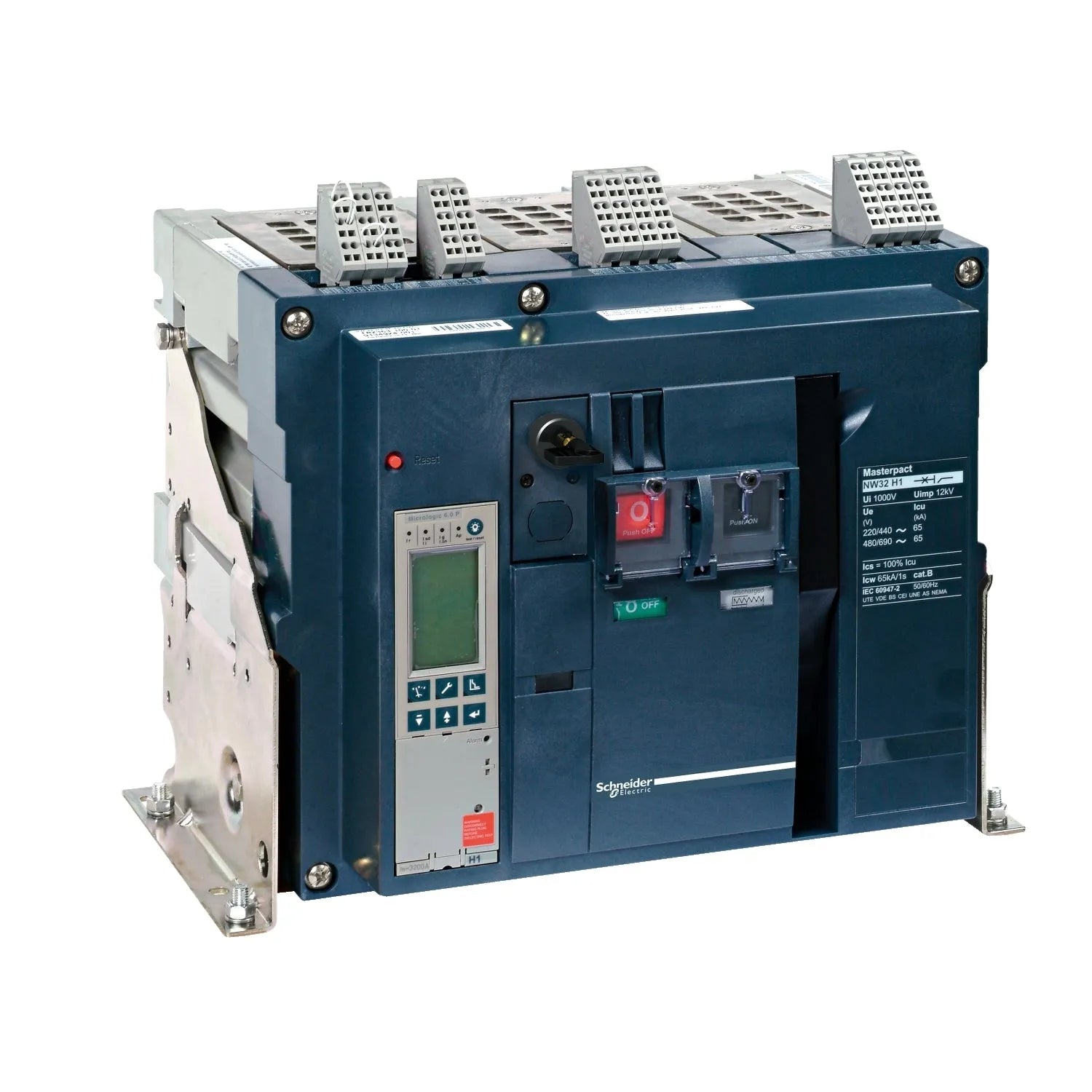

Schneider MasterPact NW32H2 3 Pole 3200A Air Circuit Breaker

Name: Schneider MasterPact NW32H2 3 Pole 3200A Air Circuit Breaker
Brand: Schneider Electric
SKU: 48083
Price: 1980000.0 PKR
Availability: InStock

Product SKU:48083

Be the first to review

Rs.1,980,000.00 PKR

Sale Sold out

people bought this recently

Product variants

About This Product

Key Features

Range: MasterPacT
Product name: MasterPact NW
circuit breaker name: MasterPact NW32H2
Product or component type: Circuit ... Show All Key Features

Product Specifications

Range	masterpact product name
product or component type	circuit breaker
device application	power distribution protection
poles description	3p

Product Details

Schneider MasterPact 3P 3200A ACB Breaker price in Pakistan is Rs 1,980,000/-.
The Schneider Electric MasterPact NW32H2 is a formidable circuit breaker, boasting a 3200A capacity with a stable 3-pole configuration. Fixed in design and without a trip unit, this breaker is tailored for high-demand scenarios. It provides robust electrical protection, ensuring the safety and stability of industrial applications. The MasterPact NW32H2 is a reliable solution for high-performance electrical systems, offering efficiency and durability in a compact package.

User Manual

Schneider MasterPact NW32H2 3 Pole 3200A Air Circuit Breaker.pdf

Powerhouse Benefits

Invoice Available
Secure Payments
365 Days Help Desk

Return & Warranty Policy

Upto 3 Days Returnable
Missing Product
Wrong Product
Damaged Product

Schneider MasterPact NW32H2 3P ACB Breaker Price in Pakistan

Looking to purchase Schneider MasterPact NW32H2 3 Pole 3200A Air Circuit Breaker in bulk?

Purchase item in bulk quantity
Get at best price for your business

Reviews & Ratings

Update Qty

Related Categories

Air circuit breakers Circuit breakers Industrial automation & circuit protection Schneider electric

Range	masterpact product name
product or component type	circuit breaker
device application	power distribution protection
poles description	3p
control unit	without control unit
rated current [in]	3200 a at 40 °c
performance type	h2 100 ka 440 v ac
rated operational voltage [ue]	690 v ac 50/60 hz suitability for isolation
selectivity category	category b
control type	push-button
mounting mode	fixed
rated ultimate short-circuit breaking capacity [icu]	100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rated service breaking capacity [ics]	100 ka at 220/415 v ac 50/60 hz / 100 ka at 440 v ac 50/60 hz / 85 ka at 525 v ac 50/60 hz / 85 ka at 690 v ac 50/60 hz
rated short-time withstand current [icw]	85 ka 1 s / 75 ka 3 s
rated short-circuit making capacity [icm]	220 ka 220/415 v ac at 50/60 hz / 187 ka 440 v ac at 50/60 hz / 187 ka 525 v ac at 50/60 hz / 187 ka 690 v ac at 50/60 hz
integrated instantaneous protection (din in ka peak)	171…209 ka
sensor rating	1600 a / 3200 a
rated insulation voltage [ui]	1000 v ac 50/60 hz
rated impulse withstand voltage [uimp]	12 kv
power dissipation in w	420 w
maximum breaking time	25 ms
maximum closing response time	70 ms
mounting support	backplate / rails
upside connection	front / rear
downside connection	front / rear
mechanical durability	10000 cycles without maintenance / 20000 cycles with maintenance
electrical durability	5000 cycles 440 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / 2500 cycles 690 v ac 50/60 hz without maintenance conforming to en/iec 60947-2 / ac-23a
net weight	50 kg
standards	en/iec 60947-1 / en/iec 60947-2
ip degree of protection	ip30 conforming to iec 60529
pollution degree	4 conforming to iec 60664-1
ambient air temperature for operation	-25…70 °c
ambient air temperature for storage	-40…85 °c
operating altitude	0...2000 m without derating / 2000 m...5000 m with derating
