How Solar Panels Are Mounted on Roofs: Homeowner Guide

Mounting solar panels on a roof looks simple from the outside. You see panels on a rooftop, a few metal rails, some wiring and an inverter. But a safe solar installation is much more than placing panels on the roof.

The real work is in roof inspection, correct panel direction, strong mounting structure, waterproofing, wiring safety and final testing.

If the panels are mounted properly, your solar system can perform better for many years. If the mounting is done poorly, you may face roof leaks, low power generation, loose panels, wiring problems or even safety risks during strong wind and rain.

This guide explains how solar panels are mounted on a roof, what homeowners should check before installation, which mistakes to avoid and when professional installation is the safer choice.

Quick Answer

Solar panels are mounted on a roof by checking the roof condition, marking the support points, installing roof anchors or mounting brackets, attaching rails, fixing the panels with clamps, connecting the wiring and testing the complete system.

A safe rooftop solar installation needs:

  • Strong roof structure

  • Correct panel direction

  • Proper mounting frame

  • Waterproof sealing

  • Good cable management

  • Safe electrical connection

  • Final inspection

  • Regular maintenance

For most homeowners, professional installation is better than DIY because roof work and electrical wiring involve real safety risks.

What Does Roof Mounting Mean

Roof mounting means installing solar panels on the roof with a proper mounting structure. The structure holds the panels in place and keeps them at the right angle for sunlight.

A rooftop solar mounting system usually includes:

  • Roof anchors

  • Mounting brackets

  • Rails

  • Clamps

  • Bolts

  • Flashing

  • Sealant

  • Earthing support

  • Cable management accessories

The goal is simple. The panels should stay secure, receive good sunlight, allow airflow and avoid damaging the roof.

Why Roof Mounting Is Popular in Pakistan

Roof mounted solar panels are popular because most homes and buildings already have unused rooftop space. Instead of using ground area, the roof becomes a power generation surface.

For homeowners in Pakistan, rooftop solar is practical because cities like Karachi, Lahore, Islamabad, Multan, Faisalabad and Rawalpindi receive strong sunlight for most of the year.

Main benefits include:

  • Saves ground space

  • Uses existing roof area

  • Reduces electricity bills

  • Works well with on grid and hybrid systems

  • Can improve property value

  • Helps during high electricity tariff periods

  • Suitable for homes, offices and shops

However, the benefit only comes when the panels are installed correctly.

First Step: Check If Your Roof Is Ready for Solar

Before mounting solar panels, the roof should be inspected carefully. Many people skip this step and regret it later.

A solar system can last 20 to 25 years, so the roof should be strong enough to support it for a long time.

Check these points before installation:

  • Is the roof surface strong

  • Are there cracks or leaks

  • Is the roof old or weak

  • Is there enough open space

  • Are water tanks blocking sunlight

  • Are nearby buildings creating shade

  • Is there space for maintenance access

  • Can the roof handle the panel weight and structure

  • Is the installation area safe for workers

If the roof already has leakage or structural issues, fix those problems before installing solar panels.

Best Roof Types for Solar Panel Installation

Most roof types can support solar panels, but the mounting method changes according to roof material.

RCC Roofs

RCC roofs are very common in Pakistan. They are suitable for solar installation because the structure is usually strong and open.

For RCC roofs, installers may use:

  • Concrete blocks

  • Galvanized iron frame

  • Adjustable tilt structure

  • Fixed mounting frame

  • Raised structure for better airflow

RCC roofs are practical for homes in Karachi, Lahore, Islamabad and other major cities because they allow flexible panel placement.

Metal Roofs

Metal roofs are also suitable for solar installation. In many cases, solar panels can be mounted with less drilling compared to other roof types.

Metal roof installation needs:

  • Correct clamps

  • Rust resistant hardware

  • Proper load distribution

  • Careful sealing where required

  • Strong wind resistance planning

Metal roofs can heat up quickly, so airflow below panels is important.

Tile Roofs

Tile roofs can support solar panels, but they need extra care. Tiles can break if installers step on them incorrectly or apply pressure in the wrong area.

For tile roofs, installers may need to:

  • Remove selected tiles

  • Install anchors under the tile layer

  • Replace weak or broken tiles

  • Use proper flashing

  • Avoid direct pressure on fragile tiles

Tile roofs should always be handled by experienced installers.

Flat Roofs

Flat roofs need tilted structures because panels should not lie completely flat. The tilt helps improve sunlight exposure and allows rainwater to drain.

For flat roofs, installers should check:

  • Wind resistance

  • Drainage path

  • Roof waterproofing

  • Proper panel tilt

  • Distance between panel rows

  • Maintenance access

Flat roofs are common in Pakistan and can work very well when the structure is planned properly.

Best Direction and Angle for Solar Panels in Pakistan

In Pakistan, south facing panels generally produce the best output because they receive more sunlight throughout the day.

The recommended tilt angle is usually around 25 to 35 degrees, depending on city, roof design and system goal.

A good installer will check:

  • Sun path

  • Roof direction

  • Seasonal sunlight

  • Shade pattern

  • Panel row spacing

  • Available roof area

A wrong angle does not mean the system will stop working, but it can reduce daily and monthly generation.

Avoid Shade Before You Install

Shade is one of the biggest reasons solar systems underperform.

Even partial shade from a small object can reduce panel output, especially if system design is not planned properly.

Common shade sources include:

  • Water tanks

  • Boundary walls

  • Trees

  • Nearby buildings

  • Satellite dishes

  • Exhaust pipes

  • Lift rooms

  • Overhead wires

Before installation, check the roof at different times of the day. Morning shade and evening shade both matter.

A professional installer can suggest panel placement to reduce shade loss.

Tools and Materials Used for Roof Mounting

The exact tools depend on roof type and system size, but most rooftop solar installations need proper mounting and safety equipment.

Common mounting materials include:

  • Solar mounting rails

  • Roof anchors

  • Clamps

  • Bolts

  • Fasteners

  • Flashing

  • Waterproof sealant

  • Galvanized iron frame

  • Cable ties

  • Cable clips

  • Earthing accessories

  • Common tools include:

  • Measuring tape

  • Drill machine

  • Spanner set

  • Torque wrench

  • Marker

  • Level tool

  • Ladder

  • Cable cutter

  • Crimping tool

  • Safety harness

  • Gloves

  • Helmet

  • Non slip shoes

Never compromise on safety gear. A rooftop installation is not worth the risk without proper protection.

Step by Step Guide to Mount Solar Panels on Roof

The actual installation should be handled by trained professionals, but homeowners should understand the process. This helps you check whether the job is being done correctly.

Step 1: Inspect the Roof

The installer first checks the roof condition, available space and sunlight exposure.

This includes:

  • Roof strength

  • Leakage spots

  • Cracks

  • Shade areas

  • Water tank position

  • Cable route

  • Inverter location

  • Access for maintenance

If the roof is weak or leaking, it should be repaired before solar installation.

Step 2: Plan Panel Layout

The next step is deciding where panels will be placed.

A good layout should:

  • Avoid shade

  • Use roof space efficiently

  • Keep panels accessible for cleaning

  • Allow airflow under panels

  • Leave walking space where possible

  • Keep wiring route short and safe

  • Match inverter string design

This step is important because a poor layout can reduce solar generation even if good panels are used.

Step 3: Mark Mounting Points

After layout planning, the installer marks the mounting points on the roof.

For RCC roofs, this may include marking frame positions or concrete block placement.

For sloped roofs, it may include locating rafters or strong support areas.

Correct marking helps the structure stay aligned and stable.

Step 4: Install Anchors or Mounting Frame

This is one of the most important steps.

The mounting frame or anchors hold the full weight of the panels. They also protect the system during wind and rain.

A good mounting setup should be:

  • Strong

  • Rust resistant

  • Properly aligned

  • Securely fixed

  • Suitable for roof type

  • Designed for local wind conditions

If drilling is required, waterproofing must be done properly around every penetration.

Step 5: Add Waterproofing and Flashing

Waterproofing is critical wherever mounting points enter the roof surface.

Poor sealing can cause roof leaks during rain.

Good waterproofing includes:

  • Correct flashing

  • Proper sealant

  • Clean surface preparation

  • No open gaps

  • Careful inspection after tightening

  • Final water leakage check where needed

Do not rely only on cheap sealant. Proper flashing and sealing are important for long term roof protection.

Step 6: Attach Mounting Rails

Mounting rails are fixed on top of the anchors or frame.

The rails should be straight, level and properly spaced according to panel size.

Installers should check:

  • Rail alignment

  • Rail spacing

  • Bolt tightness

  • Frame stability

  • Clearance under panels

  • Panel row distance

If rails are uneven, panels may not sit properly and clamps may not hold them securely.

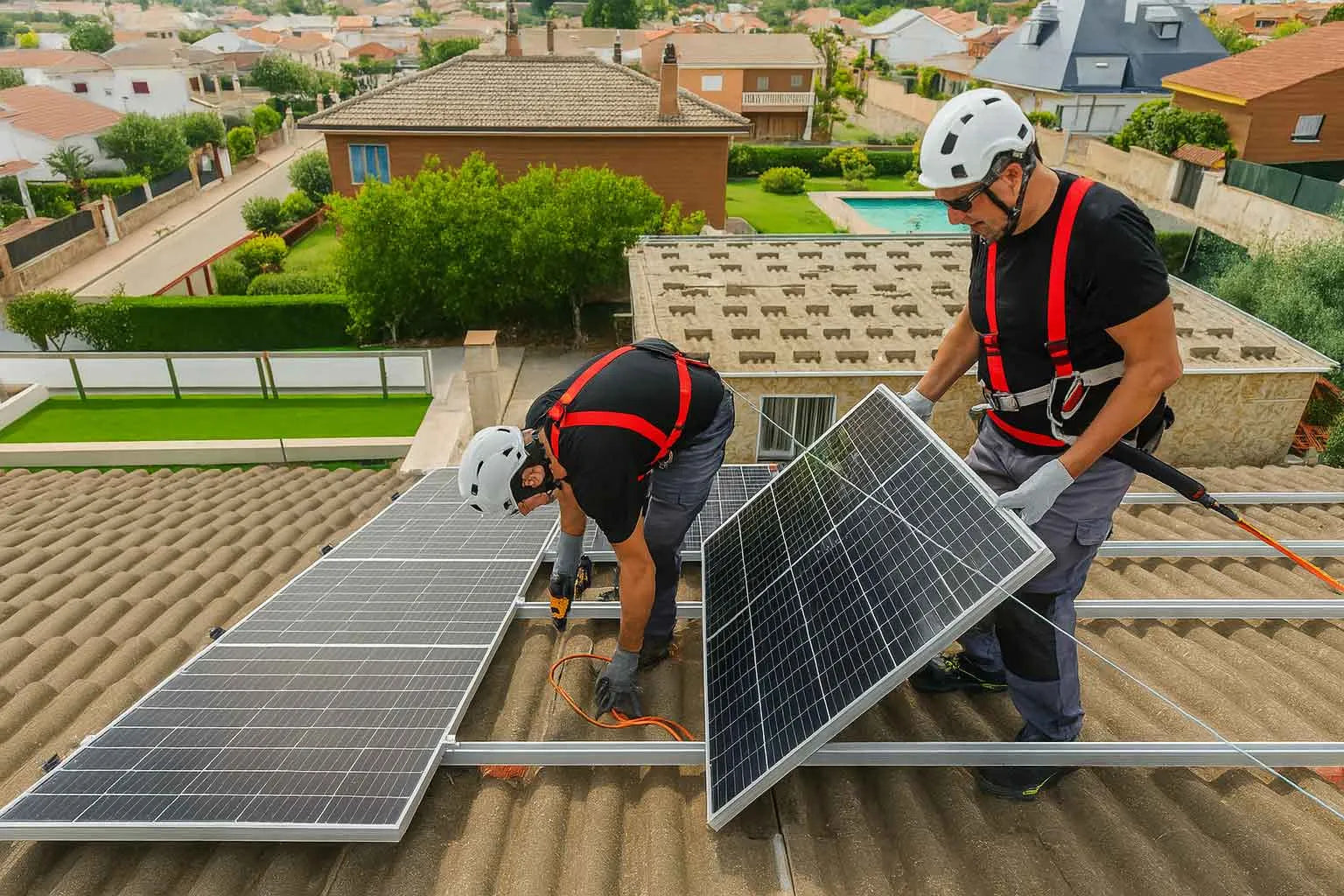

Step 7: Place Solar Panels on Rails

After the rails are ready, panels are carefully placed on the structure.

This step requires careful handling because solar panels can crack if dropped or placed under pressure.

Installers should:

  • Lift panels safely

  • Avoid stepping on panels

  • Keep glass surface protected

  • Align panels properly

  • Maintain correct spacing

  • Use correct clamps

  • Avoid overtightening

Panel clamps should be tight enough to hold the panel securely but not so tight that they damage the frame.

Step 8: Connect Solar Wiring

After physical mounting, electrical wiring begins.

Solar panels are connected according to system design. The wiring may be arranged in series, parallel or a combination depending on inverter requirements.

Good cable work should include:

  • Correct cable size

  • Secure MC4 connectors

  • Neat cable routing

  • No loose wires

  • No cable contact with sharp edges

  • UV resistant cable ties

  • Safe DC path to inverter

  • Proper earthing

Electrical wiring should always be handled by trained people because solar DC power can be dangerous.

Step 9: Connect the Inverter and Protection Devices

The inverter converts solar power into usable electricity for the home or business.

The installer also connects protection devices such as breakers, isolators and surge protection depending on system design.

This stage should be done carefully because wrong wiring can damage equipment or create safety risks.

A proper setup should include:

  • Safe inverter placement

  • Ventilation around inverter

  • Correct DC input

  • Correct AC output

  • Proper earthing

  • Protection devices

  • Clear labeling

  • Secure cable management

Step 10: Final Testing and Inspection

Before the system starts operating, the installer checks everything.

Final inspection should include:

  • Panel alignment

  • Clamp tightness

  • Frame stability

  • Waterproofing points

  • Cable connections

  • Inverter readings

  • Earthing

  • Voltage testing

  • System output

  • Safety shutdown process

A good installer does not leave immediately after mounting panels. The system should be tested and explained to the homeowner.

Can You Mount Solar Panels Yourself

DIY solar mounting is possible for small setups, but it is not recommended for most homeowners.

DIY may look cheaper at first, but mistakes can become expensive.

DIY risks include:

  • Falling from the roof

  • Roof leakage

  • Wrong panel angle

  • Loose mounting

  • Electrical shock

  • Poor wiring

  • Inverter damage

  • Warranty issues

  • Low power output

If you are installing a small portable panel or RV panel, DIY may be manageable. For home rooftop solar, professional installation is usually safer and more reliable.

Professional Installation vs DIY Installation

Professional installation is better for most homes because trained installers understand roof safety, mounting methods and electrical standards.

Professional installation gives:

  • Better roof assessment

  • Safer mounting

  • Proper waterproofing

  • Correct wiring

  • Better system output

  • Warranty support

  • Faster installation

  • Lower long term risk

DIY installation may save labor cost, but it can create roof damage, safety hazards and performance issues if done incorrectly.

For a home or commercial solar system, professional installation is the smarter choice.

Mounting Solar Panels on an RV Roof

RV solar installation is different from home rooftop solar because the roof is lighter and the vehicle moves.

RV solar panels are usually installed for battery charging, travel use and small appliances.

Common RV mounting options include:

  • Z brackets

  • Adhesive mounts

  • Lightweight rails

  • Flexible panels

  • Rigid panels

Flexible panels are lighter and easier to place, but rigid panels usually offer better durability and efficiency.

For RV roofs, weight, vibration and waterproofing are very important.

Common Mistakes to Avoid

Many rooftop solar problems happen because of poor installation, not because of bad solar panels.

Avoid these mistakes:

  • Installing panels on a damaged roof

  • Ignoring shade from water tanks or trees

  • Using weak mounting frames

  • Skipping waterproofing

  • Using low quality bolts and clamps

  • Placing panels too close without airflow

  • Leaving wires loose on the roof

  • Installing inverter in direct sunlight

  • Not checking earthing

  • Overloading the inverter

  • Ignoring maintenance access

  • Choosing DIY for a full home system without experience

A solar system should be installed for long term performance, not just quick setup.

Maintenance After Roof Installation

After installation, rooftop solar panels need basic care.

Maintenance is not difficult, but it should not be ignored.

Important maintenance tips include:

  • Clean panels regularly

  • Remove dust and bird droppings

  • Check for shade from growing trees

  • Inspect mounting bolts after storms

  • Check wiring for damage

  • Keep inverter area ventilated

  • Monitor daily generation

  • Call professionals if output drops suddenly

  • Schedule periodic inspection

In dusty cities, cleaning may be needed more often. In coastal areas like Karachi, structure and metal parts should also be checked for corrosion.

How Roof Mounting Affects Solar Output

Panel mounting directly affects solar performance.

A well mounted system can improve output because panels receive better sunlight and remain cooler due to airflow.

Poor mounting can reduce performance because of:

  • Wrong direction

  • Bad tilt angle

  • Shade

  • Poor airflow

  • Loose wiring

  • Dust buildup

  • Water standing near structure

  • Inverter overheating

Solar output is not only about panel brand. Installation quality is equally important.

How Much Does Roof Mounting Cost

Roof mounting cost depends on system size, roof type, structure quality and installation complexity.

The cost may increase if:

  • Roof height is high

  • Structure needs extra strength

  • Roof needs repair

  • Cable route is long

  • There is difficult access

  • Special tilt structure is required

  • Waterproofing work is complex

For larger systems, mounting structure becomes a major part of the total solar cost.

A cheaper structure may save money at the start, but it can create problems later. Strong structure and proper installation are worth the investment.

Why Buy Solar Products from Powerhouse Express

Powerhouse Express offers solar panels, solar inverters, batteries, solar mounting structures and related electrical accessories for buyers in Pakistan.

If you are planning a rooftop solar setup, Powerhouse Express can help you choose products according to your system size, roof type, budget and backup requirement.

Powerhouse Express is useful for homeowners and businesses who need:

  • Solar panels

  • Solar inverters

  • Solar batteries

  • Mounting structures

  • Electrical accessories

  • Product guidance

  • Installation support when buying from Powerhouse Express

  • Nationwide product availability

If you are not sure which system or mounting solution is right for your roof, the Powerhouse Express team can guide you before purchase.

Final Verdict

Mounting solar panels on a roof is not just about fixing panels on metal rails. It is a complete process that includes roof inspection, layout planning, strong structure, waterproofing, wiring, inverter connection and final testing.

A good installation can improve solar output and protect your roof for years. A poor installation can cause leaks, low generation, loose panels and safety problems.

For small portable or RV systems, DIY may be possible. For home and commercial rooftop solar, professional installation is usually the better choice.

If you are planning a rooftop solar system in Pakistan, choose quality panels, a reliable inverter, strong mounting structure and proper installation support.

For solar products, mounting structures or installation guidance, contact Powerhouse Express.

Call us at:

+92 3222880021

+92 3202614671

+92 21 111 081 081

Frequently Asked Questions

Can I mount solar panels on any roof

Most roof types can support solar panels, including RCC, metal, tile and flat roofs. The roof should be strong, safe and free from serious leakage or structural damage.

What is the best direction for solar panels in Pakistan

South facing panels usually give the best output in Pakistan because they receive more sunlight during the day.

What is the best angle for solar panels in Pakistan

The recommended angle is usually around 25 to 35 degrees, depending on city, roof type and system design.

Do solar panels damage the roof

Properly installed solar panels should not damage the roof. Roof leaks usually happen because of poor drilling, weak sealing or bad waterproofing.

Can I install solar panels without drilling

Some flat roof and RV systems can use ballast or adhesive mounting methods. For many home rooftop systems, secure fixing may require drilling or proper structural anchoring.

How long does rooftop solar installation take

Most home rooftop installations can take one to three days depending on system size, roof condition and electrical work.

Can I mount solar panels myself

DIY mounting is possible for small portable or RV systems. For home solar systems, professional installation is safer because it involves roof work, wiring and inverter connection.

How much roof space is needed for solar panels

Roof space depends on system size and panel wattage. A small system may need limited space, while larger systems need more open, shade free roof area.

Do solar panels work during rain

Solar panels can still produce some electricity during cloudy or rainy weather, but output is lower because sunlight is reduced.

How often should rooftop solar panels be cleaned

Cleaning depends on dust, weather and location. In dusty areas, panels may need cleaning every few weeks for better performance.
