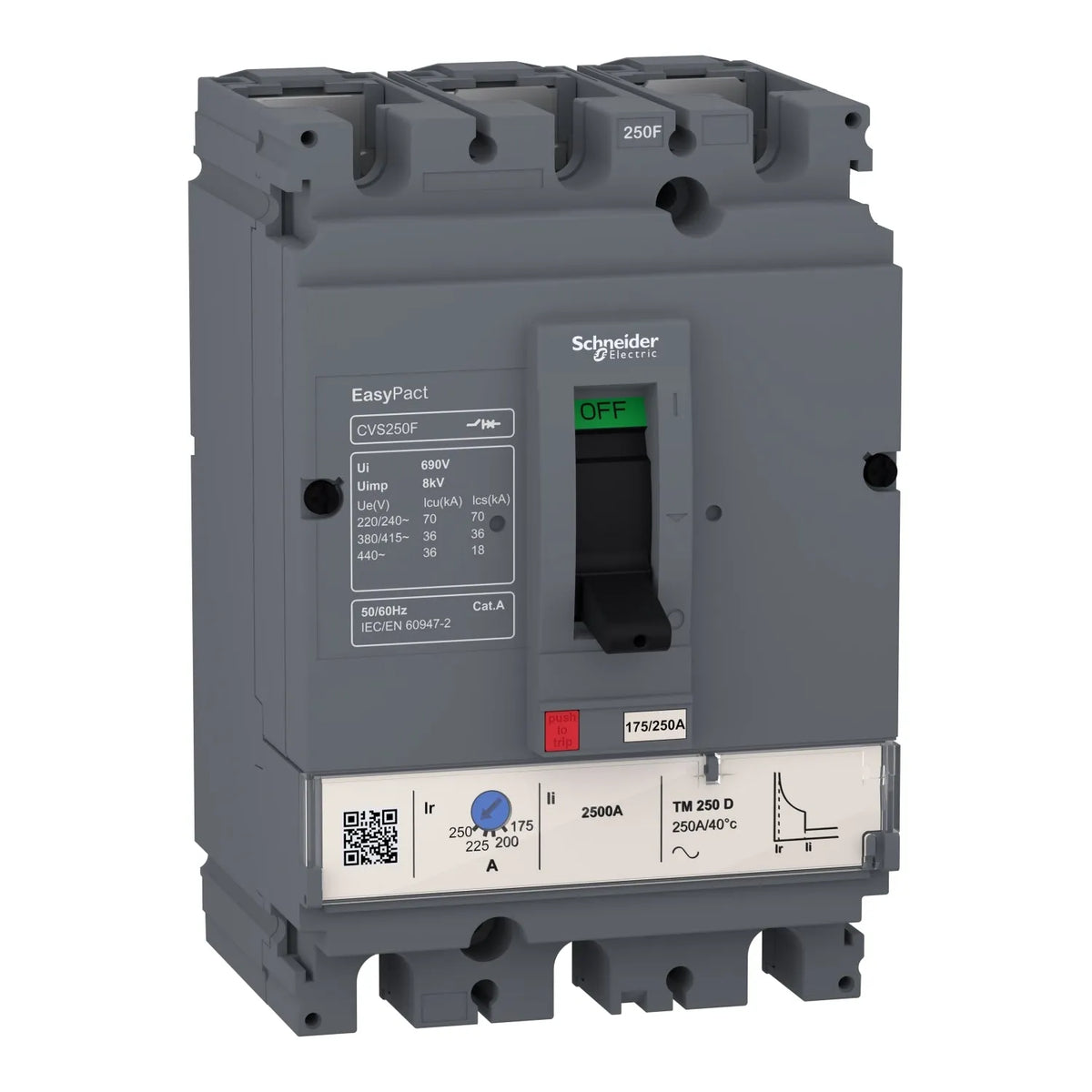

Schneider CVS250F 3 Pole Molded Case Circuit Breaker 36 kA
Availability: In Stock

Schneider CVS250F 3 Pole Molded Case Circuit Breaker 36 kA

Product SKU: LV525332
Rs.65,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range EasyPact
Product name EasyPact CVS
Device short name CVS250F
Product or component type Circuit breaker
Device application Distribution
Poles description 3P
Protected poles description 3D
Earth leakage protection (Vigi add-on) Without
Rated current [In] 200 A, 250A at 40 °C
Network type AC
Weight 2 kg
utilization category Category A
Breaking capacity [Icu] 36KA
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Protection type Short-circuit protection (magnetic) / Overload protection (thermal)
Network frequency 50/60 Hz
Breaking capacity code F
Mechanical durability 20000 cycles
Electrical durability 10000 cycles 415 V In conforming to IEC 60947-2
control type Toggle
Thermal protection adjustment Range 140…200 A
Long-time pick-up adjustment type Ir Adjustable
long-time pick-up adjustment range 0.7...1 x In
Long-time delay adjustment type Fixed
instantaneous pick-up adjustment type Ii Fixed
instantaneous pick-up adjustment Range 2000 A
Contact position indicator Yes
Mounting mode Fixed
mounting support Backplate
Upside connection Front
downside connection Front
Standards IEC 60947-2 / EN 60947-2
Electrical shock protection class Class II
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Schneider CVS250F 3 Pole Molded Case Circuit Breaker 36 kA

EasyPact CVS250F is a 3-pole 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized building protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 200A,250A rating thermal-magnetic trip unit (TMD). TMD trip unit provides adjustable thermal overload protection and fixed magnetic protection. This 3-pole version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front-face device (IEC 60664-1).
