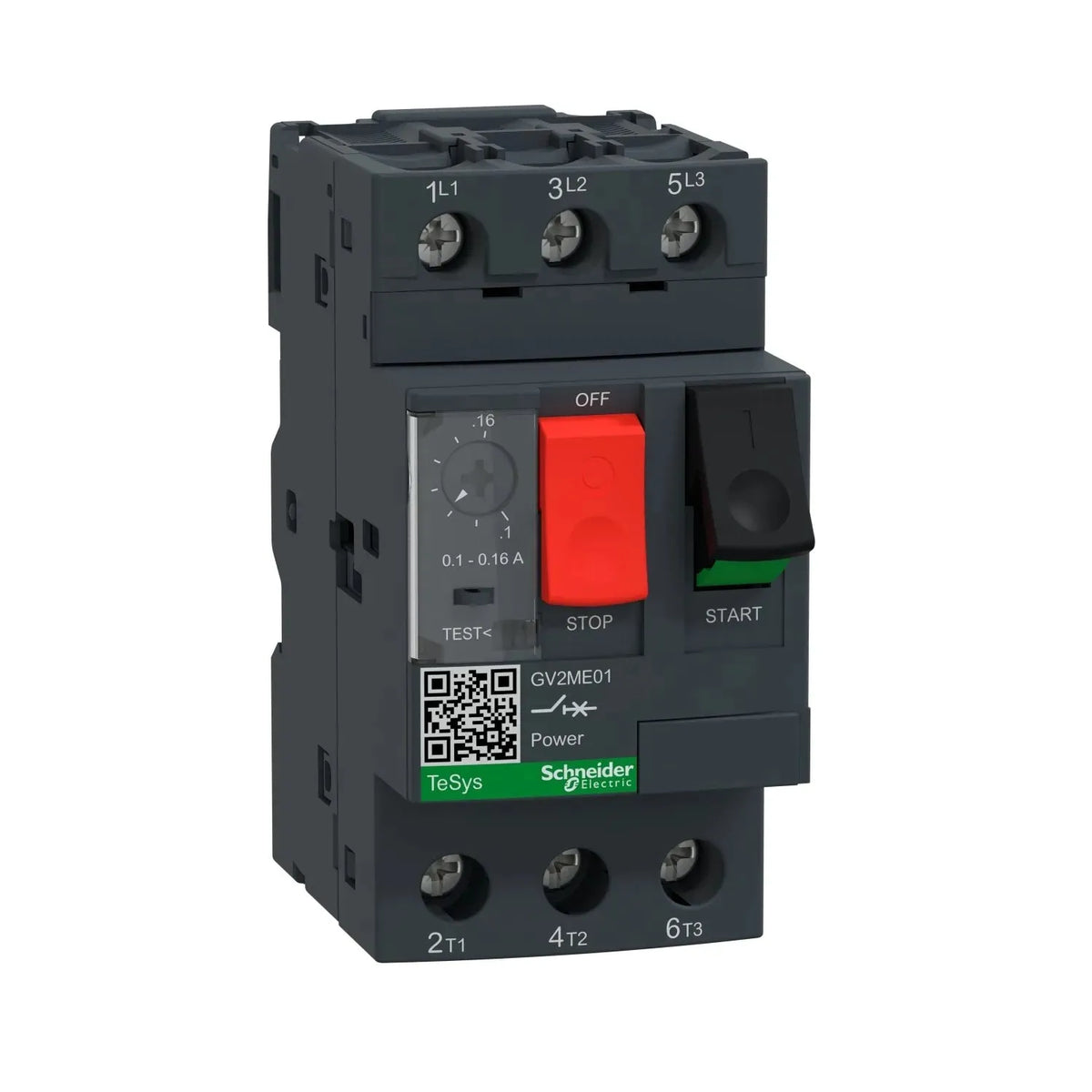

Schneider GV2ME01 3 Pole 0.16 A Motor Protection Circuit Breaker
Product SKU:
GV2ME01
Rs.22,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Range
TeSys Deca
Product name
TeSys GV2 / TeSys Deca
Product or component type
Motor circuit breaker
Net weight
0.26 kg
Device short name
GV2ME
Device application
Motor protection
Trip unit technology
Thermal-magnetic
Poles description
3P
Network type
AC
Utilisation category
Category A conforming to IEC 60947-2
Network frequency
50/60 Hz conforming to IEC 60947-4-1
35 mm symmetrical DIN rail
clipped
Panel
screwed (with adaptor plate)
Breaking capacity
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
control type
Push-button
Rated Current [In]
0.16 A
Thermal Protection Adjustment Range
0.1…0.16 A conforming to IEC 60947-4-1
Magnetic tripping current
1.5 A
Conventional free air thermal current [Ith]
0.16 A conforming to IEC 60947-4-1
Rated operational voltage [Ue]
690 V AC 50/60 Hz conforming to IEC 60947-2
Rated insulation voltage [Ui]
690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage [Uimp]
6 kV conforming to IEC 60947-2
Phase failure sensitivity
Yes conforming to IEC 60947-4-1
Suitability for isolation
Yes conforming to IEC 60947-1 § 7-1-6
Power dissipation per pole
2.5 W
Mechanical durability
100000 cycles
Electrical durability
100000 cycles for AC-3 at 415 V In / 100000 cycles for AC-3e at 415 V In
Standards
EN/IEC 60947-2 / EN/IEC 60947-4-1
IK degree of protection
IK04
IP degree of protection
IP20 conforming to IEC 60529
Climatic withstand
Conforming to IACS E10
Ambient Air Temperature for Storage
-40…80 °C
Fire Resistance
960 °C conforming to IEC 60695-2-11
Ambient Air Temperature for Operation
-20…60 °C
Operating altitude
2000m
Key Features
Range: TeSys Deca
Product name: TeSys GV2 / TeSys Deca
Net weight: 0.26 kg
Device short name: GV2ME
Component type: Motor circuit breaker
Device application: Motor protection
Poles description: 3P
Rated current [In]: 0.16 A
Network type: AC
Utilisation category: Category A conforming to IEC 60947-2
