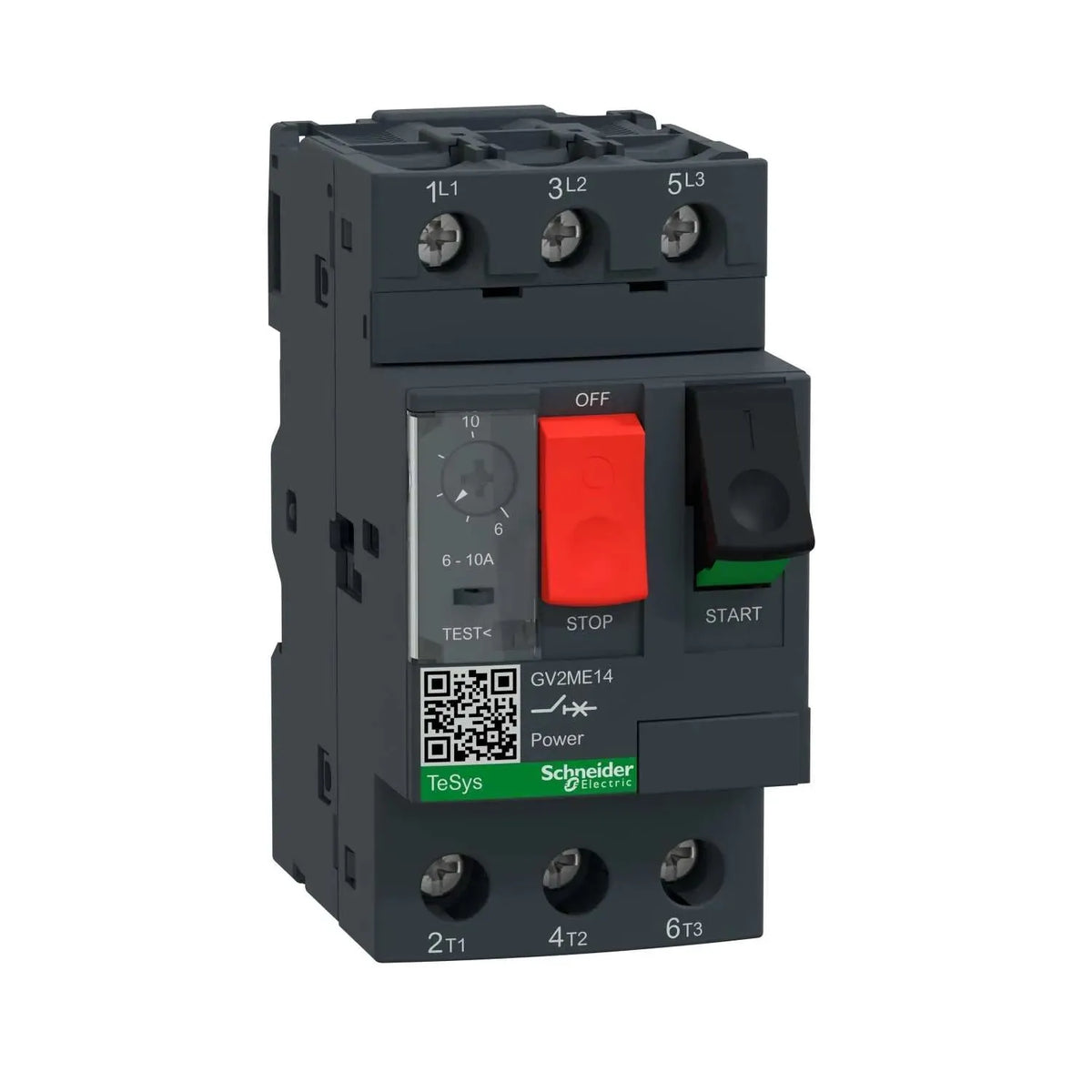

Schneider GV2ME14 3 Pole 6-10A Motor Protection Circuit Breaker
Availability: In Stock

Schneider GV2ME14 3 Pole 6-10A Motor Protection Circuit Breaker

Product SKU: GV2ME14
Rs.17,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range TeSys Deca
Product name TeSys GV2 / TeSys Deca
Product or component type Motor circuit breaker
Net weight 0.26 kg
Device short name GV2ME
Device application Motor protection
Trip unit technology Thermal-magnetic
Poles description 3P
Network type AC
Utilisation category Category A conforming to IEC 60947-2
Network frequency 50/60 Hz conforming to IEC 60947-4-1
35 mm symmetrical DIN rail clipped
Panel screwed (with adaptor plate)
Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Control type Push-button
Rated Current [In] 10 A
Thermal Protection Adjustment 46…10 A conforming to IEC 60947-4-1
Magnetic tripping current 138 A
Conventional free air thermal current [Ith] 10 A conforming to IEC 60947-4-1
Rated operational voltage [Ue] 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated insulation voltage [Ui] 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage [Uimp] 6 kV conforming to IEC 60947-2
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Suitability for isolation Yes conforming to IEC 60947-1 § 7-1-6
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles for AC-3 at 415 V In / 100000 cycles for AC-3e at 415 V In
Standards EN/IEC 60947-2 / EN/IEC 60947-4-1
IK degree of protection IK04
IP degree of protection IP20 conforming to IEC 60529
Climatic withstand Conforming to IACS E10
Ambient Air Temperature for Storage -40…80 °C
Fire Resistance 960 °C conforming to IEC 60695-2-11
Ambient Air Temperature for Operation -20…60 °C
Operating altitude 2000m

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider GV2ME14 3 Pole 6-10A Motor Protection Circuit Breaker


TeSys GV motor circuit breaker, 3 poles (3P), 10A/690V, for 3-phase motor applications 3-4kW@400V. It provides a thermal-magnetic protection with a thermal setting range 6-10A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
