Availability:
In Stock

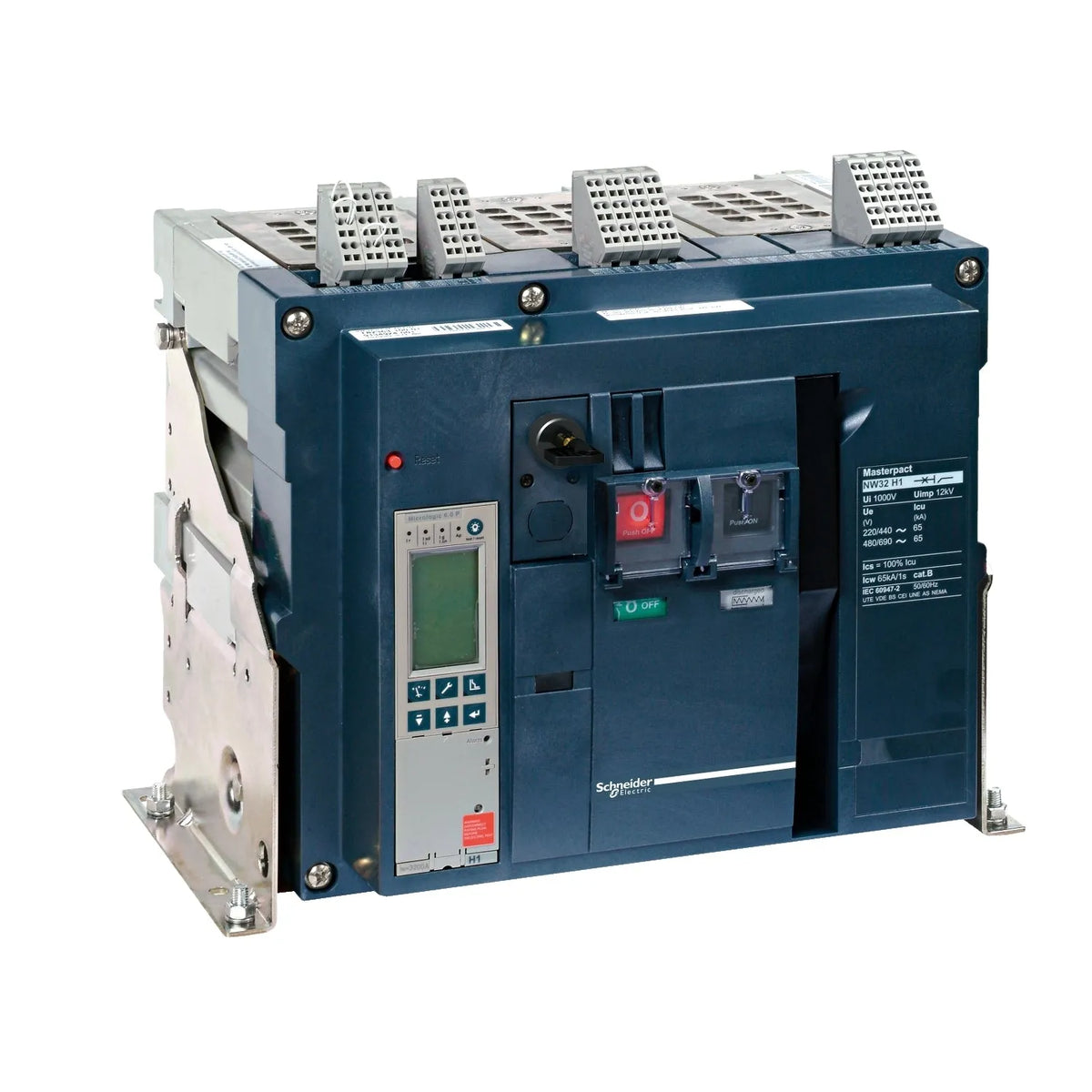

Schneider MasterPact NW10H1 3 Pole 1000A Air Circuit Breaker
Product SKU:
48015
Rs.990,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Range
MasterPacT
Product name
MasterPact NW
Net weight
50 kg
circuit breaker name
MasterPact NW08H 1
Product or component type
Circuit breaker
Device application
Power distribution protection
Poles description
3P
Control unit
Without control unit
Rated current [In]
1000A, at 40 oc
Performance type
HI 65 kA 440 V AC
Rated operational voltage [Uel]
690 V AC 50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Selectivity category
Category B
control type
Push-button
Mounting mode
Fixed
Rated ultimate short-circuit breaking capacity [Icu]
65 kA
Rated short-time withstand current [Icw]
65 kA 1 s / 36 kA 3 s
Sensor rating
400A, 1000A
Rated insulation voltage [Ui]
1000 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]
12 kV
Mechanical durability
12500 cycles without maintenance / 25000 cycles with maintenance
Standards
EN/IEC 60947-1 / EN/IEC 60947-2
IP degree Of protection
IP30 conforming to IEC 60529
Pollution degree: 4 conforming to IEC 60664-1
Ambient air temperature for operation
-25.. 70 c
Ambient air temperature for storage
-40...85 c
Operating altitude
0.-.2000 m without derating / 2000 m...5000 m with derating
Key Features
High power motor
Higher work efficiency
Product Details
Reviews
Shipping & Returns
Schneider MasterPact NW10H1 3 Pole 1000A Air Circuit Breaker
The MasterPact NW10H1 series offers versatile circuit breaker frames to meet varying current requirements. Choose from three options with current ratings of 1000A. Each frame features a robust 3-pole fixed design, ensuring reliable electrical protection. With an impressive interrupting capacity of 65kA at 440VAC 50/60Hz (Icu), these circuit breaker frames are well-suited for demanding industrial applications. Notably, the frames come without a control unit, providing flexibility for integration into systems with external controls. Select the appropriate current rating to meet the specific needs of your electrical protection system.
Looking to purchase Schneider MasterPact NW10H1 3 Pole 1000A Air Circuit Breaker in bulk?
- Purchase Item in Bulk Quantity
- Get At Best Price For Your Business
Bulk Enquiry
No reviews yet. Be the first to review this product.
Shipping
We ship across Pakistan. Standard delivery takes 3–7 business days.
Returns
Easy 7-day return policy. Product must be unused and in original packaging.
