Schneider NSX400H 3P TMD Circuit Breaker 50 KA Price in Pakistan
  • Schneider NSX400H 3P TMD Circuit Breaker 50 KA Price in Pakistan

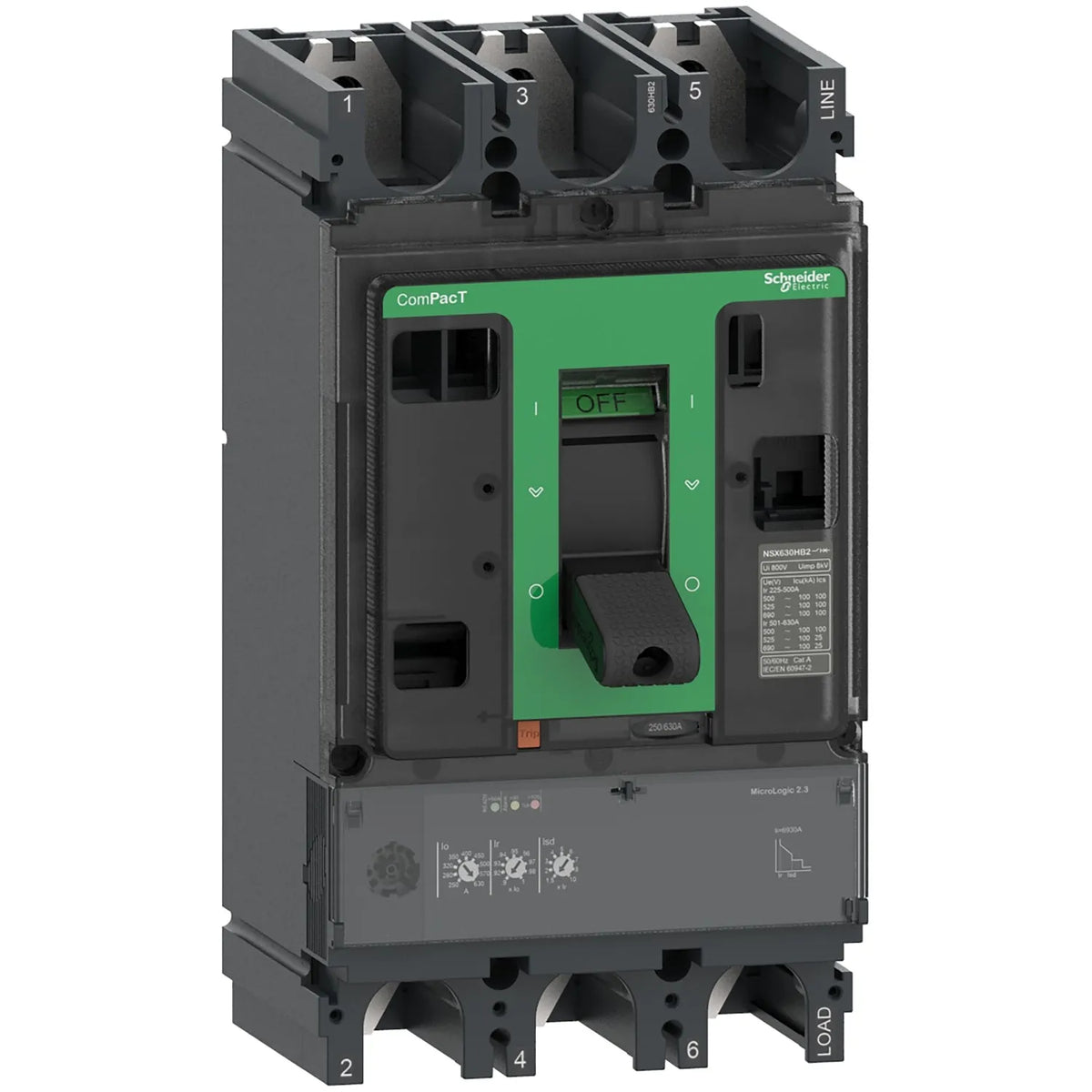

Schneider NSX400H 3 Pole 400A Molded Case Circuit Breaker, 70 kA
Availability: In Stock

Schneider NSX400H 3 Pole 400A Molded Case Circuit Breaker, 70 kA

Product SKU: C40H32D400
Rs.250,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range ComPacT new generation
device short name NSX400H
Product or component type Circuit breaker
Device application Distribution
Poles description 3p
Protected poles description 3D
[In] rated current 400 A at 40 oc
[Uel rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
utilisation category Category A
[Icu] rated ultimate short-circuit breaking capacity 70 kA
Trip unit name MicroLogic 2.3
Trip unit technology Electronic
Trip unit protection functions LSol
control type Toggle
Circuit breaker mounting mode Fixed
[Ui] rated insulation voltage 800 V AC 50/60 Hz
[UimpJ rated impulse withstand voltage
Mechanical durability 15000 cycles
Electrical durability 12000 cycles at440 V In/2 / 6000 cycles at 440 V In / 6000 cycles at 690 V In/2 / 3000 cycles at 690 V In
weight 6.05 kg
standards EN/IEC 60947
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
1K degree Of protection IK07 conforming to IEC 62262 Ambient air temperature for operation: -25...70 c
Ambient air temperature for storage -50...85 c
Relative humidity 0...95 0/0
Operating altitude 0...2000 m without derating / 2000 m...5000 m with derating

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider NSX400H 3 Pole 400A Molded Case Circuit Breaker, 70 kA



This ComPacT NSX400H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with a 400A rating. MicroLogic 2.3 trip unit provides adjustable long-time and short-time protections and fixed instantaneous protection. This 3-pole version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX400H is part of Schneider Electric EcoStruxure Power architecture.

Schneider NSX400H 3P TMD Circuit Breaker 50 KA Price in Pakistan
Schneider NSX400H 3 Pole 400A Molded Case Circuit Breaker, 70 kA
Looking to purchase Schneider NSX400H 3 Pole 400A Molded Case Circuit Breaker, 70 kA in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
