Availability:
In Stock

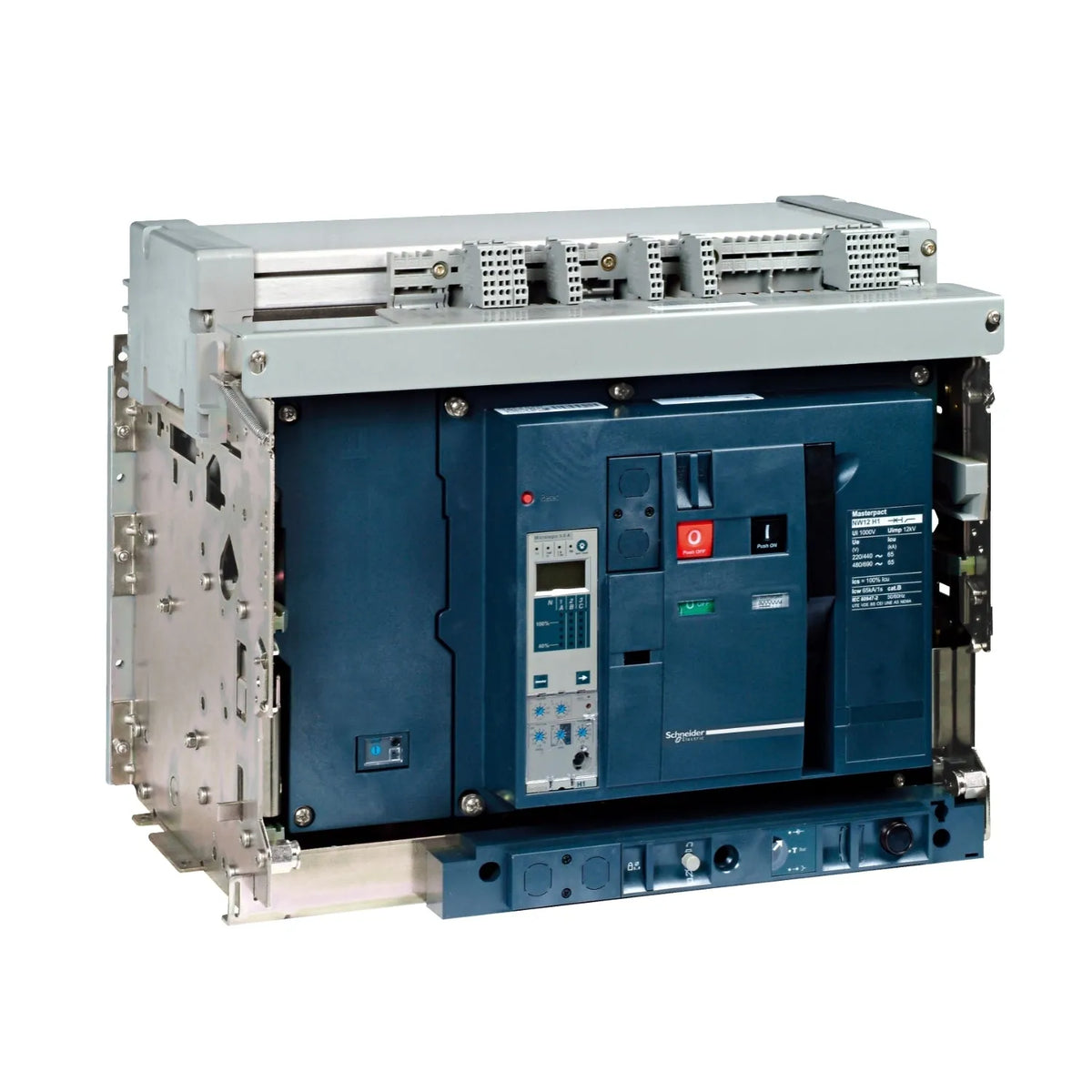

Schneider MasterPact NW10H2 4 Pole 1000A Air Circuit Breaker
Product SKU:
48023
Rs.1,800,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Range
MasterPacT
Product name
MasterPact NW
Circuit breaker name
MasterPact NW10H2
Product or component type
Circuit breaker
Device application
Power distribution protection
Poles description
4P
Neutral position
Left
Control unit
Without control unit
Rated current [In]
1000 A at 40 °C
Performance type
H2 100 kA 440 V AC
Rated operational voltage [Ue]
690 V AC 50/60 Hz
Suitability for isolation
Yes
Selectivity category
Category B
Control type
Push-button
Mounting mode
Fixed
Rated ultimate short-circuit breaking capacity [Icu]
00 kA at 220/415 V AC 50/60 Hz / 100 kA at 440 V AC 50/60 Hz
Rated short-time withstand current [Icw]
85 kA 1 s / 50 kA 3 s
Rated short-circuit making capacity [Icm]
220 kA 220/415 V AC at 50/60 Hz / 187 kA 440 V AC at 50/60 Hz / 187 kA 525 V AC at 50/60 Hz / 187 kA 690 V AC at 50/60 Hz
Integrated instantaneous protection (DIN in kA peak)
171…209 kA
Sensor rating
400 A / 1000 A
Rated insulation voltage [Ui]
1000 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]
12 kV
Power dissipation in W
70 W
Maximum breaking time
25 ms
maximum closing response time
70 ms
mounting support
Backplate/Rails
Upside connection
Front/Rear
downside connection
Front/Rear
IP degree of protection
IP30 conforming to IEC 60529
Pollution degree
4 conforming to IEC 60664-1
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Operating altitude
0...2000 m without derating / 2000 m...5000 m with derating
Key Features
Range: MasterPacT
Product name: MasterPact NW
Net weight: 65 kg
Circuit breaker name: MasterPact NW10H2
Product or component type: Circuit breaker
Device application: Power distribution protection
Poles description: 4P
Neutral position: Left
Control unit: Without control unit
Selectivity category: Category B
Control type: Push-button
Mounting mode: Fixed
Product Details
Reviews
Shipping & Returns
User Manual
Schneider MasterPact NW10H2 4 Pole 1000A Air Circuit Breaker
The Schneider MasterPact NW10H2 is a formidable 1000A, 4-pole air circuit breaker designed for industrial applications. With a four-pole configuration, it provides comprehensive electrical protection across multiple phases. Known for its reliability and efficiency, this circuit breaker is a robust solution for safeguarding electrical systems in demanding environments.
Looking to purchase Schneider MasterPact NW10H2 4 Pole 1000A Air Circuit Breaker in bulk?
- Purchase Item in Bulk Quantity
- Get At Best Price For Your Business
Bulk Enquiry
No reviews yet. Be the first to review this product.
Shipping
We ship across Pakistan. Standard delivery takes 3–7 business days.
Returns
Easy 7-day return policy. Product must be unused and in original packaging.
Download User Manual
Click here to download PDF
