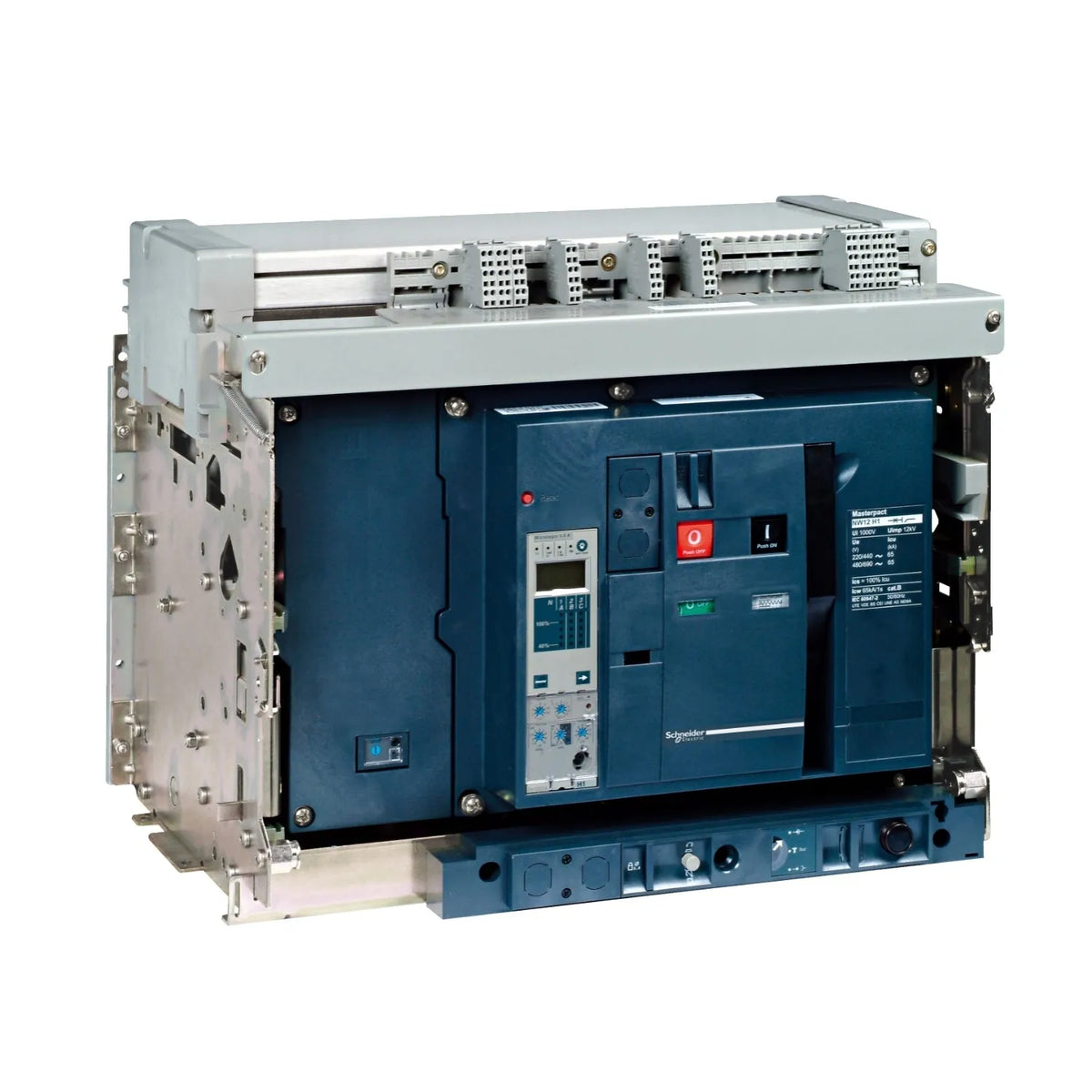

Schneider MasterPact NW20H2 4 Pole 2000A Air Circuit Breaker
Product SKU:
48065
Rs.2,200,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Range
MasterPacT
Product name
MasterPact NW
circuit breaker name
MasterPact NW20H2
Product or component type
Circuit breaker
Device application
Power distribution protection
Net Weight
65 kg
Poles description
4P
Neutral position
Left
Control unit
Without control unit
Rated current [In]
2000 A at 40 °C
Performance type
H2 100 kA 440 V AC
Rated operational voltage [Ue]
690 V AC 50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Selectivity category
Category B
control type
Push-button
Mounting mode
Fixed
Rated ultimate short-circuit breaking capacity [Icu]
100 kA at 220/415 V AC 50/60 Hz / 100 kA at 440 V AC 50/60 Hz / 85 kA at 525 V AC 50/60 Hz / 85 kA at 690 V AC 50/60 Hz
Rated service breaking capacity [Ics]
100 kA at 220/415 V AC 50/60 Hz / 100 kA at 440 V AC 50/60 Hz / 85 kA at 525 V AC 50/60 Hz / 85 kA at 690 V AC 50/60 Hz
Rated short-time withstand current [Icw]
85 kA 1 s / 75 kA 3 s
Rated short-circuit making capacity [Icm]
220 kA 220/415 V AC at 50/60 Hz / 187 kA 440 V AC at 50/60 Hz / 187 kA 525 V AC at 50/60 Hz / 187 kA 690 V AC at 50/60 Hz
Integrated instantaneous protection (DIN in kA peak)
171…209 kA
Sensor rating
1000 A / 2000 A
Rated insulation voltage [Ui]
1000 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]
12 kV
Power dissipation in W
250 W
Maximum breaking time
25 ms
maximum closing response time
70 ms
mounting support
Backplate / Rails
Upside connection
Front / Rear
downside connection
Front / Rear
Connection pitch
115 mm
Mechanical durability
10000 cycles without maintenance / 20000 cycles with maintenance
IP degree of protection
IP30 conforming to IEC 60529
Pollution degree
4 conforming to IEC 60664-1
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Operating altitude
0...2000 m without derating / 2000 m...5000 m with derating
Key Features
High power motor
Higher work efficiency
Product Details
Reviews
Shipping & Returns
Schneider MasterPact NW20H2 4 Pole 2000A Air Circuit Breaker
Schneider MasterPact NW20H2 is a robust 4-pole air circuit breaker engineered for exceptional electrical circuit protection. Boasting a substantial rated current of 2000A, this breaker is well-suited for demanding applications, providing reliable defense against overloads and short circuits. Its state-of-the-art design incorporates advanced technology to deliver high-performance capabilities, ensuring the safety and efficiency of electrical systems. The NW20H2 is a versatile solution suitable for a range of industrial and commercial settings, offering a combination of substantial current-carrying capacity and precise circuit interruption. As part of Schneider's renowned MasterPact series, the NW20H2 exemplifies durability and innovation in the realm of electrical distribution, making it a dependable choice for critical applications.
