Availability:
In Stock

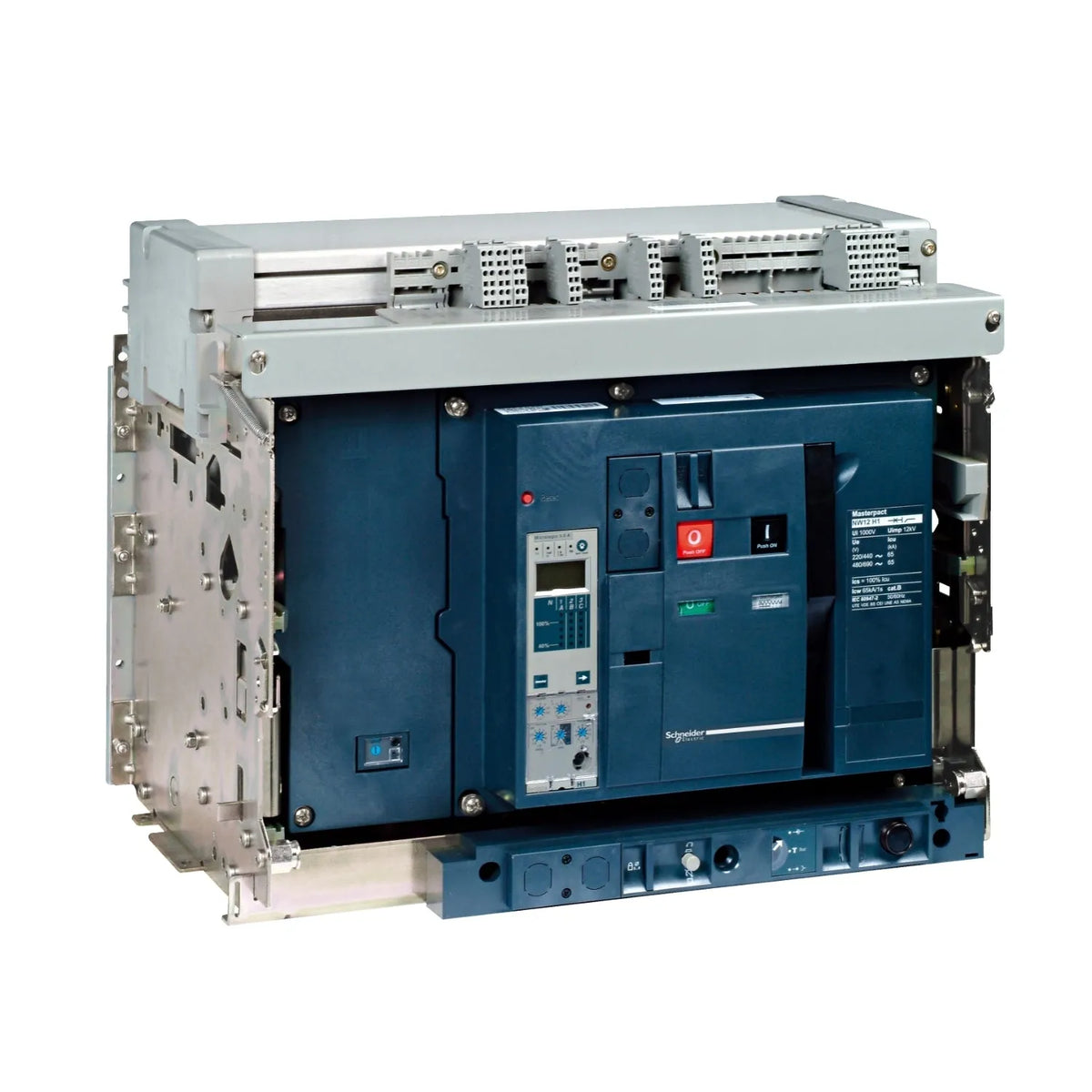

Schneider MasterPact NW25H2 4 Pole 2500 A Air Circuit Breaker
Product SKU:
48077
Rs.2,800,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Range
MasterPacT
Product name
MasterPact NW
circuit breaker name
MasterPact NW25H2
Product or component type
Circuit breaker
Device application
Power distribution protection
Net weight
65 kg
Poles description
4P
Neutral position
Left
Control unit
Without control unit
Rated current [In]
2500 A at 40 °C
Performance type
H2 100 kA 440 V AC
Rated operational voltage [Ue]
690 V AC 50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Selectivity category
Category B
control type
Push-button
Mounting mode
Fixed
Rated ultimate short-circuit breaking capacity [Icu]
100 kA at 220/415 V AC 50/60 Hz / 100 kA at 440 V AC 50/60 Hz / 85 kA at 525 V AC 50/60 Hz / 85 kA at 690 V AC 50/60 Hz
Rated service breaking capacity [Ics]
100 kA at 220/415 V AC 50/60 Hz / 100 kA at 440 V AC 50/60 Hz / 85 kA at 525 V AC 50/60 Hz / 85 kA at 690 V AC 50/60 Hz
Rated short-time withstand current [Icw]
85 kA 1 s / 75 kA 3 s
Rated short-circuit making capacity [Icm]
220 kA 220/415 V AC at 50/60 Hz / 187 kA 440 V AC at 50/60 Hz / 187 kA 525 V AC at 50/60 Hz / 187 kA 690 V AC at 50/60 Hz
Integrated instantaneous protection (DIN in kA peak)
171…209 kA
Sensor rating
1250 A / 2500 A
Rated insulation voltage [Ui]
1000 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]
12 kV
Power dissipation in W
260 W
Maximum breaking time
25 ms
maximum closing response time
70 ms
mounting support
Backplate / Rails
Upside connection
Front / Rear
downside connection
Front / Rear
Mechanical durability
10000 cycles without maintenance / 20000 cycles with maintenance
IP degree of protection
IP30 conforming to IEC 60529
Pollution degree
4 conforming to IEC 60664-1
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Operating altitude
0...2000 m without derating / 2000 m...5000 m with derating
Key Features
High power motor
Higher work efficiency
Product Details
Reviews
Shipping & Returns
Schneider MasterPact NW25H2 4 Pole 2500 A Air Circuit Breaker
Schneider MasterPact NW25H2 is a powerful 4-pole air circuit breaker designed for robust electrical circuit protection. With an impressive rated current of 2500A, this breaker is engineered to handle demanding applications, delivering reliable defense against overloads and short circuits. Its advanced design incorporates cutting-edge technology, ensuring high-performance capabilities to enhance the safety and efficiency of electrical systems. The NW25H2 is a versatile solution suitable for a wide range of industrial and commercial environments, offering a substantial current-carrying capacity and precise circuit interruption. As part of Schneider's esteemed MasterPact series, the NW25H2 stands out for its durability and innovation, making it a trusted choice for critical electrical protection needs.
Looking to purchase Schneider MasterPact NW25H2 4 Pole 2500 A Air Circuit Breaker in bulk?
- Purchase Item in Bulk Quantity
- Get At Best Price For Your Business
Bulk Enquiry
No reviews yet. Be the first to review this product.
Shipping
We ship across Pakistan. Standard delivery takes 3–7 business days.
Returns
Easy 7-day return policy. Product must be unused and in original packaging.
