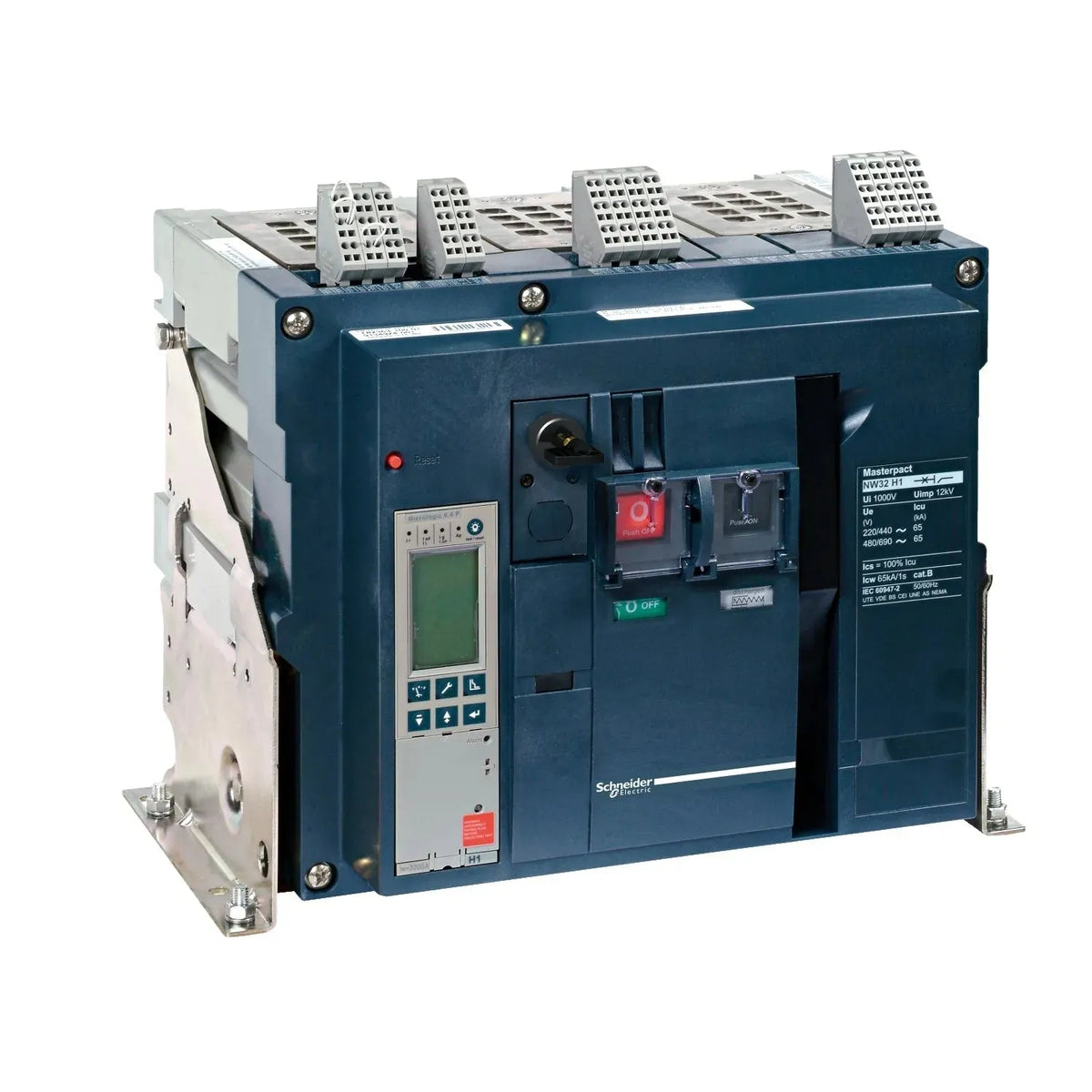

Schneider MasterPact NW32H1 3 Pole 3200A Air Circuit Breaker
Product SKU:
NW32H1
Rs.2,190,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Range
MasterPacT
Product name
MasterPact NW
Net weight
50 kg
circuit breaker name
MasterPact NW32H1
Product or component type
Circuit breaker
Device application
Power distribution protection
Poles description
3P
Control unit
Without control unit
Rated current [In]
3200A at 40 oc
Performance type
HI 65 kA440 V AC
rated operational voltage [Uel
690 V AC 50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Selectivity category
Category B
control type
Push-button
Mounting mode
Fixed
Rated ultimate short-circuit breaking capacity [Icu]
65KA
Rated short-time withstand current [Icw]
65 kA 1 s / 65 kA 3 s
Sensor rating
1250 A, 2500 A
Rated insulation voltage [Ui]
1000 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]
12 kV
Power dissipation in W
650 W
Maximum breaking time
25 ms
maximum closing response time
70 ms
mounting support
Backplate Rails
Upside connection
Rear
downside connection
Rear
Mechanical durability
10000 cycles without maintenance / 20000 cycles with maintenance
IP degree of protection
IP30 conforming to IEC 60529
Pollution degree
4 conforming to IEC 60664-1
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Operating altitude
0...2000 m without derating / 2000 m...5000 m with derating
Key Features
High power motor
Higher work efficiency
Product Details
Reviews
Shipping & Returns
Schneider MasterPact NW32H1 3 Pole 3200A Air Circuit Breaker
The Circuit Breaker Frame, MasterPact NW32H1 , is a robust and high-performance electrical protection device designed for industrial applications. With a range of current ratings including 3200A, and a short-circuit breaking capacity of 65kA at 440VAC 50/60Hz (Icu), this three-pole fixed frame ensures reliable and efficient power distribution. Notably, it operates without a control unit, making it a simplified and essential component for circuit protection in demanding environments.
