Availability:
In Stock

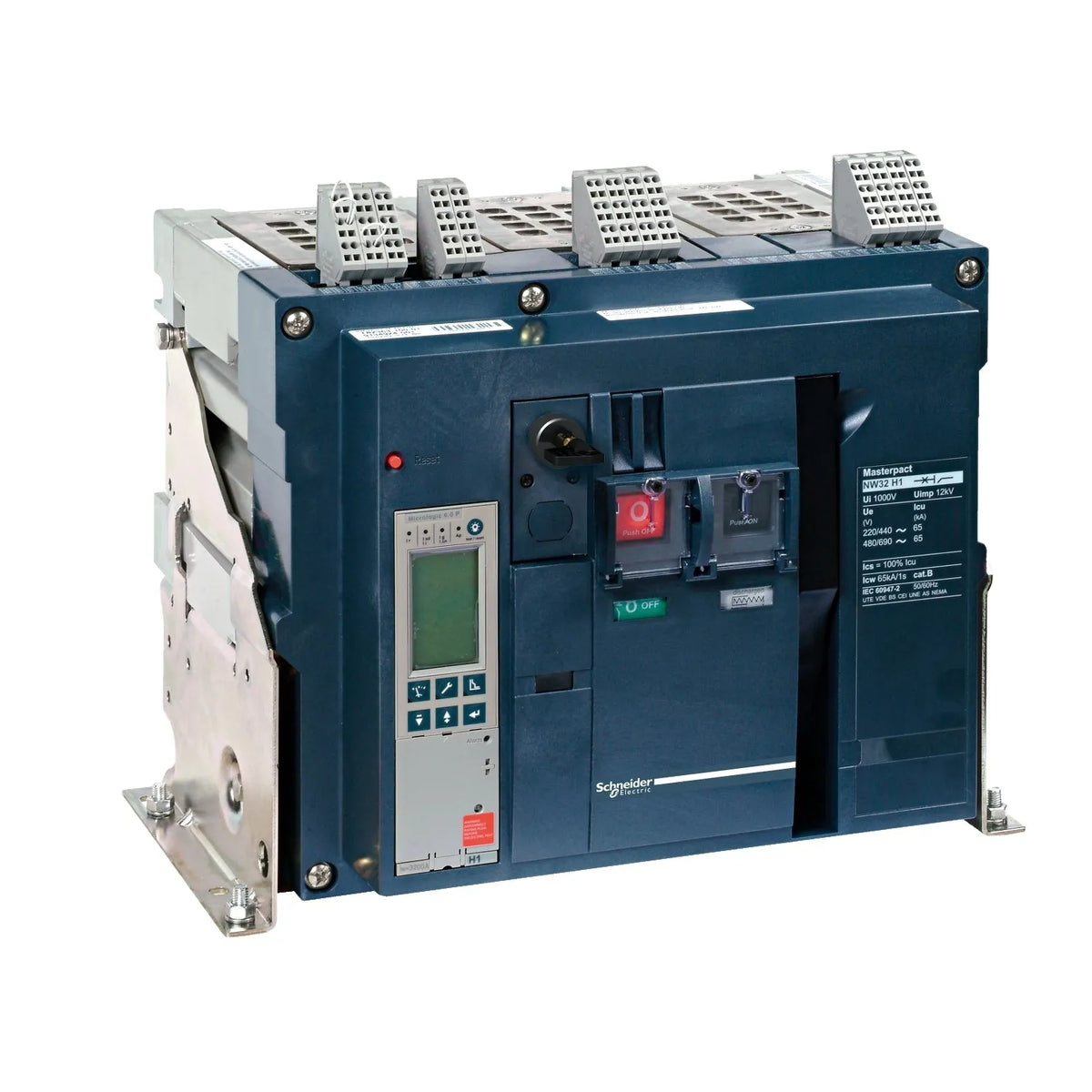

Schneider MasterPact NW32H2 3 Pole 3200A Air Circuit Breaker
Product SKU:
48083
Rs.2,600,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Range
MasterPacT
Product name: MasterPact NW
circuit breaker name: MasterPact NW32H2
Product or component type
Circuit breaker
Device application
Power distribution protection
Poles description
3P
Control unit
Without control unit
Rated current [In]
3200 A at 40 °C
Performance type
H2 100 kA 440 V AC
Rated operational voltage [Ue]
690 V AC 50/60 Hz
Suitability for isolation: Yes conforming to EN/IEC 60947-2
Selectivity category
Category B
control type
Push-button
Mounting mode
Fixed
Rated ultimate short-circuit breaking capacity [Icu]
100 kA at 220/415 V AC 50/60 Hz / 100 kA at 440 V AC 50/60 Hz / 85 kA at 525 V AC 50/60 Hz / 85 kA at 690 V AC 50/60 Hz
Rated service breaking capacity
[Ics]
100 kA at 220/415 V AC 50/60 Hz / 100 kA at 440 V AC 50/60 Hz / 85 kA at 525 V AC 50/60 Hz / 85 kA at 690 V AC 50/60 Hz
Rated short-time withstand current [Icw]
85 kA 1 s / 75 kA 3 s
Rated short-circuit making capacity [Icm]
220 kA 220/415 V AC at 50/60 Hz / 187 kA 440 V AC at 50/60 Hz / 187 kA 525 V AC at 50/60 Hz / 187 kA 690 V AC at 50/60 Hz
Integrated instantaneous protection (DIN in kA peak)
171…209 kA
Sensor rating
1600 A / 3200 A
Rated insulation voltage [Ui]
1000 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]
12 kV
Power dissipation in W
420 W
Maximum breaking time
25 ms
maximum closing response time
70 ms
mounting support
Backplate / Rails
Upside connection
Front / Rear
downside connection
Front / Rear
Mechanical durability
10000 cycles without maintenance / 20000 cycles with maintenance
Electrical durability
5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2 / 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2 / AC-23A: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 / AC-23A: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3 / AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
Net weight
50 kg
Standards
EN/IEC 60947-1 / EN/IEC 60947-2
IP degree of protection
IP30 conforming to IEC 60529
Pollution degree
4 conforming to IEC 60664-1
ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Operating altitude
0...2000 m without derating / 2000 m...5000 m with derating
Key Features
High power motor
Higher work efficiency
Product Details
Reviews
Shipping & Returns
User Manual
Schneider MasterPact NW32H2 3 Pole 3200A Air Circuit Breaker
The Schneider Electric MasterPact NW32H2 is a formidable circuit breaker, boasting a 3200A capacity with a stable 3-pole configuration. Fixed in design and without a trip unit, this breaker is tailored for high-demand scenarios. It provides robust electrical protection, ensuring the safety and stability of industrial applications. The MasterPact NW32H2 is a reliable solution for high-performance electrical systems, offering efficiency and durability in a compact package.
Looking to purchase Schneider MasterPact NW32H2 3 Pole 3200A Air Circuit Breaker in bulk?
- Purchase Item in Bulk Quantity
- Get At Best Price For Your Business
Bulk Enquiry
No reviews yet. Be the first to review this product.
Shipping
We ship across Pakistan. Standard delivery takes 3–7 business days.
Returns
Easy 7-day return policy. Product must be unused and in original packaging.
Download User Manual
Click here to download PDF
