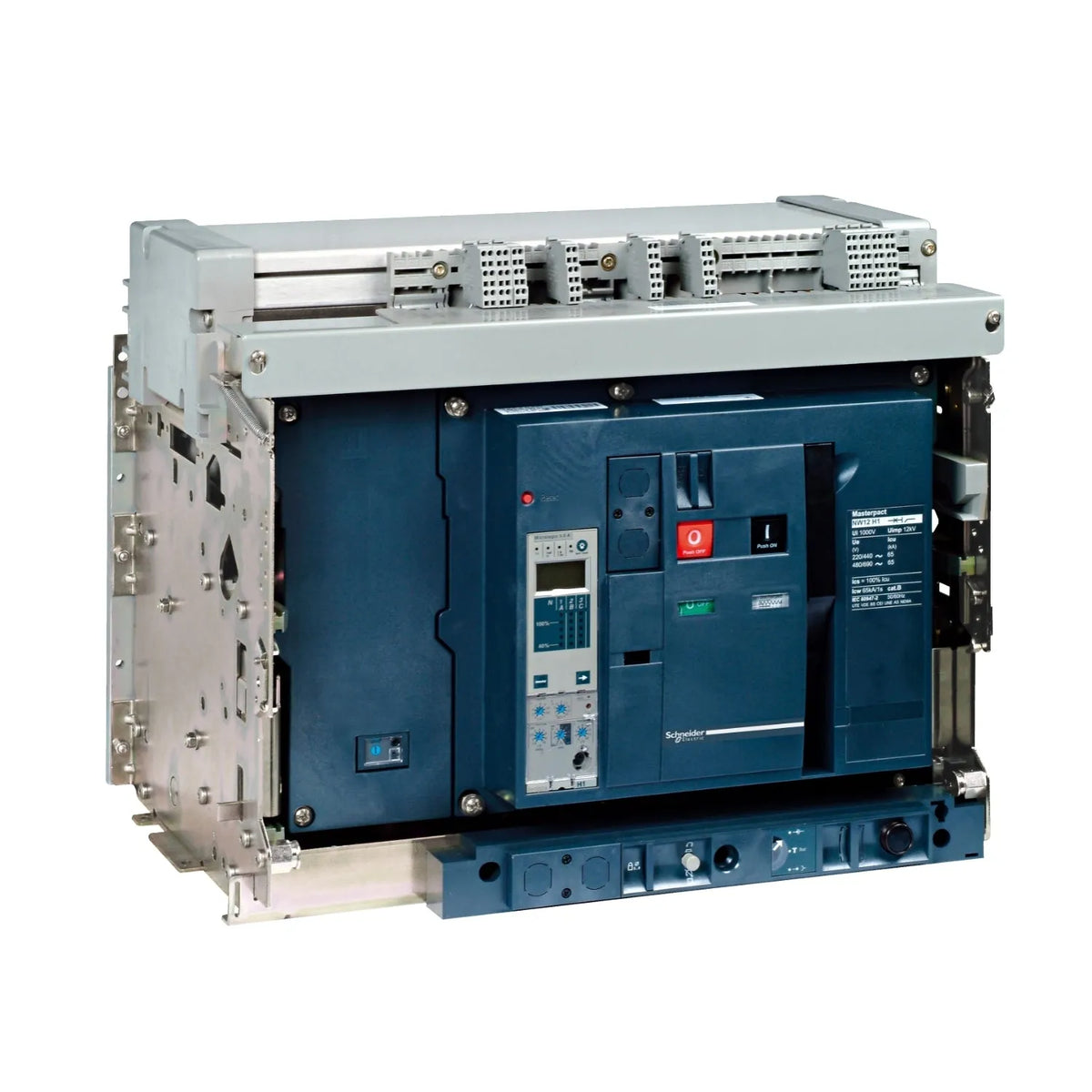

Schneider MasterPact NW40H2 4 Pole 4000 A Air Circuit Breaker
Availability: In Stock

Schneider MasterPact NW40H2 4 Pole 4000 A Air Circuit Breaker

Product SKU: 48098
Rs.4,900,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range MasterPacT
Product name MasterPact NW
circuit breaker name MasterPact NW40H2
Product or component type Circuit breaker
Device application Power distribution protection
Net weight 65 kg
Poles description 4P
Neutral position Left
Control unit Without control unit
Rated current [In] 4000 A at 40 °C
Performance type H2 100 kA 440 V AC
Rated operational voltage [Ue] 690 V AC 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
Selectivity category Category B
control type Push-button
Mounting mode Fixed
Rated ultimate short-circuit breaking capacity [Icu] 100 kA at 220/415 V AC 50/60 Hz / 100 kA at 440 V AC 50/60 Hz / 85 kA at 525 V AC 50/60 Hz / 85 kA at 690 V AC 50/60 Hz
Rated service breaking capacity [Ics] 100 kA at 220/415 V AC 50/60 Hz / 100 kA at 440 V AC 50/60 Hz / 85 kA at 525 V AC 50/60 Hz / 85 kA at 690 V AC 50/60 Hz
Rated short-time withstand current [Icw] 85 kA 1 s / 75 kA 3 s
Rated short-circuit making capacity [Icm] 220 kA 220/415 V AC at 50/60 Hz / 187 kA 440 V AC at 50/60 Hz / 187 kA 525 V AC at 50/60 Hz / 187 kA 690 V AC at 50/60 Hz
Integrated instantaneous protection (DIN in kA peak) 171…209 kA
Sensor rating 2000 A / 4000 A
Rated insulation voltage [Ui] 1000 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp] 12 kV
Power dissipation in W 650 W
Maximum breaking time 25 ms
maximum closing response time 70 ms
mounting support Backplate / Rails
Upside connection Rear
downside connection Rear
Connection pitch 150 mm
Mechanical durability 10000 cycles without maintenance / 20000 cycles with maintenance
Standards EN/IEC 60947-1 / EN/IEC 60947-2
IP degree of protection IP30 conforming to IEC 60529
Pollution degree 4 conforming to IEC 60664-1
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Operating altitude 0...2000 m without derating / 2000 m...5000 m with derating

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Schneider MasterPact NW40H2 4 Pole 4000 A Air Circuit Breaker

Schneider MasterPact NW40H2 is a 4-pole powerhouse air circuit breaker, built for muscle. Packing a 4000A current rating and a 100kA short-circuit shield, it safeguards critical equipment in demanding industrial and commercial settings. Think factories, data centers, and the like. Its drawout design lets you service it easily, while its compact size plays nice with existing panels. Choose the MasterPact NW40H2 for ultimate electrical protection and peace of mind.
