Fronus Infineon Reborn Hybrid Inverter Price in Pakistan
  • Fronus Infineon Reborn Hybrid Inverter Price in Pakistan

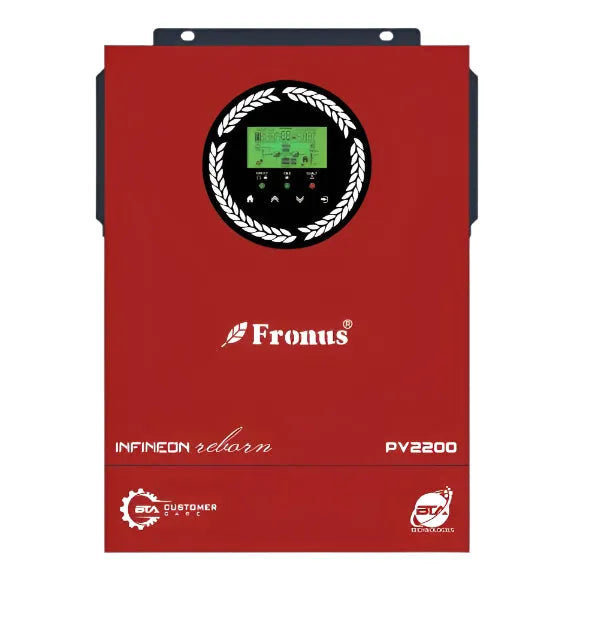

Fronus Infineon Reborn PV 2200 1.6kw Hybrid Inverter
Availability: Out of stock

Fronus Infineon Reborn PV 2200 1.6kw Hybrid Inverter

Product SKU: Fronus-PV2200-1.6kw
Price on Request

Safe Delivery

Quick & safe nation wide delivery

1 Year Warranty

Reliable 1-year protection

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

WhatsApp Inquiry

Offer & Coupon

Get Flat Rs 300 Off on HIMEL Min Cart Value Rs 4500

Specifications

Type Hybrid Inverter
Rated Output Power 2000 VA / 1600 W
Output Voltage Waveform Pure Sine Wave
Output Voltage Regulation 230 VAC ±5%
Output Frequency 50 Hz
Peak Efficiency 94%
Overload Protection 5s at ≥150% Load, 10s at 100%-150% Load
Surge Capacity 2x Rated Power for 5s
Nominal DC Input Voltage 12 VDC
Cold Start Voltage 11.5 VDC
High DC Recovery Voltage 14 VDC
High DC Cut-Off Voltage 16 VDC
No Load Power Consumption 25 W
Charging Algorithm 3-Step
AC Charging Current (Maximum) 60 A (at 230 VAC input)
Bulk Charging Voltage Flooded Battery 14.6 VDC
Bulk Charging Voltage AGM/Gel Battery 14.1 VDC
Floating Charging Voltage 13.5 VDC
Maximum PV Array Power 2000 W
Nominal PV Voltage 240 VDC
PV Array MPPT Voltage Range 30 VDC – 400 VDC
Max PV Array Open Circuit Voltage 400 VDC
Maximum Charging Current 80 A
Input Voltage Waveform Sinusoidal (Utility or Generator)
Nominal Input Voltage 230 VAC
Low Loss Voltage 170 VAC ±7V (UPS), 90 VAC ±7V (Appliances) Low Loss Return Voltage: 180 VAC ±7V (UPS), 100 VAC ±7V (Appliances)
High Loss Voltage 280 VAC ±7V
High Loss Return Voltage 270 VAC ±7V
Maximum AC Input Voltage 280 VAC
Nominal Input Frequency 50 Hz / 60 Hz (Auto Detection)
Low Loss Frequency 46 ±1 Hz
Low Loss Return Frequency 47 ±1 Hz
High Loss Frequency 54 ±1 Hz
High Loss Return Frequency 53 ±1 Hz
Output Short Circuit Protection Circuit Breaker
Efficiency (Line Mode) >95% (Rated Load, Battery Fully Charged)
Transfer Time 10 ms for UPS, 20 ms for Appliances General
Safety Certification CE
Operating Temperature Range -10°C to 50°C
Storage Temperature -15°C to 60°C
Humidity 5% to 95% Relative Humidity (Non-Condensing)
Dimensions (D x W x H) 36 mm x 270 mm x 100 mm
Net Weight 4.4 kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Fronus Infineon Reborn PV 2200 1.6kw Hybrid Inverter

safeguard the system by automatically adjusting to changes in load, while the circuit breaker ensures safe operation in case of faults or short circuits.

This inverter also has a wide input voltage range from 170V to 280V AC and offers a fast transfer time of 10 ms for UPS systems and 20 ms for appliances, minimizing any disruption in power. Its compact design (36 mm x 270 mm x 100 mm) and lightweight build (4.4 kg) make it easy to install in various locations, and its operation in temperatures ranging from -10°C to 50°C ensures it can withstand a wide range of environmental conditions.

With CE certification, the Fronius Infineon Reborn PV 2200 is built to meet international safety standards, making it a dependable, efficient, and safe choice for managing your solar energy needs.

Fronus Infineon Reborn Hybrid Inverter Price in Pakistan
Fronus Infineon Reborn PV 2200 1.6kw Hybrid Inverter
Looking to purchase Fronus Infineon Reborn PV 2200 1.6kw Hybrid Inverter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.
