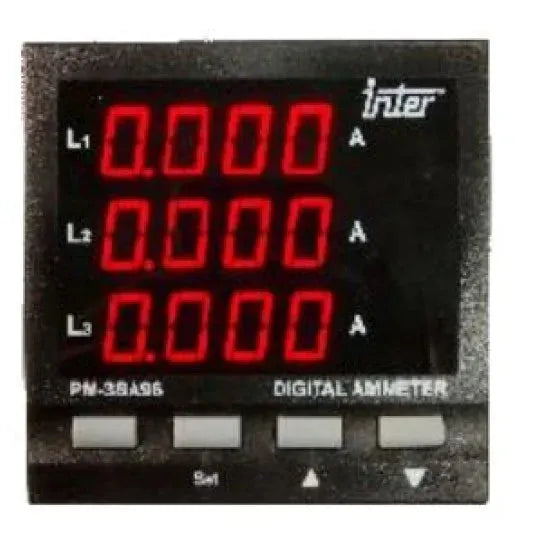

Inter Digital AC Ammeter Price in Pakistan Rs 27,500/-. The Inter PM-3SA96 Digital AC Ammeter is a high-accuracy panel-mounted meter designed for real-time monitoring of AC current in single-phase or three-phase electrical systems. Featuring a 96x96mm DIN standard housing, it provides clear digital readings of current values using True RMS technology, ensuring precision even in systems with harmonic distortion. Ideal for industrial panels, generator monitoring, distribution boards, and power factor correction systems, this ammeter is easy to install and integrates seamlessly into your power monitoring setup.
Measures AC current in real-time with high accuracy
DIN panel mounting for fast installation
Highly accurate and stable readings
Large digital display for easy reading
Low power consumption and compact design
Standard 96x96mm panel design for universal fit
Supports both single-phase and three-phase systems
True RMS sensing ensures reliability in distorted waveforms
Wide CT range compatibility (1A/5A inputs)
Product Specifications
Type
digital ac ammeter
accuracy class
±0.5% (of reading)
ct input range
1a / 5a (primary current programmable up to 9999a)
current input
via external current transformer (ct)
display type
high-brightness led or lcd (model-dependent)
enclosure protection
ip52 (front), ip20 (rear)
frequency range
45–65 hz
measurement method
true rms
mounting type
panel mount with clips
operating temperature
-10°c to +60°c
panel size
96 x 96 mm (din standard)
power supply
85–265v ac / 100–300v dc
storage temperature
-20°c to +70°c
Product Details
Inter Digital AC Ammeter Price in Pakistan Rs 27,500/-. The Inter PM-3SA96 Digital AC Ammeter is a high-accuracy panel-mounted meter designed for real-time monitoring of AC current in single-phase or three-phase electrical systems. Featuring a 96x96mm DIN standard housing, it provides clear digital readings of current values using True RMS technology, ensuring precision even in systems with harmonic distortion. Ideal for industrial panels, generator monitoring, distribution boards, and power factor correction systems, this ammeter is easy to install and integrates seamlessly into your power monitoring setup.
