Save Bigger, Shop Smarter: Up to 40% OFF! Dive In!
Range of product
|
tesys deca
|
component type
|
contactor
|
device short name
|
lc1d
|
contactor application
|
motor control
|

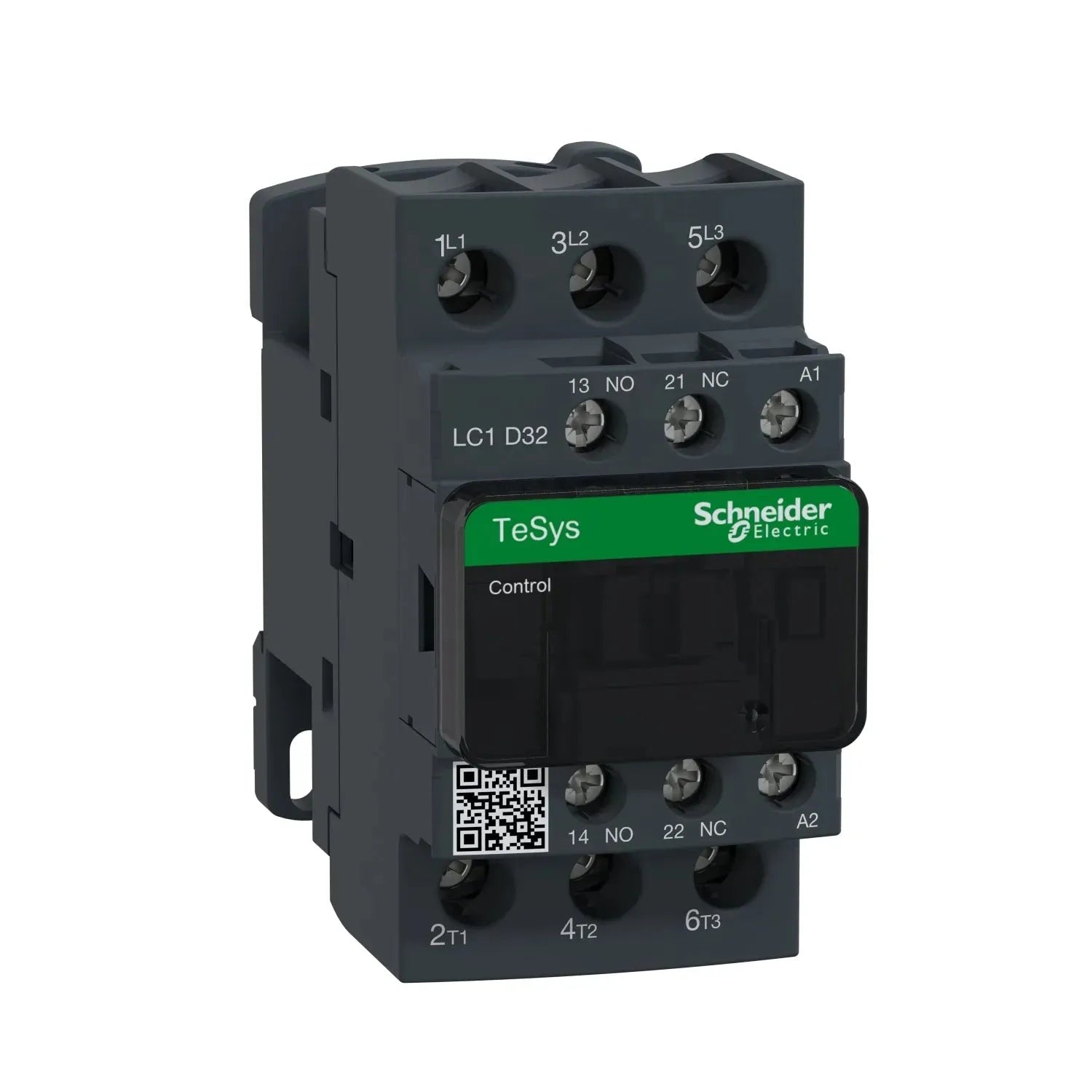

Schneider LC1D32 TeSys D Contactor is a high-performance electrical switching device designed for industrial applications. With a three-pole (3P) configuration and three normally open (NO) contacts, it is capable of handling up to 32 amperes of alternating current (AC-3) at 220 volts. The contactor is equipped with a reliable 220-volt AC coil, ensuring efficient and durable operation. This component is an essential part of electrical control systems, providing a dependable solution for controlling and managing electrical loads in a variety of industrial settings.
Range of product
|
tesys deca
|
component type
|
contactor
|
device short name
|
lc1d
|
contactor application
|
motor control
|
poles description
|
3p
|
thermal current ampere
|
50a
|
capacity
|
15 / 20 kw (hp)
|
rated operational voltage [ue]
|
power circuit; <= 690 v ac 25...400 hz / power circuit; <= 300 v dc
|
rated operational current [ie]
|
50 a
|
control circuit voltage [uc]
|
220 v ac 50/60 hz
|
net weight
|
0.375 kg
|
compatibility code
|
lc1d
|
pole contact composition
|
3 no
|
contact compatibility
|
m2
|
protective cover
|
with
|
conventional free air thermal current [ith]
|
50 a (at 60 °c) for power circuit / 10 a (at 60 °c) for signalling circuit
|
rated breaking capacity
|
550 a at 440 v for power circuit conforming to iec 60947
|
average impedance
|
2 mohm - ith 50 a 50 hz for power circuit
|
overvoltage category
|
iii
|
pollution degree
|
3
|
mechanical durability
|
15 mcycles
|
control circuit type
|
ac at 50/60 hz standard
|
heat dissipation
|
2…3 w at 50/60 hz
|
operating time
|
12...22 ms closing / 4...19 ms opening
|
auxiliary contact composition
|
1 no + 1 nc
|
signalling circuit frequency
|
25...400 hz
|
minimum switching voltage
|
17 v for signalling circuit
|
minimum switching current
|
5 ma for signalling circuit
|
insulation resistance
|
> 10 mohm for signalling circuit
|
mounting support
|
plate rail
|
operating altitude
|
0...3000 m
|
fire resistance
|
850 °c conforming to iec 60695-2-1
|
flame retardance
|
v1 conforming to ul 94
|
Schneider LC1D32 TeSys D Contactor is a high-performance electrical switching device designed for industrial applications. With a three-pole (3P) configuration and three normally open (NO) contacts, it is capable of handling up to 32 amperes of alternating current (AC-3) at 220 volts. The contactor is equipped with a reliable 220-volt AC coil, ensuring efficient and durable operation. This component is an essential part of electrical control systems, providing a dependable solution for controlling and managing electrical loads in a variety of industrial settings.
