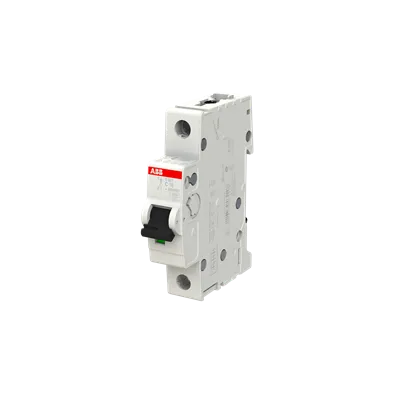

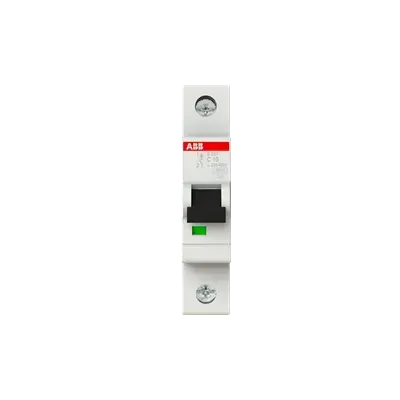

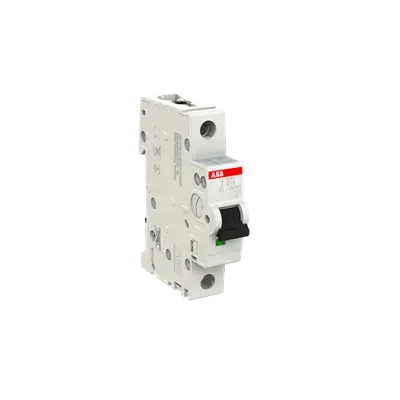

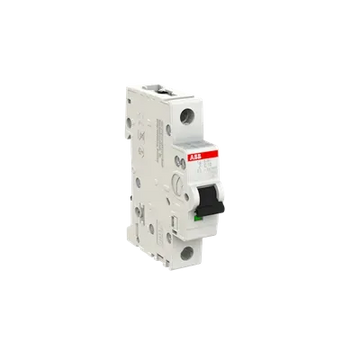

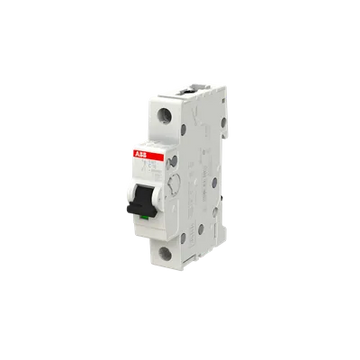

ABB S201-C 1 Pole Miniature Circuit Breaker 10KA

Availability: In Stock

ABB S201-C 1 Pole Miniature Circuit Breaker 10KA

Name: ABB S201-C 1 Pole Miniature Circuit Breaker 10KA
Brand: ABB
Price: 2600.0 PKR
Availability: InStock

Product SKU: S201-C10

Rs.2,600

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

Specifications

Standards IEC/EN 60898-1 / IEC/EN 60947-2 / UL 1077

Tripping Characteristic C

Rated Operational Voltage acc. to IEC 60898-1 230 / 400 V AC / acc. to IEC 60898-1 230 V / acc. to IEC 60947-2 230 V AC

Operational Voltage Maximum (Incl. Tolerance) 253 V AC / Maximum (Incl. Tolerance) 72 V DC / Minimum 12 V AC / Minimum 12 V DC

Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp) 4 kV at 2000 m / 5 kV at Sea Level / 6.2 kV

Dielectric Test Voltage 50/60 Hz, 1 min: 2 kV

Input Voltage Type AC/DC

Rated Current (In) 10 A

Rated Short-Circuit Capacity (AC) 6 kA / (DC) 6 kA / (230 / 400 V AC) 6 kA / (230 V) 6 kA / (400 V) 6 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu) (133 V AC) 20 kA / (230 V AC) 10 kA / (24 V DC) 20 kA / (60 V DC) 10 kA / (230 V) 10 kA / (400 V) 10 kA

Rated Conditional Short-Circuit Current (Inc) (230 V) 10 kA / (400 V) 10 kA

Rated Service Short-Circuit Breaking Capacity (Ics) (133 V AC) 15 kA / (230 V AC) 7.5 kA

Frequency (f) 50 Hz

Rated Frequency (f) 50 / 60 Hz

Power Loss 2.1 W / at Rated Operating Conditions per Pole 2.1 W

Power Supply Connection Arbitrary

Contact Position Indication Red ON / Green OFF

Energy Limiting Class 3

Electrical Endurance 20000 AC cycles

Mechanical Endurance 20000 cycles

Number of Protected Poles 1

Number of Poles 1

Overvoltage Category III

Tightening Torque 2.8 Nåám

Mounting Type DIN-Rail

Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking I / O

Actuator Material Insulation Group II, Black, Sealable

Housing Material Insulation Group II, RAL 7035

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 / TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position Any

Recommended Screw Driver Pozidriv 2

Accessories Available Yes

Technical Information MINIATURE CIRCUIT BREAKER

Connecting Capacity Busbar 10 / 10 mmå? / Flexible with Ferrule 0.75 ... 25 mmå? / Flexible 0.75 ... 25 mmå? / Rigid 0.75 ... 35 mmå? / Stranded 0.75 ... 35 mmå?

Installation Size acc. to DIN 43880 1

Wire Stripping Length 12.5 mm

Terminal Type Screw Terminals

Key Features

High power motor

Higher work efficiency

Product Details Reviews Shipping & Returns User Manual

ABB S201-C 1 Pole Miniature Circuit Breaker 10KA

The S201-C10,S201-C16åÊ Miniature Circuit Breaker is a single-pole (1P), C-type MCB with a 10 A, 16A rating, designed to protect electrical circuits from overloads and short circuits. Part of the System pro M compact S200 series, it features a dual tripping mechanism for reliable performance, including delayed thermal tripping for overloads and electromechanical tripping for short circuits. It meets standards IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, making it suitable for residential, commercial, and industrial use. Additionally, it offers space-saving with the option for a bottom-fitting auxiliary contact.
