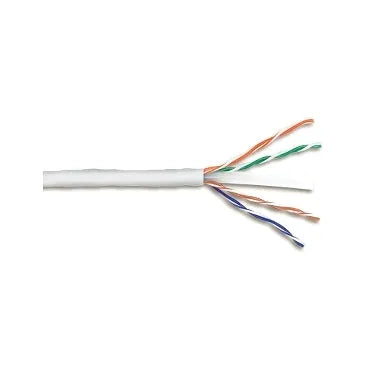

Actassi Cat-6 4-Pair UTP Cable LSZH Rated White

OVERVIEW

This cable Actassi 4-pair Category 6 cable is a superior product delivering excellent network performance when used in conjunction with other Actassi Category 6 products. The availability of a central filler helps in delivering superior cross-talk isolation and therefore ensures excellent performance. This precision and unique manufacturing process design allows for easy removal, which maximizes both performance and termination.

Technical

• Range: Actassi

• Product or component type: Copper cable

• Colour tint: White

• Cable shielding type: U/UTP

• Type of cable: 4 pair cables

• Communication network category: 6

• Input impedance: 100 Ohm (+/- 6) at 1…100 MHz

• Maximum loop resistance: 73.2 Ohm

• Capacitance unbalance: 330 pF / 100 m

• Maximum resistance unbalance: 5 %

• Nominal velocity propagation: 68 %

• wire insulation material: PE

• Conductor material: Solid bare copper

• AWG gauge: AWG 23

• Cable outer diameter: 6 mm

• Cable length: 305 m

• Ambient air temperature for operation: 75 °C

• Product certifications: IEC

• Flame retardance: LSZH

• Standards: ANSI/TIA/EIA-568-B | ISO/IEC 11801 | UL 444
