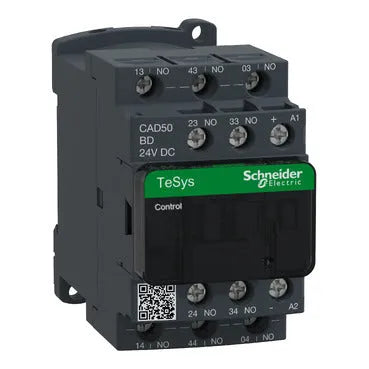

Schneider CAD – 50DB TeSys Deca Control Relay
Availability: In Stock

Schneider CAD – 50DB TeSys Deca Control Relay

Product SKU: CAD50BD
Rs.35,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range TeSys
TeSys Deca TeSys CAD
Product or component type Control relay
Device short name CAD
Contactor application Control circuit
Utilisation category AC-14, DC-13, AC-15
Pole contact composition 5 NO
[Ue] rated operational voltage ≤ 690 V AC 25...400 Hz
Control circuit type DC standard
[Uc] control circuit voltage 24 V DC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
[Ith] conventional free air thermal current 10 A (at 60 °C)
Irms rated making capacity 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
[Icw] rated short-time withstand current 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
Associated fuse rating 10 A gG conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V UL certified, 600 V CSA certified, 690 V conforming to IEC 60947-5-1
Screw clamp terminals 1 cable(s) 1…4 mm² flexible without cable end
Screw clamp terminals 2 cable(s) 1…4 mm² flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm² solid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm² solid without cable end
1.2 N.m on screw clamp terminals - with screwdriver Philips No 2
1.2 N.m on screw clamp terminals - with screwdriver flat Ø 6 mm
1.2 N.m on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit voltage limits Drop-out DC : 0.1...0.25 Uc (-40…70 °C) Operational DC : 0.7...1.25 Uc (-40…60 °C), 1...1.25 Uc (60…70 °C)
Dimensions & Weight Height : 77 mm Width : 45 mm Depth : 93 mm Net weight : 0.58 kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider CAD – 50DB TeSys Deca Control Relay

The Schneider CAD-50DB TeSys Deca Control Relay is a high-performance solution for industrial automation and motor control applications. Designed for reliable switching, this relay offers robust electrical performance, long-lasting durability, and compliance with international standards. It ensures seamless integration into electrical systems, providing enhanced control and safety in demanding environments.

Built with 3 normally open (NO) and 2 normally closed (NC) contacts, the CAD-50DB offers versatile switching capabilities, making it ideal for controlling auxiliary circuits, signal relays, and automation processes. Its high insulation voltage and strong impulse withstand capacity ensure operational stability, even under fluctuating power conditions.

Equipped with a DC standard coil, this control relay operates efficiently at 24V DC, delivering consistent performance while maintaining energy efficiency. Its compact design and easy mounting options—whether on a DIN rail or a mounting plate—make installation quick and hassle-free. The screw clamp terminals provide secure connections, ensuring electrical continuity and minimal maintenance.

Engineered for industrial-grade durability, the TeSys Deca control relay is designed to withstand high mechanical stress, shocks, and vibrations, making it ideal for heavy-duty environments. With a high mechanical and electrical lifespan, it ensures prolonged service life, reducing downtime and maintenance costs. Additionally, compliance with IEC, UL, CSA, and other international safety standards guarantees reliability and safe operation.
