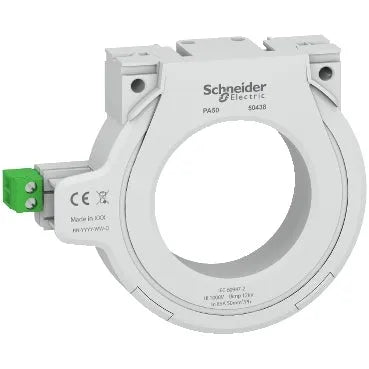

Schneider Closed Toroid Inner Diameter 50mm
  • Schneider Closed Toroid Inner Diameter 50mm
Schneider Closed Toroid Inner Diameter 50mm
Availability: In Stock

Schneider Closed Toroid Inner Diameter 50mm

Product SKU: 50438
Rs.40,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range VigiPacT
Device short name PA50
Product or component type Earth leakage current sensor
Device application Equipment monitoring and control
Range compatibility VigiPacT RH10M residual current protection relay VigiPacT RH10P residual current protection relay VigiPacT RH21M residual current protection relay VigiPacT RH21P residual current protection relay VigiPacT RH68M residual current protection relay VigiPacT RH86M residual current protection relay VigiPacT RH86P residual current protection relay VigiPacT RH99M residual current protection relay VigiPacT RH99P residual current protection relay VigiPacT RH197M residual current protection relay VigiPacT RH197P residual current protection relay VigiPacT RHU residual current protection relay VigiPacT RHUs residual current protection relay VigiPacT RMH residual current protection relay
current sensor type A type closed toroid
[Ie] rated operational current 85 A
Transformer ratio 1/1000
Network type AC/DC
Network frequency 45...440 Hz
[Icw] rated short-time withstand current 85 kA for 0.5 s
Residual short-circuit withstand current 85 kA / 0.5 s conforming to IEC 60947-2
[Ui] rated insulation voltage 1000 V Overvoltage category IV [Uimp] rated impulse withstand voltage 12 kV Mounting mode Fixed (plain backplate) Fixed (profiled sheet metal) Fixed (slotted backplate) Clip-on (DIN rail) Clip-on (Vigirex relay)
Calorific value 1.42 MJ
Connections - terminals Screw connection 0.22 mm²
Diameter 50 mm inner
Cable outer diameter 25 mm: 50 mm² (maximum)
Net weight 0.2 kg
Height 108 mm
Width 88 mm
Depth 29 mm

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider Closed Toroid Inner Diameter 50mm

This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 85A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 50mm and the weight is 0.200kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 25 millimetres. The maximum cross section per phase (R, S, T, N) is 50mm² for a copper conductor.

Schneider Closed Toroid Inner Diameter 50mm
Schneider Closed Toroid Inner Diameter 50mm
Looking to purchase Schneider Closed Toroid Inner Diameter 50mm in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
