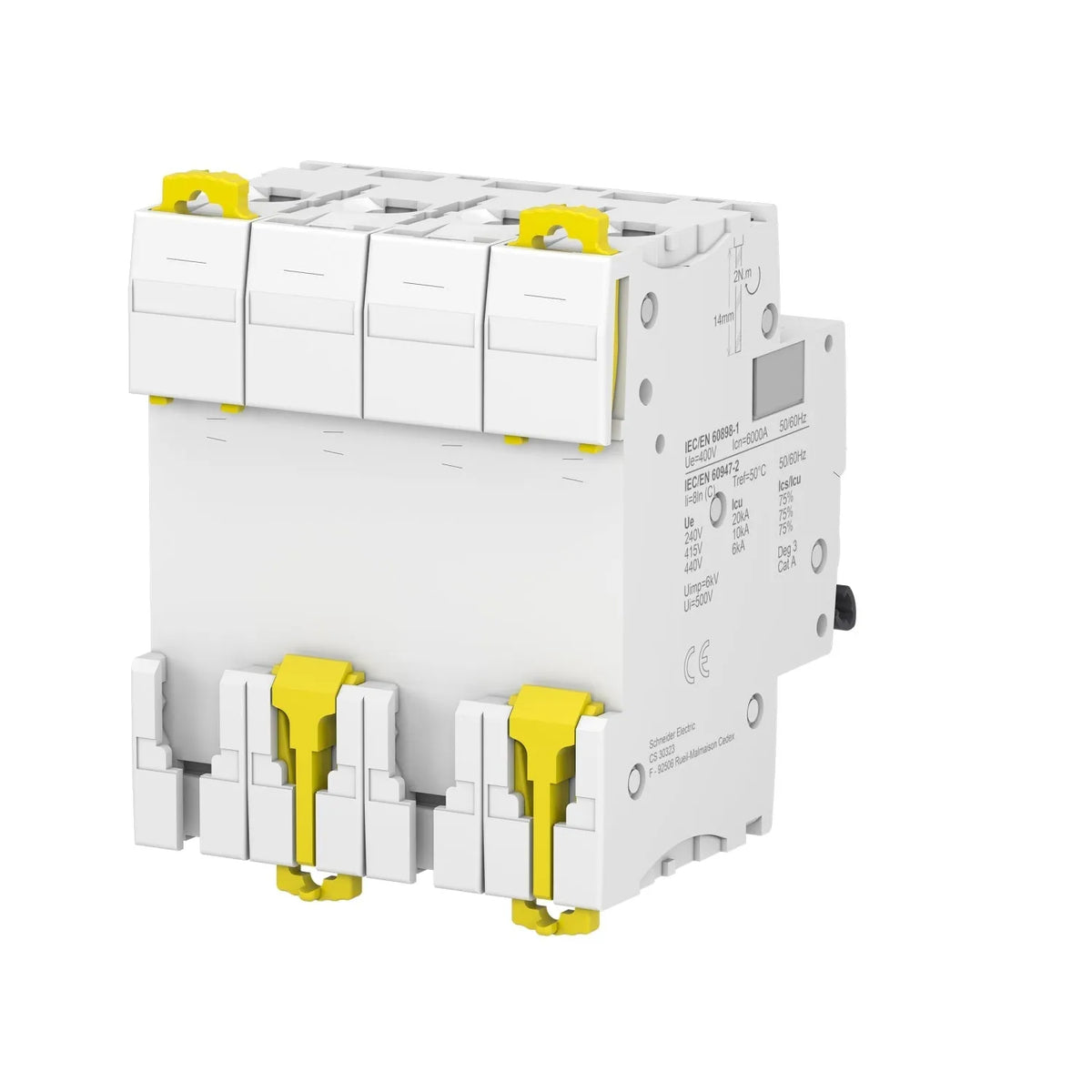

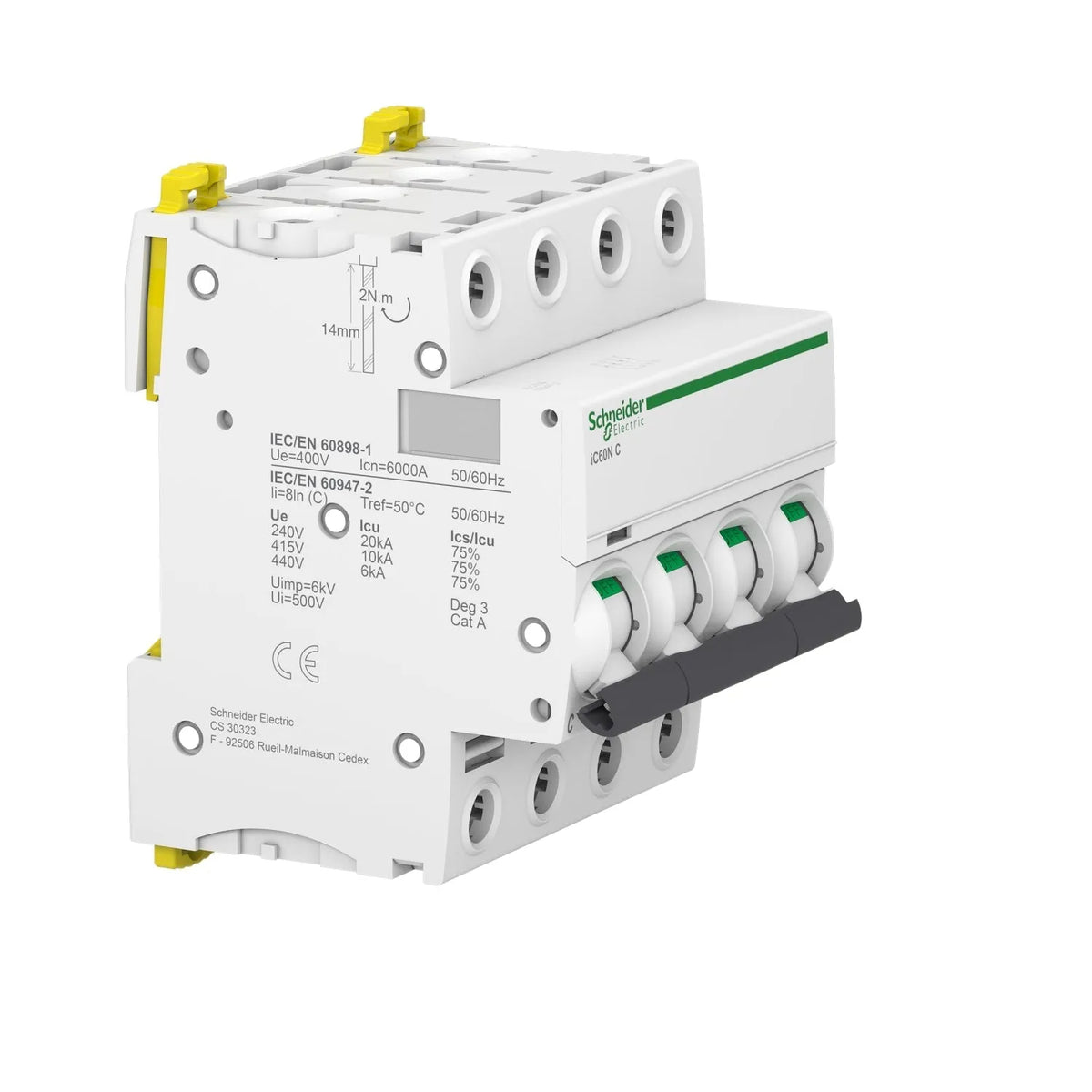

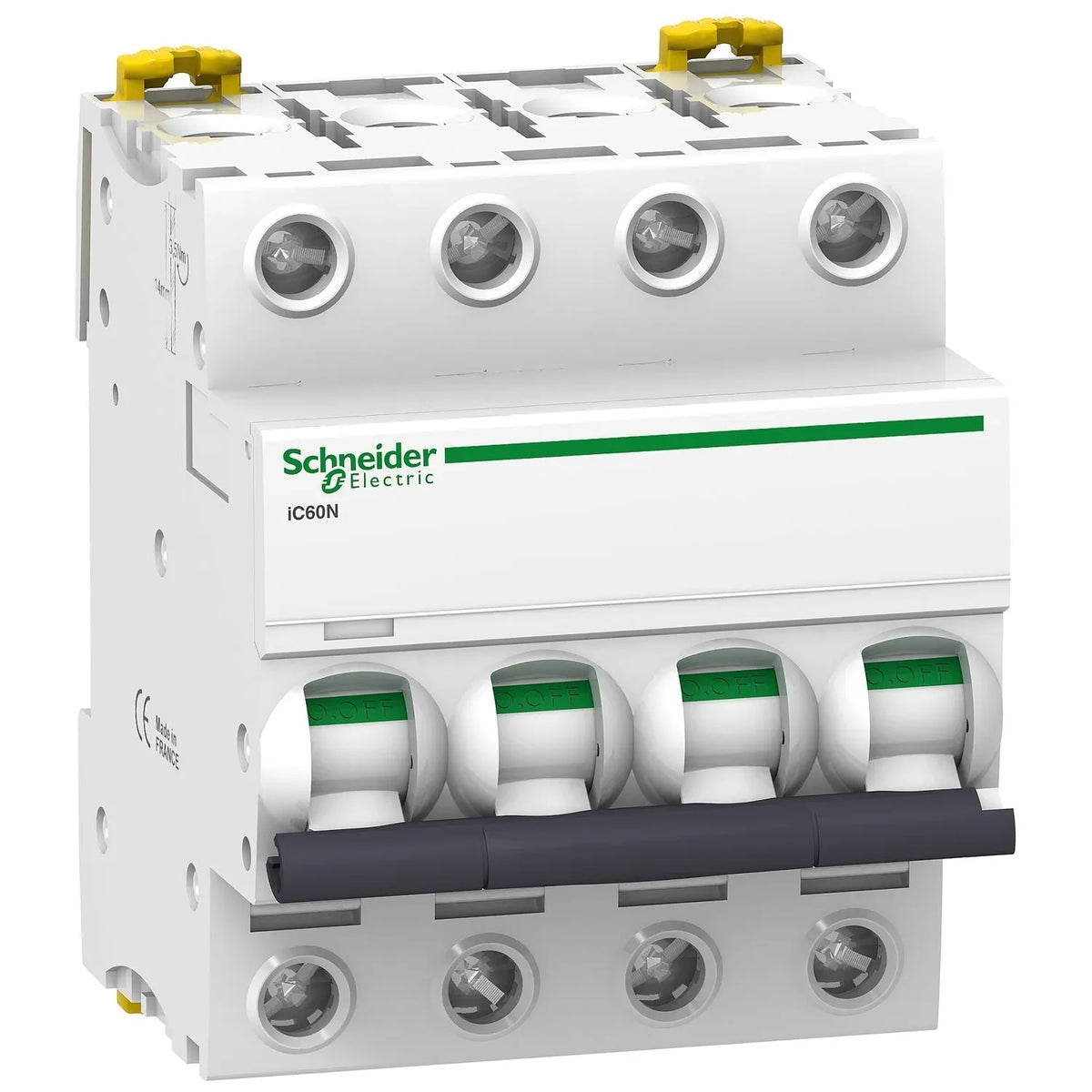

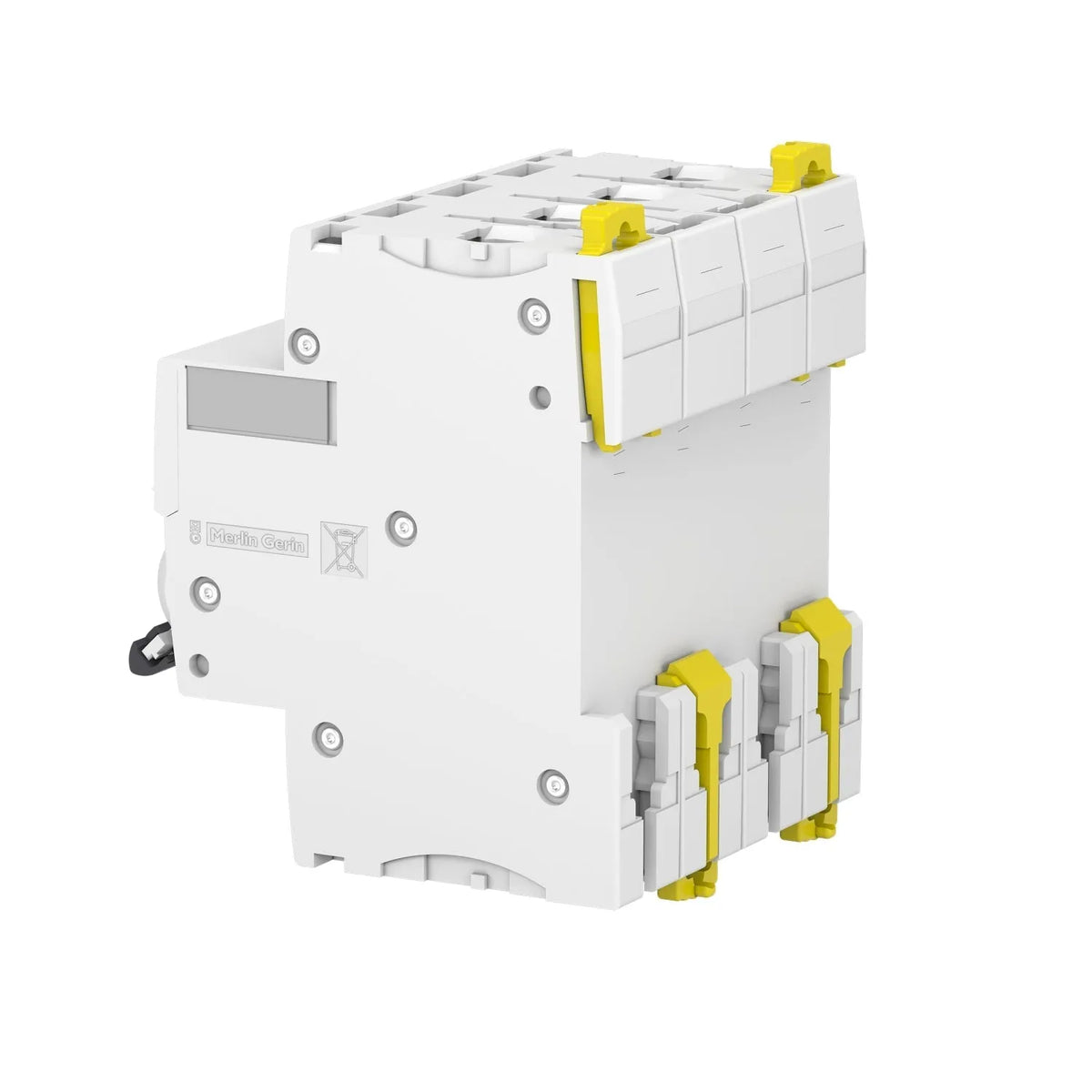

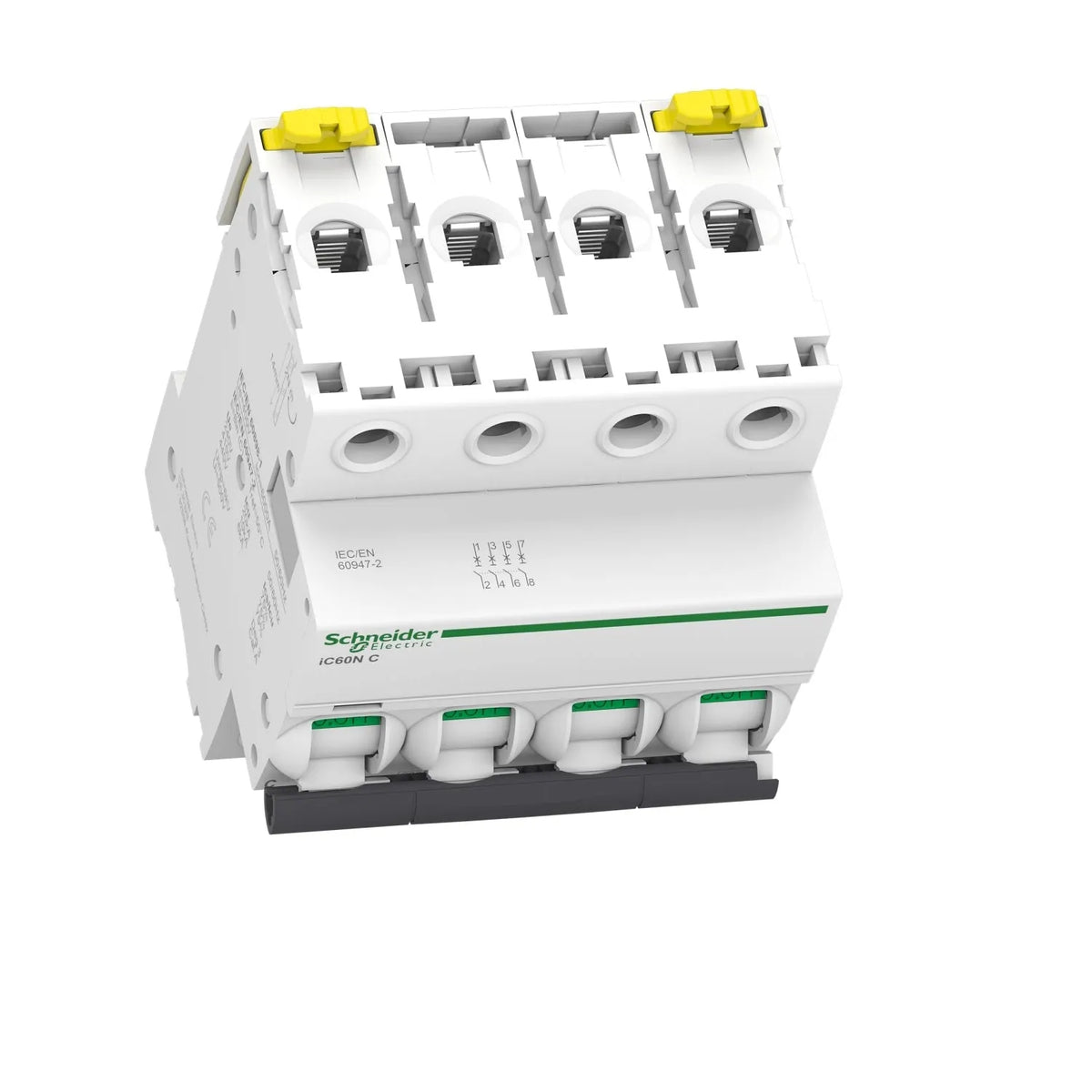

Schneider iC60N 4 Pole Miniature Circuit Breaker 6 KA-10 kA

Availability: In Stock

Schneider iC60N 4 Pole Miniature Circuit Breaker 6 KA-10 kA

Name: Schneider iC60N 4 Pole Miniature Circuit Breaker 6 KA-10 kA
Brand: Schneider Electric
Price: 20000.0 PKR
Availability: InStock

Product SKU: A9F74406

Rs.20,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

Specifications

Device application Distribution

Product name iC60N

Product or component type Miniature circuit-breaker

Poles description 4P

Number Of protected poles 4

[In] rated current 6 A

Network type DC / AC

Trip unit technology Thermal-magnetic

Curve code c

Breaking capacity 6,000A - 10,000A

Utilisation category Category A conforming to EN 60947-2 / Category A conforming to IEC 60947-2

standards EN 60898-1 / IEC 60947-2 / IEC 60898-1 / EN 60947-2

Network frequency 50/60 Hz

Magnetic tripping limit 8 x In +/- 20 %

[Ics] rated service breaking capacity 6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz / 10 kA 100 % conforming to IEC 60947-2 - 180...250 V DC

Limitation class 3 conforming to EN 60898-1 / 3 conforming to IEC 60898-1

[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2 / 500 V AC 50/60 Hz conforming to IEC 60947-2

Contact position indicator Yes

control type Toggle

Local signalling Trip indicator

Mounting mode Fixed

mounting support DIN rail

Net weight 0.5 kg

Colour White

Mechanical durability 20000 cycles

Electrical durability 10000 cycles

Connections - terminals Single terminal (top or bottom) 1‰Û?25 mmå? rigid / Single terminal (top or bottom) 1‰Û?16 mmå? flexible

Key Features

High power motor

Higher work efficiency

Product Details Reviews Shipping & Returns User Manual

Schneider iC60N 4 Pole Miniature Circuit Breaker 6 KA-10 kA

åÊ

This iC60N is a low-voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 6A, 10A, 16A, 20A, 32A, 40A, 50A, 63A rated current, and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6,000A to 10,000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuits and overload currents. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. The pollution degree is 3. Overvoltage category is IV. The product's color is white (RAL9003). The dimensions are (W) 72mm x (H) 85mm x (D) 78.5mm. The weight is 0.5kg. According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in the enclosure. The operating temperature is -35å¡C to 70å¡C. The storage temperature is -40å¡C to 85å¡C.
