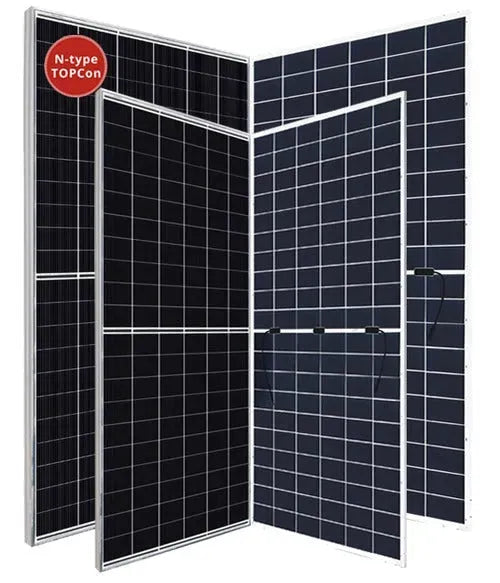

Canadian 620 Watt N Type Bi-Facial Solar Panel Price In Pakistan
  • Canadian 620 Watt N Type Bi-Facial Solar Panel Price In Pakistan
  • Canadian 620 Watt N Type Bi-Facial Solar Panel
Canadian 620 Watt N Type Bi-Facial Solar Panel
Availability: In Stock

Canadian 620 Watt N Type Bi-Facial Solar Panel

Product SKU: Canadian-620w-Bi-facial
Rs.31,400

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type N-Type TOPCon Bi-Facial Dual Glass
Maximum Power (Pmax) 620W
Module Efficiency 21.9%
Maximum Power Voltage (Vmp) 35.7V
Maximum Power Current (Imp) 17.37A
Open Circuit Voltage (Voc) 42.9V
Short Circuit Current (Isc) 18.31A
Power Tolerance 0 ~ +10W
Cell Type TOPCon Cells
Cell Arrangement 120 Cells [2 × (10 × 6)]
Maximum System Voltage 1500V DC (IEC/UL)
Maximum Series Fuse Rating 35A
Power Bifaciality 80%
Operating Temperature Range -40°C to +85°C
Temperature Coefficient (Pmax) -0.29%/°C
Temperature Coefficient (Voc) -0.25%/°C
Temperature Coefficient (Isc) 0.05%/°C
Nominal Module Operating Temperature (NMOT) 41 ± 3°C
Front Glass 2.0mm Heat Strengthened Glass with Anti-Reflective Coating
Back Glass 2.0mm Heat Strengthened Glass
Frame Anodized Aluminium Alloy
Junction Box IP68, 3 Bypass Diodes
Cable Size 4.0 mm²
Cable Length (+) 410mm / (-) 250mm
Connector Type T6 / MC4-EVO2 / MC4-EVO2A
Dimensions 2172 × 1303 × 33 mm
Weight 34.5 kg
Application Classification Class A
Fire Performance Type 29 (UL61730) / Class C (IEC61730)
Front Load Capacity 5400 Pa
Rear Load Capacity 2400 Pa
Product Warranty 12 Years
Linear Performance Warranty 30 Years
First-Year Degradation =1%
Annual Degradation =0.40%
Power Retention After 30 Years 87.4%

Key Features

620W High Power Output
N-Type TOPCon Cell Technology
Bi-Facial Dual Glass Design
Up to 85% Power Bifaciality
Lower LID & LeTID Degradation
Excellent Anti-PID Performance
Higher Energy Yield in Low-Light Conditions
Lower Temperature Coefficient (-0.29%/°C)
Heavy Snow Load Resistance up to 5400 Pa
Wind Load Resistance up to 2400 Pa
IP68 Rated Junction Box
Lower LCOE and System Cost
12-Year Product Warranty
30-Year Linear Power Warranty
Annual Power Degradation Only 0.40%
Product Details Reviews Shipping & Returns User Manual

Canadian 620 Watt N Type Bi-Facial Solar Panel

The Canadian Solar TOPBiHiKu7 620W N-Type Bi-Facial Solar Panel is a premium high-efficiency solar module designed for utility-scale, commercial, and industrial solar projects. Built with advanced N-Type TOPCon cell technology, the panel delivers exceptional power generation, lower degradation rates, and enhanced reliability over its lifetime.

Featuring a dual-glass bifacial design, the module can generate additional power from the rear side, offering up to 85% bifaciality and significantly increasing energy yield. The panel also benefits from superior Anti-PID and Anti-LeTID performance, ensuring long-term stability and reduced power loss.

With a maximum efficiency of 21.9%, robust mechanical durability, and a 30-year linear performance warranty, the TOPBiHiKu7 620W module provides an ideal solution for maximizing energy production while lowering system costs and LCOE.

Canadian 620 Watt N Type Bi-Facial Solar Panel Price In Pakistan
Canadian 620 Watt N Type Bi-Facial Solar Panel
Looking to purchase Canadian 620 Watt N Type Bi-Facial Solar Panel in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
