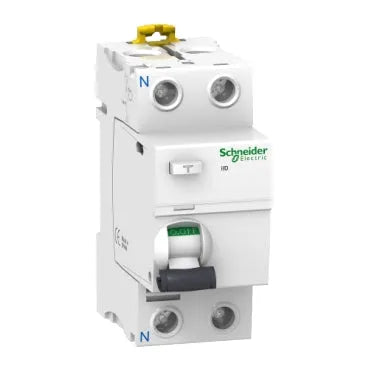

Schneider 2 Pole Residual Current Circuit Breaker 30mA-300mA
Availability: Out of stock

Schneider 2 Pole Residual Current Circuit Breaker 30mA-300mA

Product SKU: A9R11225
Rs.12,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range Acti9
Model iID
Component Type Residual current circuit breaker (RCCB)
Device short name iID
Poles description 2 Pole
Net weight 0.21 kg
Colour White
Neutral position Left
Rated current [In] 25 Amp, 40 Amp, 63 Amp
Network type AC
Earth-leakage sensitivity 30 mA - 300 mA
Earth-leakage protection class Type AC
Device Location in System Outgoer
Network Frequency 50/60 Hz
Rated Operational Voltage [Ue] 220...240 V AC 50/60 Hz
Residual Current Tripping Technology Voltage independent
Rated Breaking and Making Capacity Idm 1500 A / Im 1500 A
Rated conditional short-circuit current 10 kA
Rated Insulation Voltage [Ui] 500 V AC 50/60 Hz
Rated Impulse Withstand Voltage [Uimp] 6 kV
Control Type Toggle
Mounting mode Clip-on
Mounting support DIN rail
Mechanical durability 20000 cycles
Electrical durability AC-1: 15000 cycles
Locking options description Padlocking device
Wire stripping length 14 mm for top or bottom Connection
Tightening torque 3.5 N.m top or bottom
Standards EN/IEC 61008-1
IP degree of protection IP20 conforming to IEC 60529 / IP40 (modular enclosure) conforming to IEC 60529
Pollution Degree 3
Electromagnetic Compatibility 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
Ambient air temperature for operation -5…60 °C
Ambient air temperature for storage -40…85 °C

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Schneider 2 Pole Residual Current Circuit Breaker 30mA-300mA


This iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A, 40A, 63A In-rated current, a sensitivity of 30mA - 300mA with an AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on the front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. Mechanical endurance is going up to 20000 cycles and electrical endurance going up to 15000 cycles. The UE operational voltage is 220VAC to 240VAC. The Ui-rated insulation voltage is 500VAC. The Uimp-rated impulse withstands a voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in the modular enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.
