Schneider Domae 1 Pole Miniature Circuit Breaker 6 kA
Availability: In Stock

Schneider Domae 1 Pole Miniature Circuit Breaker 6 kA

Product SKU: DOMF01106
Rs.1,250

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range Domae
Component Type Miniature circuit-breaker
Device application Protection
Poles description 1 Pole
Number of protected poles 1
[In] rated current 6 A, 10 A, 16 A, 20 A, 32 A, 40 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity Icn 6000 A
Quality labels CE
Weight 0.190kg
Network frequent 50/60 Hz
[Ue] rated operational voltage 230 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
control type Toggle
Mounting mode Clip-on
Mounting support DIN rail
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Standards IEC 60898-1
Product certifications SNI
IP degree of protection IP20 conforming to IEC 60529 / IP40 (modular enclosure) conforming to IEC 60529
Relative humidity 95 % at 55 °C
Ambient air temperature for operation -5…60 °C
Ambient air temperature for storage -40…85 °C

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

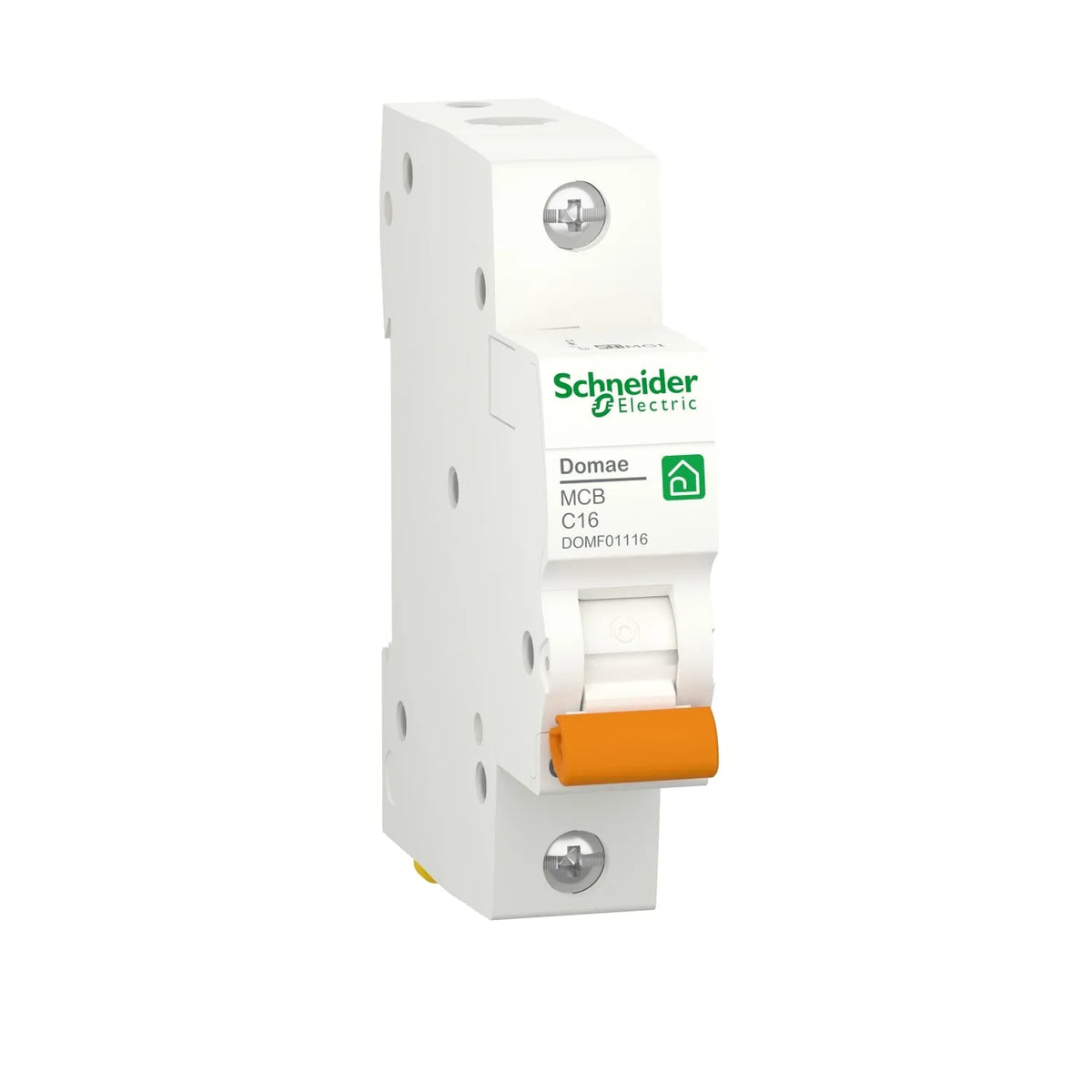

Schneider Domae 1 Pole Miniature Circuit Breaker 6 kA



This Domae product is a low-voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 6A, 10A, 16A, 20A, 32A, 40A In-rated current and C tripping curve. The Icn-rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It is compliant with the IEC 60898-1 standard. This miniature circuit breaker combines functions of circuit protection against short circuits and overload current, control and isolation. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The UE operational voltage is going from 230VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. Its width is 2 pitches of 9mm. The product's color is white (RAL9003). The dimensions are (W) 18mm x (H) 81mm x (D) 71.5mm. The weight is 0.095kg. According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in the enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
