Schneider EZC400H 3 Pole MCCB Circuit Breaker 50 kA Price in Pakistan
  • Schneider EZC400H 3 Pole MCCB Circuit Breaker 50 kA Price in Pakistan

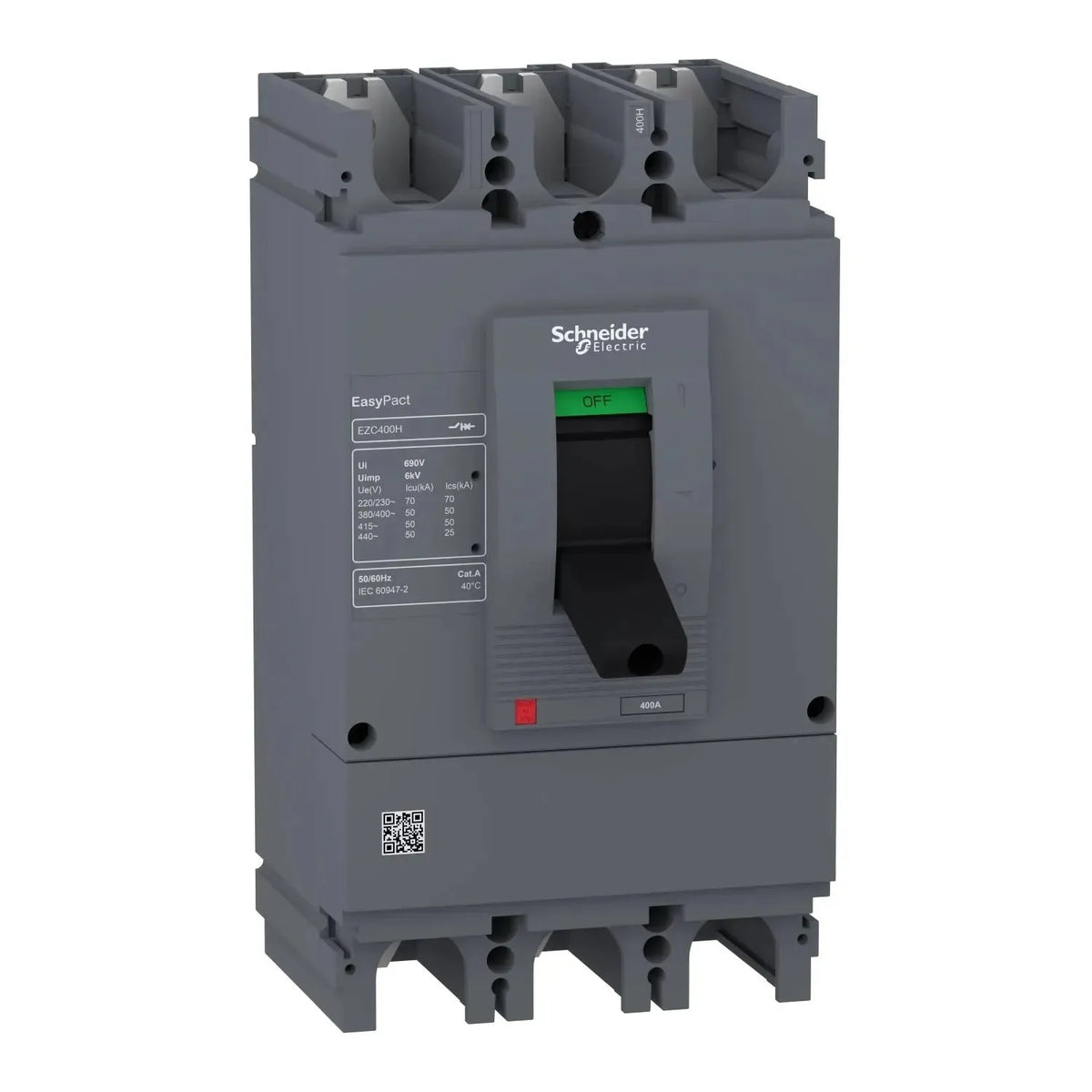

Schneider EZC400H 3 Pole Molded Case Circuit Breaker 50 kA
Availability: In Stock

Schneider EZC400H 3 Pole Molded Case Circuit Breaker 50 kA

Product SKU: EZC400H3320N
Rs.130,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range Of product EasyPact
Product or component type Circuit breakerEZC400H
circuit breaker name Easypact EZC400H
Device application Distribution
Poles description 3P
Protected poles description 3t
Network type AC/DC
Network frequency 50/60 Hz
[In) rated current 400 A at 40 oc
[UiJ rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse Withstand voltage 6 kV conforming to IEC 60947-2
[Uel rated operational voltage 250 V DC conforming to IEC 60947-2 / 440 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code H
Breaking capacity 50 kA
Suitability for isolation Yes conforming to IEC 60947-2
utilisation category Category A
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit rating 320 A at 50 oc
Protection type Overload protection / Short-circuit protection
Pollution degree 3 conforming to IEC 60947 Standards: EWIEC 60947-2 / GBIT 14048.2 / EWIEC 60947-1 / JIS C8201-2-2
IP degree of protection IP20 conforming to IEC 60529
1K degree Of protection IK07 conforming to EN 50102
ambient air temperature for operation -25.. 70 c
Ambient air temperature for storage -35.. 85 c

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Schneider EZC400H 3 Pole Molded Case Circuit Breaker 50 kA


This is a 320A, 400A circuit breaker for EasyPact EZC400H. This product can work below rated operational voltage(Ue) 440VAC at 50/60Hz. The ultimate breaking capacity(Icu) is 50kA at 440V, in terms of complete range Ics=100%Icu(Ics= 50%Icu at 440V. This version of the product is designed with 3 pole frame with detection on 3 poles, equipped TMD trip unit for thermal-magnetic protection. It is in compliance with standard IEC60947, CE certification, and some independent labs (KEMA, ASEFA, TUV) or third-party Tilva. This device is certified for operation in a pollution degree III environment as defined by IEC60947 and passes the test of extreme atmospheric conditions. The device can be mounted vertically or horizontally in a metal enclosure, and against safety risk by padlocking. The degree of protection is IP40 for the direct rotary handle and IP54 for the extended rotary handle. These series have slots used for indication or voltage release auxiliaries positioning, depending on where it is inserted in the device behind the front cover of the circuit breaker. The fixed dimension is 140mm(width), 255mm(height), 110mm(Depth).
