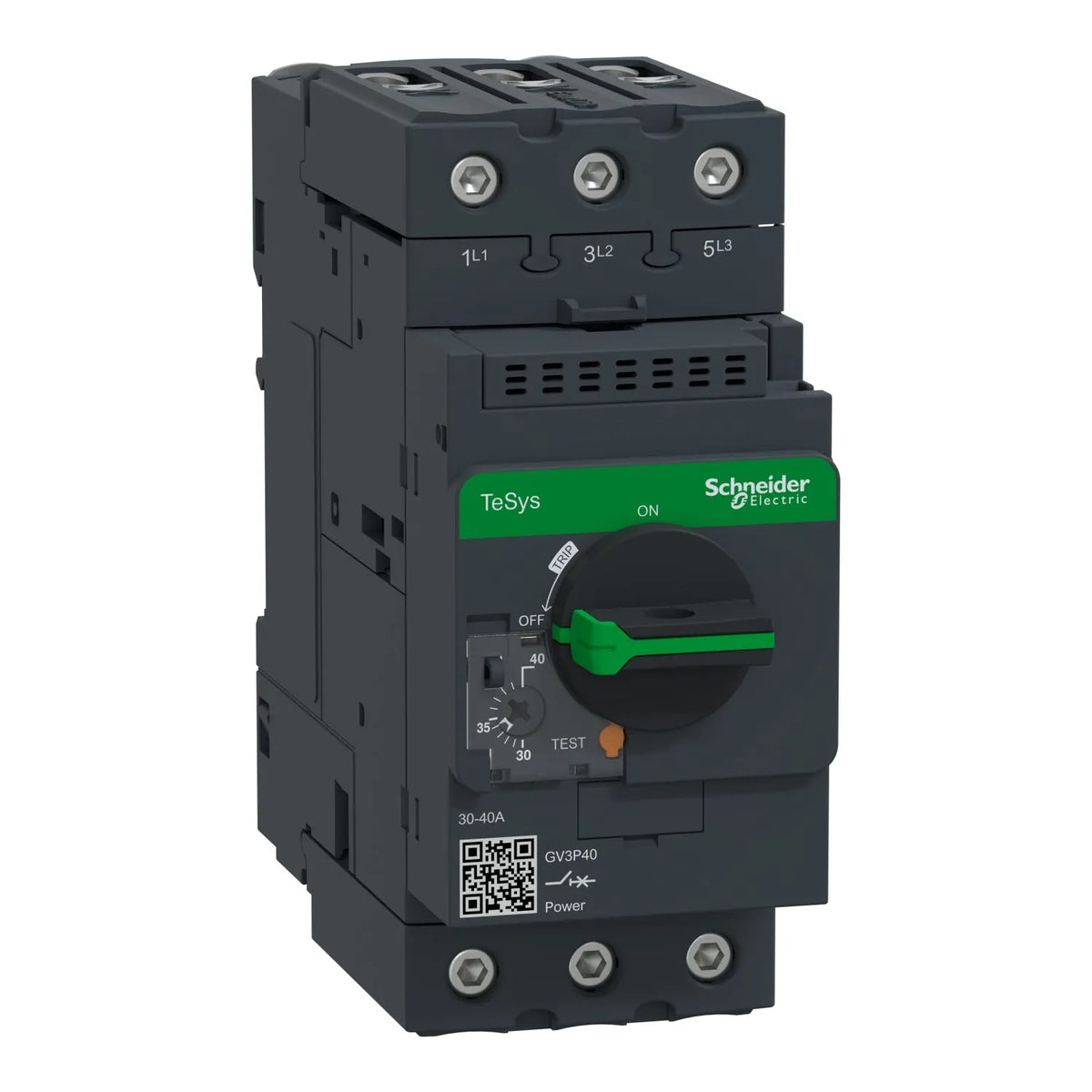

Schneider GV3P40 3 Pole 30-40A Motor Protection Circuit Breaker
Availability: In Stock

Schneider GV3P40 3 Pole 30-40A Motor Protection Circuit Breaker

Product SKU: GV3P40
Rs.65,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range TeSys Deca
Product name TeSys GV3 / TeSys Deca
Product or component type Motor circuit breaker
Net weight 0.96 kg
Device short name GV3P
Device application Motor protection
Trip unit technology Thermal-magnetic
Poles description 3P
Network type AC
Utilisation category AC-3 conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-4-1
35 mm symmetrical DIN rail clipped
Panel screwed (with 3 x M4 screws)
Control type Rotary handle
Rated Current [In] 40 A Thermal Protection Adjustment: 30…40 A conforming to IEC 60947-4-1
Magnetic tripping current 560 A
Conventional free air thermal current [Ith] 40 A conforming to IEC 60947-4-1
Rated operational voltage [Ue] 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated insulation voltage [Ui] 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage [Uimp] 6 kV conforming to IEC 60947-2
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Suitability for isolation Yes conforming to IEC 60947-1
Power dissipation per pole 8 W
Mechanical durability 50000 cycles
Electrical durability 50000 cycles for AC-3 at 415 V In
Standards EN/IEC 60947-2 / EN/IEC 60947-4-1 / UL 60947-4-1 / CSA C22.2 No 60947-4-1
IK degree of protection IK09 enclosure
IP degree of protection IP20 conforming to IEC 60529
Climatic withstand Conforming to IACS E10
Ambient Air Temperature for Storage -40…80 °C
Fire Resistance 960 °C conforming to IEC 60695-2-11
Ambient Air Temperature for Operation -20…60 °C
Operating altitude 3000 m

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider GV3P40 3 Pole 30-40A Motor Protection Circuit Breaker


TeSys GV motor circuit breaker, 3 poles (3P), 40A/690V, for 3-phase motor applications 18.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 30-40A, magnetic tripping at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
