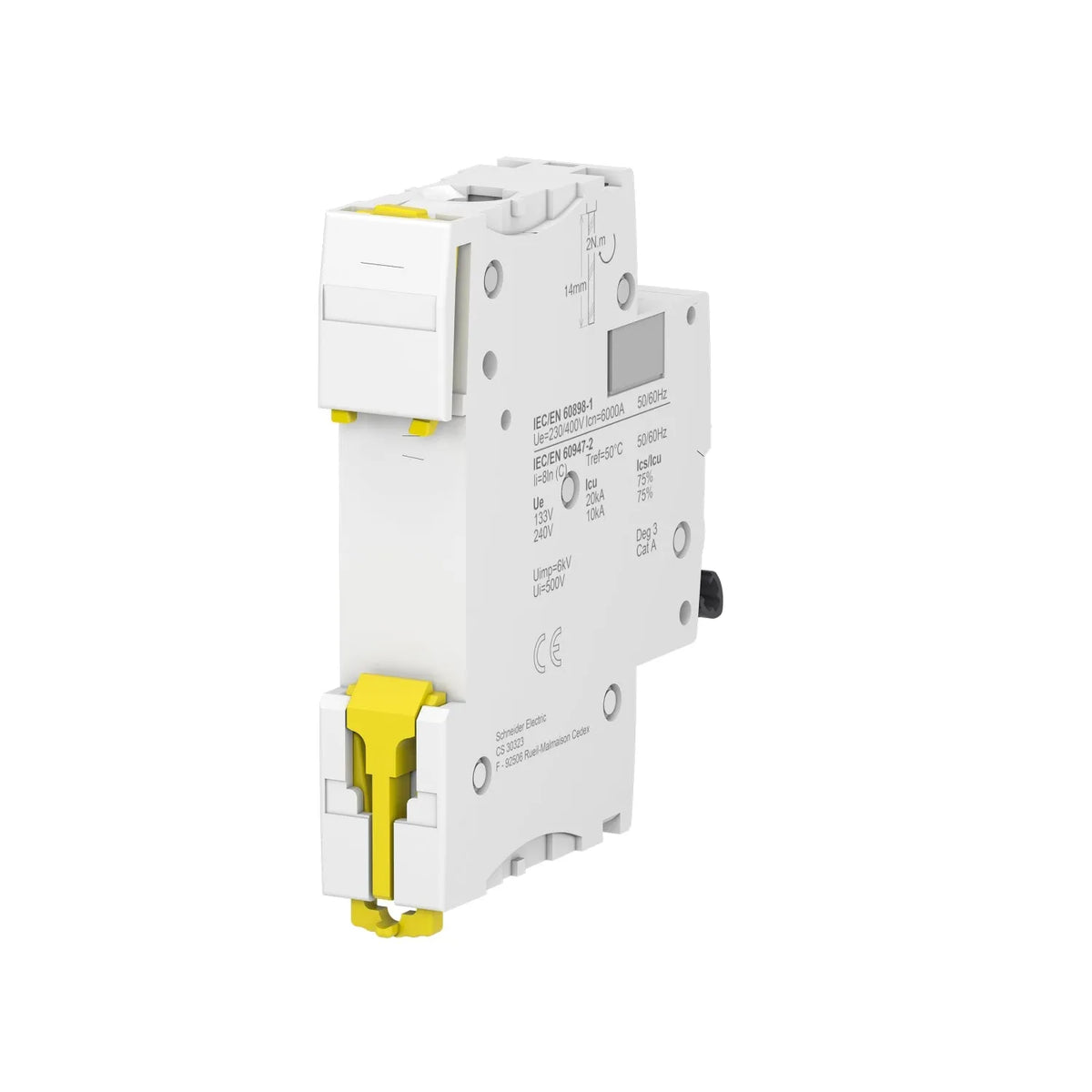

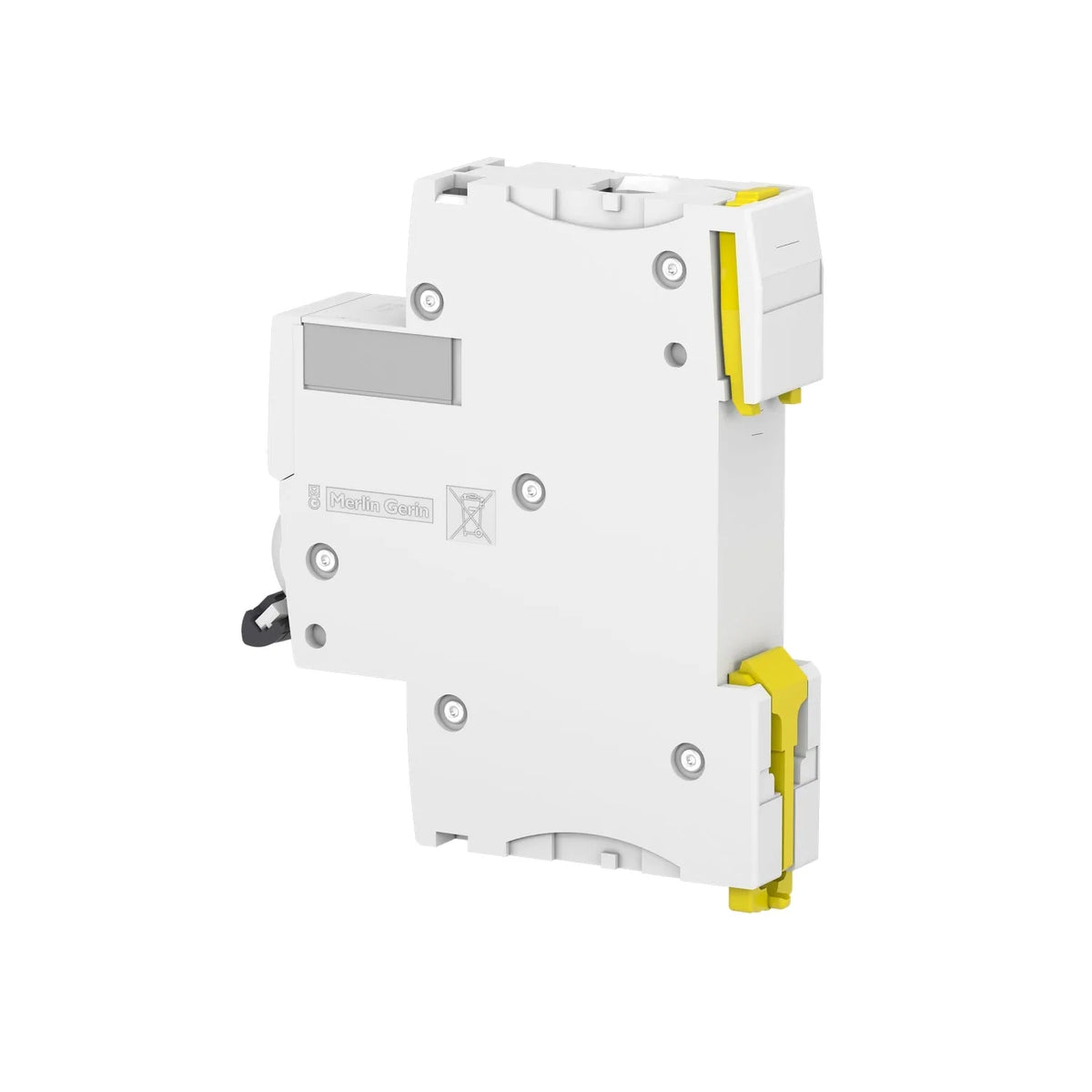

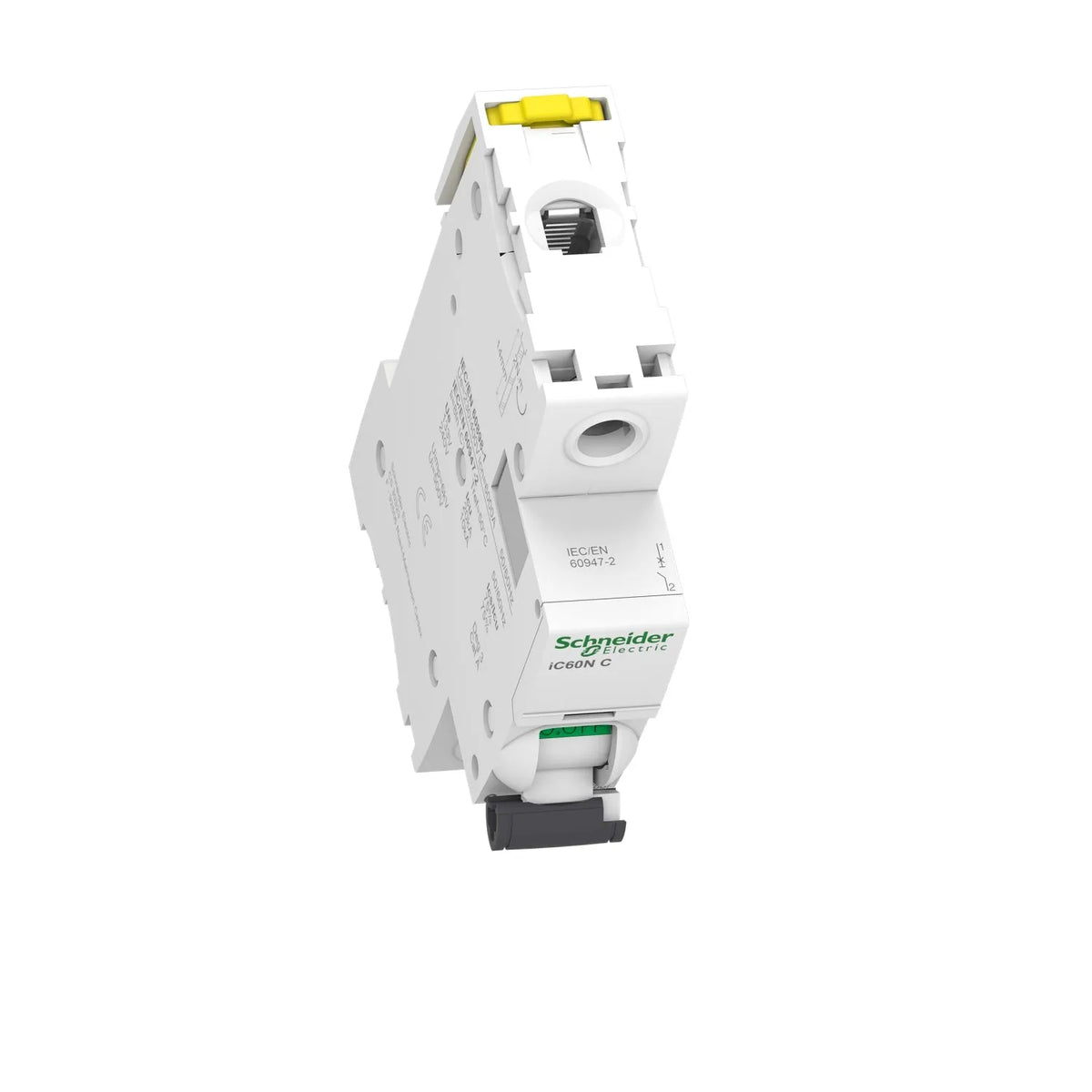

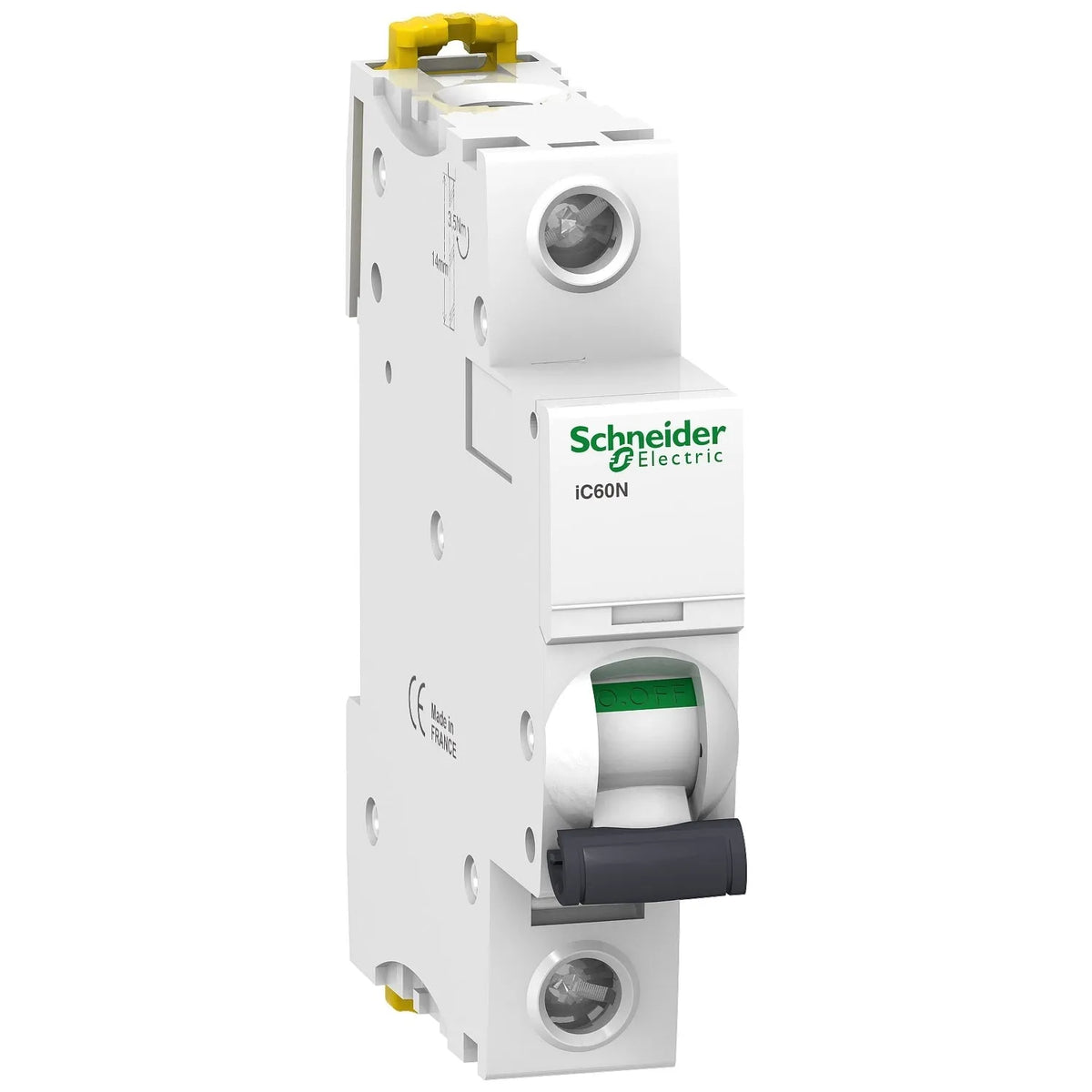

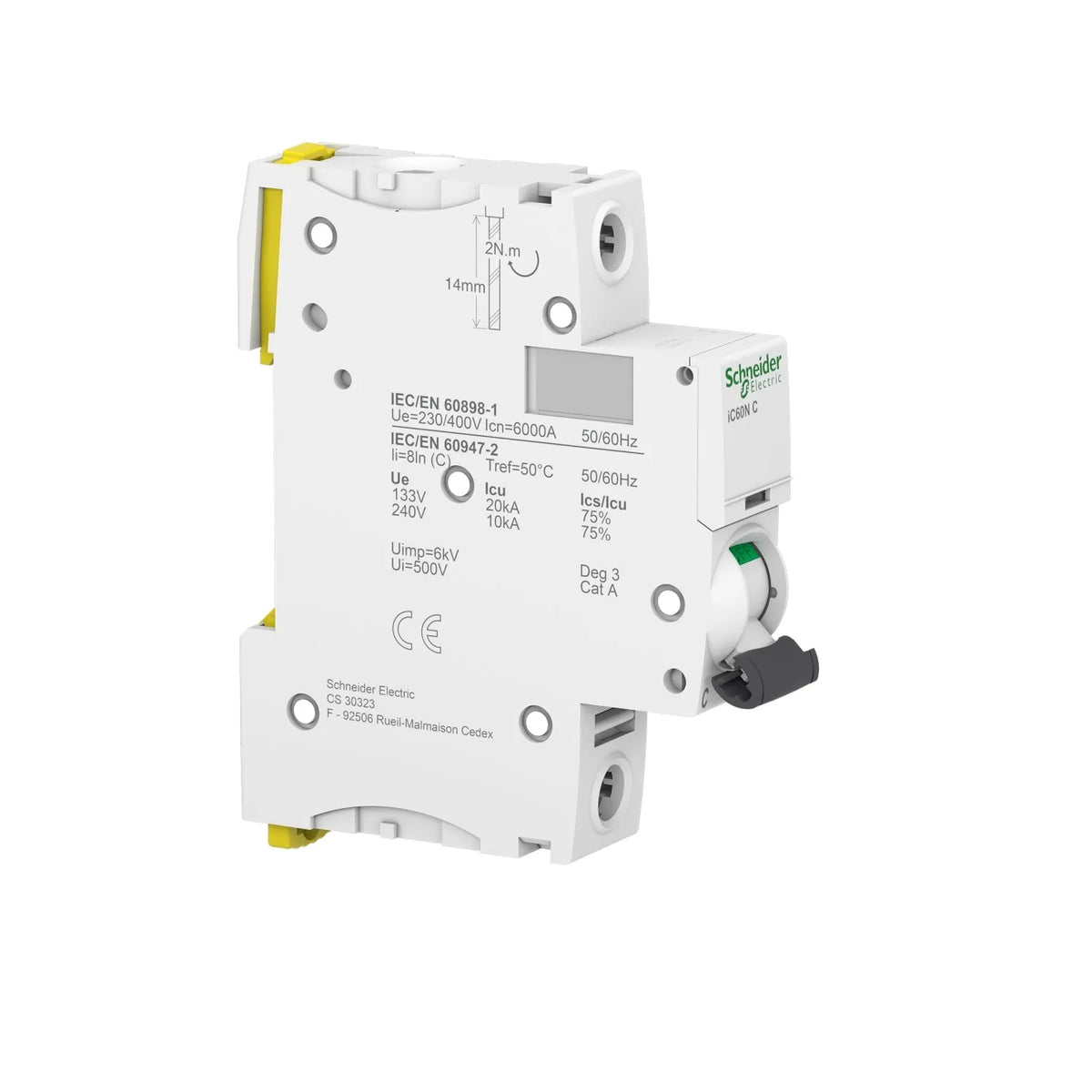

Schneider iC60N 1 Pole Miniature Circuit Breaker 6 KA - 10 kA
Availability: In Stock

Schneider iC60N 1 Pole Miniature Circuit Breaker 6 KA - 10 kA

Product SKU: A9F74110
Rs.2,700

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Device application Distribution
Product name iC60
Product or component type Miniature circuit-breaker
device short name IC60N
Poles description 1P
Number Of protected poles 1
[In] rated current 2A, 4A, 6A, 10A, 16A, 20A, 32A, 40A, 50A, 63A
Network type DC/AC
Trip unit technology Thermal-magnetic
Curve code c
Breaking capacity 6 kA - 10 kA
Quality labels NF
standards EN 60898-1 / IEC 60898-1 / EN 60947-2 / IEC 60947-2
Network frequency 50/60 Hz
Magnetic tripping limit 8 x In +/- 20 %
[Ics] rated service breaking capacity 6000 A
Limitation class 3 conforming to EN 60898-1 / 3 conforming to IEC 60898-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2 / 500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2 / 6 kV conforming to IEC 60947-2
Contact position indicator Yes
control type Toggle
Local signalling Trip indicator
Mounting mode Fixed
mounting support DIN rail
weight 0.215 kg
Color White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Single terminal (top or bottom) 1…25 mm² rigid / Single terminal (top or bottom) 1…16 mm² flexible
Wire stripping length 14 mm for top or bottom connection
Tightening torque 2 N.m top or bottom
earth-leakage protection Without

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Schneider iC60N 1 Pole Miniature Circuit Breaker 6 KA - 10 kA



This iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 2A, 4A, 6A, 10A, 16A, 20A, 32A, 40A, 50A and 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6kA - 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
