Schneider NS800N 3P 800A TMD Circuit Breaker 50 KA Price in Pakistan
  • Schneider NS800N 3P 800A TMD Circuit Breaker 50 KA Price in Pakistan
Schneider NS800N 3 Pole 800A Molded Case Circuit Breaker 50 kA
Availability: In Stock

Schneider NS800N 3 Pole 800A Molded Case Circuit Breaker 50 kA

Product SKU: C080N320FM
Rs.550,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range ComPacTgeneration
Product or component type Circuit breaker
Device application Distribution
Number of poles 3P
Protected poles description 3D
(In) rated current up to 65 oc 800 A at 50 oc
[Uel rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
utilisation category Category B
[Icu] rated ultimate short-circuit breaking capacity 50 kA
Performance level N 50kA415VAC
Trip unit name MicroLogic 2.0
Trip unit technology Electronic
Trip unit protection functions LI
control type Manually operated
Mounting mode Fixed
Mechanical durability 10000 cycles
Weight 14 kg
Pollution degree 3 conforming to IEC 60947
IP degree of protection IP40 conforming to IEC 60529
1K degree of protection IK07 conforming to EN 50102
Ambient air temperature for operation -25...70 c
Ambient air temperature for storage -50...85 c
Relative humidity 0...95 0/0
Operating altitude 0...2000 m without derating / 2000 m...5000 m with deratin

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

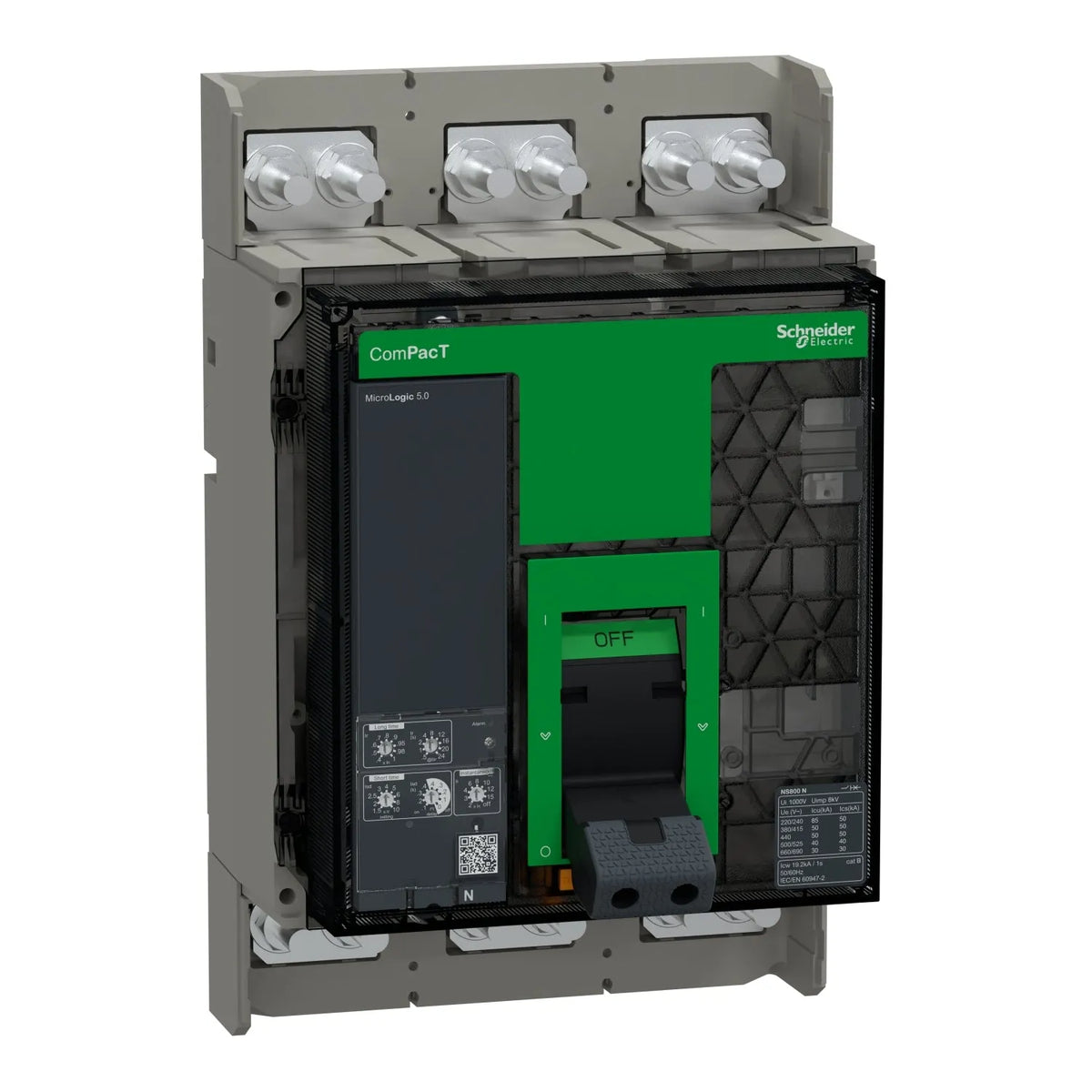

Schneider NS800N 3 Pole 800A Molded Case Circuit Breaker 50 kA



This circuit breaker is part of the new generation of ComPacT NS630bN to NS3200 range. ComPacT NS new generation keeps the same performance and comes with a new transparent front cover for auxiliaries visibility and a new toggle with ergonomic touch and optional LED trip status. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS800N is a complete 3 poles circuit breaker designed to optimize space and breaking capacity. It is a fixed circuit breaker manually operated. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. The circuit breaker can be manually operated with ON, OFF, or "push to trip" buttons. This product embeds an electronic MicroLogic 2.0 control unit, with an 800A rating. MicroLogic 2.0 control unit provides adjustable long-time and instantaneous protections (ANSI codes 49/50). This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Height) x 210mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with green packaging and green partnerships.
