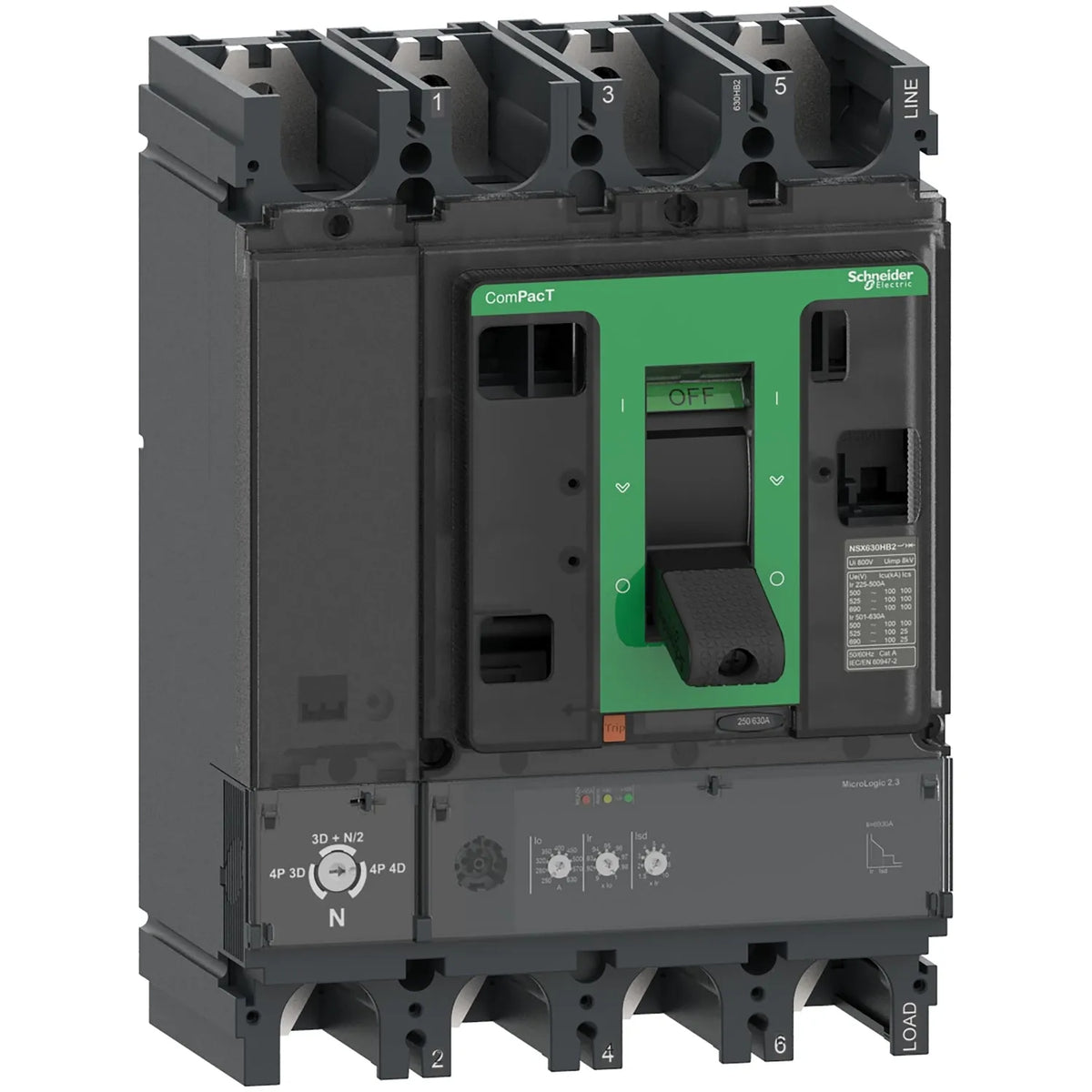

Schneider NSX400N 4 Pole Molded Case Circuit Breaker, 50 kA Price in Pakistan
  • Schneider NSX400N 4 Pole Molded Case Circuit Breaker, 50 kA Price in Pakistan
Schneider NSX400N 4 Pole Molded Case Circuit Breaker 50 kA
Availability: In Stock

Schneider NSX400N 4 Pole Molded Case Circuit Breaker 50 kA

Product SKU: C40N42D400
Rs.350,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range ComPacT new generation
Product name ComPacT NSX new generation
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 4D/ 3D + N/2/ 3D
Neutral position Left
[In] rated current 400 A at 40 oc
[Uel rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
utilisation category Category A
[Icu] rated ultimate short-circuit breaking capacity 50 kA
Performance level N 50kA415VAC
Trip unit name MicroLogic 2.3
Trip unit technology Electronic
Trip unit protection functions LSol
control type Toggle
Circuit breaker mounting mode Fixed
[I-Jil rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
Mechanical durability 15000 cycles
Electrical durability 12000 cycles at 440 V In/2 / 6000 cycles at 440 V In / 6000 cycles at 690 V In/2 / 3000 cycles at 690 V In
weight 7.9 kg
Standards EWIEC 60947
product certifications ccc, EAC, Marine
Overvoltage category Class II
Electrical shock protection class Class II
Pollution degree 3 conforming to IEC 60664-1
IP degree Of protection IP40 conforming to IEC 60529
1K degree of protection IK07 conforming to IEC 62262
ambient air temperature for operation -25.. 70 c
Ambient air temperature for storage -50...85 c
Relative humidity 0.-.95 0/0
Operating altitude 0...2000 m without derating / 2000 m...5000 m with derating

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider NSX400N 4 Pole Molded Case Circuit Breaker 50 kA


This ComPacT NSX400N is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with a 400A rating. MicroLogic 2.3 trip unit provides adjustable long-time and short-time protections and fixed instantaneous protection. This 4-pole version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX400N is part of Schneider Electric EcoStruxure Power architecture.
