Schneider NSX630N 4 Pole MCCB Breaker 50 kA Price in Pakistan
  • Schneider NSX630N 4 Pole MCCB Breaker 50 kA Price in Pakistan

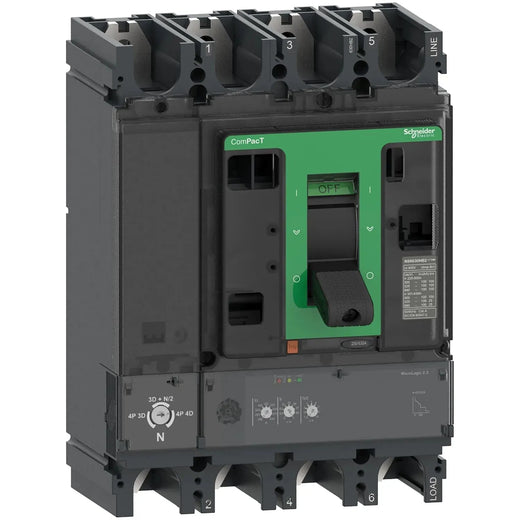

Schneider NSX630N 4 Pole Molded Case Circuit Breaker 50 kA
Availability: In Stock

Schneider NSX630N 4 Pole Molded Case Circuit Breaker 50 kA

Product SKU: C63N42D630
Rs.430,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range ComPacT new generation
Product name ComPacT NSX new generation
Device short name NSX630N
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 40/3D + N/2 3D
Neutral position Left
[In] rated current 630 A at 40 oc
[Uel rated operational voltage 690 V AC 50/60 Hz
Network type AC
Network frequency 50/60 Hz
Suitability for isolation Yes conforming to EN/IEC 60947-2
utilisation category Category A
[Icu] rated ultimate short-circuit breaking capacity 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Performance level N 50 kA415VAC
Trip unit name MicroLogic 2.3
Trip unit technology Electronic
Trip unit protection functions LSol
control type Toggle
Circuit breaker mounting mode Fixed
[I-Jil rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
Mechanical durability 15000 cycles
Electrical durability 8000 cycles at 440 V In/2 / 4000 cycles at 440 V In / 6000 cycles at 690 V In/2 / 2000 cycles at 690 V In
Net weight 8.13 kg
Standards EN/IEC 60947
Pollution degree 3 conforming to IEC 60664-1
IP degree Of protection IP40 conforming to IEC 60529
1K degree of protection IK07 conforming to IEC 62262
ambient air temperature for operation -25.. 70 c
Ambient air temperature for storage -50...85 c
Relative humidity 0...95 %
Operating altitude 0...2000 m without derating / 2000 m...5000 m with derating

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider NSX630N 4 Pole Molded Case Circuit Breaker 50 kA


This ComPacT NSX630N is a complete 4P 4D fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with a 630A rating. MicroLogic 2.3 trip unit provides adjustable long-time and short-time protections and fixed instantaneous protection. This 4-pole version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX630N is part of Schneider Electric EcoStruxure Power architecture.

Schneider NSX630N 4 Pole MCCB Breaker 50 kA Price in Pakistan
Schneider NSX630N 4 Pole Molded Case Circuit Breaker 50 kA
Looking to purchase Schneider NSX630N 4 Pole Molded Case Circuit Breaker 50 kA in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
