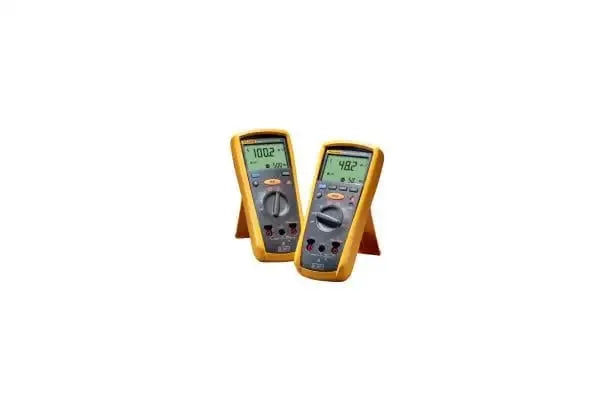

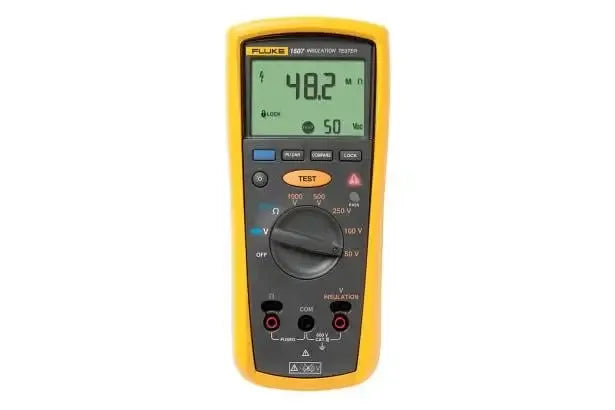

Fluke 1507 Insulation Resistance Tester

Name: Fluke 1507 Insulation Resistance Tester
Brand: Fluke
Price: 220000.0 PKR
Availability: OutOfStock

Product SKU: FLU_1507

Rs.220,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

Specifications

Type Digital Multimeters

Battery Life Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off

Storage temperature -40°C to 60°C (-40°F to 140°F)

Battery Four AA batteries (NEDA 15A or IEC LR6)

Measurement Range 0.01 MΩ to 10 GΩ

Operating Temperature -20°C to 55°C (-4°F to 131°F)

Vibration Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument

weight 550 g (1.2 lb)

Dimension 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)

Key Features

Performs insulation tests from 0.01 MΩ to 10 GΩ

Includes live circuit detection to prevent insulation test if voltage >30 V is detected

Includes auto-discharge of capacitive voltage for added user protection

Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ

Provides lo-ohms earth-bond continuity (200 mA)

Simplifies repetitive or hard-to-reach testing with the remote test probe

Saves battery power with auto power off

Presents results on a large, backlit display

Features CAT IV 600 V overvoltage category rating

Comes with remote probe, test leads, test probes, alligator clips and one-year warranty

Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work

Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
