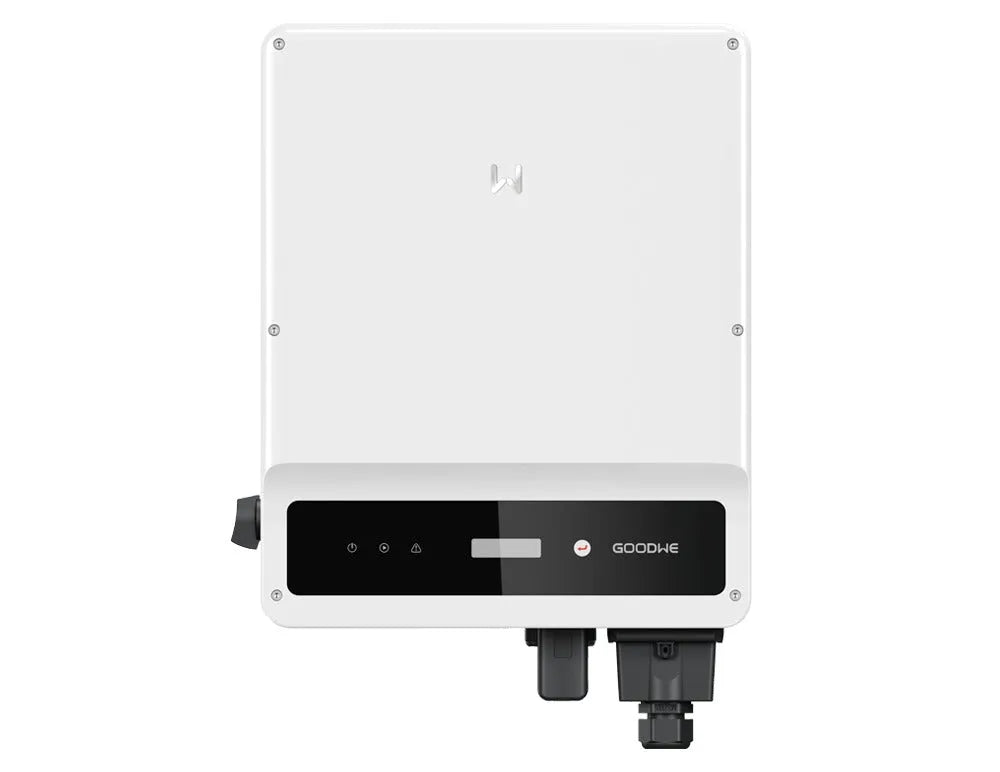

Goodwe 12kw HT Series On-Grid Solar Inverter
Availability: Out of stock

Goodwe 12kw HT Series On-Grid Solar Inverter

Product SKU: GW12K-SDT-G2-PLUS
Price on Request

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

WhatsApp Inquiry

Specifications

Max. Input Voltage (V) 1100
MPPT Operating Voltage Range (V) 140 ~ 950
Start-up Voltage(V) 180
Nominal Input Voltage (V) 620
Max. Input Current per MPPT (A) 30
Max. Short Circuit Current per MPPT(A) 37.5
Number of MPP trackers 2
Number of Strings per MPPT 2
Nominal Output Power (W) 12000
Nominal Output Apparent Power (VA) 12000
Max. AC Active Power (W) 13200
Max. AC Apparent Power (VA) 13200
Nominal Output Voltage (V) 380 / 400/ 415, 3L / N / PE
Nominal AC Grid Frequency (Hz) 50 / 60
Max Output Current (A) 19.1
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion < 3%
Max. Efficiency 98.4 %
European Efficiency 97.8 %
DC Surge Protection Type II
AC Surge Protection Type III\ Operating Temperature Range: (°C) -30 ~ +60
Relative Humidity 0 ~ 100 %
Max. Operating Altitude (m) 4000
Cooling Method Smart Fan Cooling
Display LED, LCD (Optional, WLAN + APP)
Communication RS485, WiFi LAN, or 4G (optional)
Weight (kg) 23.5
Dimension (W x H x D mm) 415 x 511 x 198
Noise Emission (dB) < 45
Topology Non–isolated
Self-consumption at Night (W) < 1
Ingress Protection Rating IP65
DC Connector MC4 (4 ~ 6 mm²)
AC Connector OT Terminal

Key Features

Smart Control & Monitoring
Smart Shadow Scan with an adjustable scan interval
Multi-protocol compatibility for smart home integration
High Generation to Cut Bills
Up to 200% DC input oversizing & 110% AC output overloading
Up to 16 A max. DC input current per string
Superb Safety & Reliability
Optional AFCI
Optional exchangeable DC Type II SPD & SPD failure alarm
Friendly & Thoughtful Design
Fanless design for quiet operations
Elegant and compact design
Product Details Reviews Shipping & Returns User Manual

Goodwe 12kw HT Series On-Grid Solar Inverter

The Goodwe 12kW On-Grid Solar Inverter is a high-performance solution for solar energy systems. With a nominal output power and apparent power of 12000W and 12000VA respectively, it efficiently converts solar energy into usable electricity. It optimizes power generation even in varying conditions, featuring a maximum input voltage of 1100V and an MPPT operating voltage range of 140 ~ 950V. Its start-up voltage of 180V ensures quick and reliable operation. Equipped with smart control and monitoring capabilities, including Smart Shadow Scan with adjustable intervals and multi-protocol compatibility, it allows seamless integration into smart home systems for enhanced efficiency and convenience.
