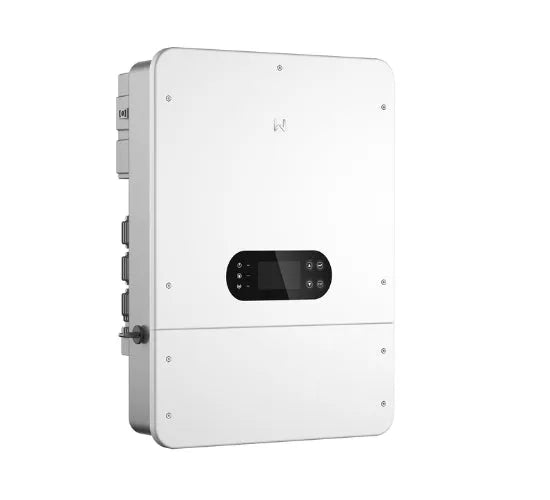

GoodWe GW12K-ET-L-G10 3 Phase Hybrid Solar Inverter Price In Pakistan
  • GoodWe GW12K-ET-L-G10 3 Phase Hybrid Solar Inverter Price In Pakistan
GoodWe GW12K-ET-L-G10 3 Phase Hybrid Solar Inverter
Availability: In Stock

GoodWe GW12K-ET-L-G10 3 Phase Hybrid Solar Inverter

Product SKU: GW12K-ET-L-G10
Rs.520,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Hybrid Solar Inverter
Phase Type Three Phase
Battery Type Lithium-Ion & Lead-Acid
Nominal Battery Voltage 48V
Battery Voltage Range 40 – 60V
Number of Battery Inputs 1
Maximum Continuous Charging Current 250A
Maximum Continuous Discharging Current 250A
Maximum Charging Power 12,000W
Maximum Discharging Power 13,200W
Maximum PV Input Power 24,000W
Maximum Input Voltage 1000V
MPPT Operating Voltage Range 150 – 850V
Start-Up Voltage 180V
Nominal Input Voltage 620V
Maximum Input Current per MPPT 20A / 20A / 20A
Maximum Short Circuit Current per MPPT 26A / 26A / 26A
Number of MPPT Trackers 3
Number of Strings per MPPT 3 (1+1+1)
Nominal Output Power 12,000W
Nominal Apparant Power Output 12,000VA
Maximum Apparant Power Output 13,200VA
Nominal Output Voltage 400/380V, 3L/N/PE
Output Voltage Range 170 – 290V
Nominal Grid Frequency 50/60Hz
Grid Frequency Range 45 – 65Hz
Maximum AC Output Current 19.1A
Power Factor ~1 (Adjustable from 0.8 Leading to 0.8 Lagging)
Total Harmonic Distortion <3%
Backup Nominal Apparant Power 12,000VA
Maximum Backup Output Power 13,200VA (24,000VA for 10 Seconds)
Generator Compatibility Yes
Maximum Efficiency 97.8%
European Efficiency 97.4%
Maximum Battery to AC Efficiency 95.5%
MPPT Efficiency 99.9%
PV String Current Monitoring Integrated
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
PV Reverse Polarity Protection Integrated
Battery Reverse Polarity Protection Integrated
Anti-Islanding Protection Integrated
AC Overcurrent Protection Integrated
AC Short Circuit Protection Integrated
AC Overvoltage Protection Integrated
DC Switch Integrated
DC Surge Protection Type II
AC Surge Protection Type II
AFCI Protection Optional
Rapid Shutdown Optional
Remote Shutdown Integrated
Operating Temperature Range -35°C to +60°C
Relative Humidity 0 – 95%
Maximum Operating Altitude 4000m
Cooling Method Smart Fan Cooling
User Interface LCD
Communication with BMS RS485 / CAN
Communication with Meter RS485
Communication with Portal WiFi / 4G
Weight 47.5kg

Key Features

12KW Three Phase Hybrid Solar Inverter
ET LV Series Energy Storage Inverter
48V Low Voltage Battery Support
Compatible with Lithium-Ion & Lead-Acid Batteries
3 Independent MPPT Trackers
Up to 200% PV Oversizing
20A Input Current per String
Seamless Switching Time <4ms
Generator Compatible with Battery Charging
Unbalanced Output up to 150%
Dual Battery Energy Management
Type II Surge Protection on AC & DC Sides
Optional AFCI Protection
Smart Monitoring via WiFi & 4G
Product Details Reviews Shipping & Returns User Manual

GoodWe GW12K-ET-L-G10 3 Phase Hybrid Solar Inverter

The GoodWe GW12K-ET-L-G10 is a powerful 12KW Three Phase Hybrid Solar Inverter designed for residential and small commercial energy storage systems. Part of the advanced ET LV Series, it seamlessly integrates solar generation, battery storage, and grid power to maximize self-consumption and energy independence.

Supporting 48V low-voltage lithium-ion and lead-acid batteries, the inverter provides flexible battery compatibility and reliable backup power during grid outages. With 3 MPPT trackers, up to 200% PV oversizing, and 20A input current per string, it is optimized for modern high-power solar modules.

The ET LV Series features seamless switching in less than 4ms, generator compatibility, intelligent monitoring, and advanced protection functions including Type II surge protection on both AC and DC sides. Its IP66-rated enclosure and smart fan cooling ensure reliable operation in demanding environments.

GoodWe GW12K-ET-L-G10 3 Phase Hybrid Solar Inverter Price In Pakistan
GoodWe GW12K-ET-L-G10 3 Phase Hybrid Solar Inverter
Looking to purchase GoodWe GW12K-ET-L-G10 3 Phase Hybrid Solar Inverter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
