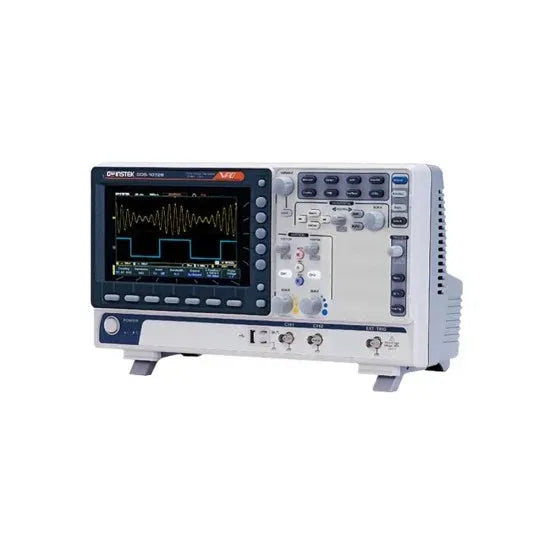

GW Instek GDS-1054B Digital Storage Oscilloscope
Product SKU:
GDS-1054B
Rs.198,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Type
Storage Oscilloscope
Bandwidth
50MHz
Channels
4 analog channels
Connectivity
USB Host, USB Device, LAN
Display
7-inch TFT WVGA (800x480)
Input Impedance
1MO ±2%
Math Functions
Add, Subtract, Multiply, FFT
Memory Depth
10M points per channel
Power Supply
100–240V AC, 50/60Hz
Real-Time Sample Rate
1GSa/s
Time Base Range
1ns/div to 100s/div
Trigger Modes
Edge, Pulse, Video, Slope, Alternate
Vertical Resolution
8-bit
Vertical Sensitivity
1mV/div to 10V/div
Key Features
50MHz bandwidth
10M memory depth per channel
32 automatic measurement functions
4 independent analog input channels
7-inch high-resolution WVGA display
Compact, lightweight, and fanless design
Data logging and waveform recording support
FFT and math operations built-in
Real-time sampling rate of 1GSa/s
USB host, USB device, and LAN connectivity
Product Details
Reviews
Shipping & Returns
User Manual
GW Instek GDS-1054B Digital Storage Oscilloscope
The GW Instek GDS-1054B is a 4-channel digital storage oscilloscope engineered to deliver precision and performance for both beginners and experienced professionals. With a 50MHz bandwidth, 1GSa/s real-time sampling rate, and 10M memory depth per channel, it captures and analyzes complex signals with ease. The 7-inch WVGA display ensures clear waveform visualization, while built-in features like FFT, auto measurement, data logging, and USB/LAN connectivity make it a versatile tool for education, R&D, and field troubleshooting. Compact and user-friendly, the GDS-1054B provides outstanding value and performance for modern electronic testing needs.
