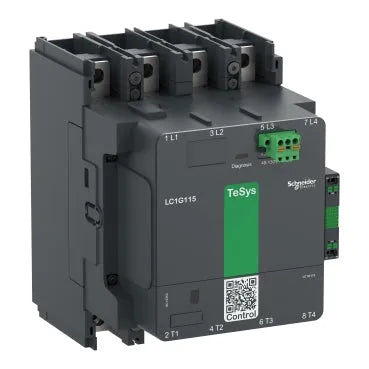

Schneider LC1-G1854 TeSys Giga 4 pole (4NO) AC-1 440V 275A AC/DC Coil
  • Schneider LC1-G1854 TeSys Giga 4 pole (4NO) AC-1 440V 275A AC/DC Coil
Schneider LC1-G1854 TeSys Giga 4 pole (4NO) AC-1 440V 275A AC/DC Coil
Availability: In Stock

Schneider LC1-G1854 TeSys Giga 4 pole (4NO) AC-1 440V 275A AC/DC Coil

Product SKU: LC1G1854KUEN
Rs.290,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Series TeSys Giga
Product Type Contactor
Device Short Name LC1G
Application Power switching
Utilization Category AC-3 : AC-3e : AC-1 : AC-5a : AC-5b : AC-6a : AC-6b : DC-1 : DC-3 : DC-5
Poles 4P (4NO)
Rated Operational Voltage ≤ 1000V AC 50/60 Hz : ≤ 460V DC
Rated Current 185A (AC-3) : 305A (AC-1)
Control Voltage 100-250V AC/DC
Impulse Withstand Voltage 8kV
Thermal Current 305A (at 40°C)
Breaking Capacity 1610A at 440V
Short-Time Withstand Current 1.5kA (10s) : 0.92kA (30s) : 0.74kA (1min) : 0.5kA (3min) : 0.4kA (10min)
Associated Fuse Rating 200A aM (≤ 440V motor) : 160A aM (≤ 690V motor) : 315A gG (≤ 690V)
Insulation Voltage 1000V
Power Dissipation Per Pole 20W (AC-1, 305A) : 6W (AC-3, 185A)
Making Capacity 2310A at 440V
Mechanical Durability 8M cycles
Coil Technology Built-in bidirectional peak limiting
Operating Time 40-70ms (closing) : 15-50ms (opening)
Maximum Operating Rate 600 cycles/hour (AC-3, AC-3e) : 300 cycles/hour (AC-1)
Mounting Support Plate
Certifications CB Scheme : CCC : cULus : EAC : CE : UKCA : EU-RO-MR by DNV-GL
Dimensions Height 193mm : Width 143mm : Depth 193mm
Net Weight 4.2kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider LC1-G1854 TeSys Giga 4 pole (4NO) AC-1 440V 275A AC/DC Coil


TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 305A @440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 255mm x 143mm x 175mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.

Schneider LC1-G1854 TeSys Giga 4 pole (4NO) AC-1 440V 275A AC/DC Coil
Schneider LC1-G1854 TeSys Giga 4 pole (4NO) AC-1 440V 275A AC/DC Coil
