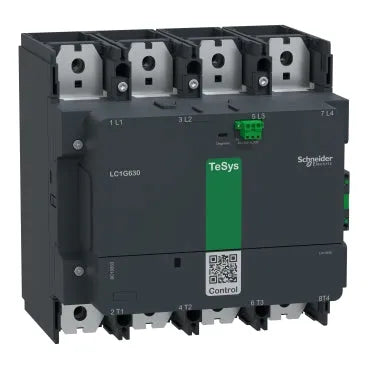

Schneider LC1-G6304 TeSys Giga 4 pole (4NO) AC-1 440V 550A AC/DC Coil
Availability: In Stock

Schneider LC1-G6304 TeSys Giga 4 pole (4NO) AC-1 440V 550A AC/DC Coil

Product SKU: LC1G6304KUEN
Rs.1,500,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range TeSys
Range of Product TeSys Giga
Product/Component Type Contactor
Device Short Name LC1G
Contactor Application Power Switching
Utilisation Category AC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
Poles Description 4P (4 NO Contacts)
[Ue] Rated Operational Voltage ≤1000 V AC 50/60 Hz, ≤460 V DC
[Ie] Rated Operational Current 630 A @ ≤440 V AC-3 (<60°C) 1050 A @ ≤1000 V AC-1 (<40°C)
[Uc] Control Circuit Voltage 100–250 V AC/DC
Control Circuit Voltage Limits Operational: 0.8 Uc Min – 1.1 Uc Max (<60°C) Drop-out: 0.1 Uc Max – 0.45 Uc Min (<60°C) [Uimp] Rated Impulse Withstand Voltage: 8 kV
Overvoltage Category III
[Ith] Conventional Free Air Thermal Current 1050 A (40°C)
Rated Breaking Capacity 5550 A @ 440 V
[Icw] Rated Short-Time Withstand Current 5.05 kA (10 s) 4.4 kA (30 s) 3.4 kA (1 min) 2.2 kA (3 min) 1.6 kA (10 min)
Associated Fuse Rating 630 A aM @ ≤440 V (Motor) 500 A aM @ ≤690 V (Motor) 1250 A gG @ ≤690 V
Average Impedance 0.000065 Ohm
[Ui] Rated Insulation Voltage 1000 V
Power Dissipation per Pole 70 W (AC-1, 1050 A) 26 W (AC-3, 630 A)
Compatibility Code LC1G
Pole Contact Composition 4 NO
Auxiliary Contact Composition 1 NO + 1 NC
Irms Rated Making Capacity 7220 A @ 440 V
Coil Technology Built-in Bidirectional Peak Limiting
Safety Reliability Level B10d = 100,000 Cycles (Nominal Load, EN/ISO 13849-1) B10d = 1,800,000 Cycles (Mechanical Load, EN/ISO 13849-1)
Mechanical Durability 5 Million Cycles
Inrush Power 800 VA (50/60 Hz AC) 680 W (DC)
Hold-In Power Consumption 15.0 VA (AC) 9.5 W (DC)
Operating Time Closing: 40–70 ms Opening: 15–50 ms
Maximum Operating Rate 600 Cycles/h (AC-3, AC-3e) 300 Cycles/h (AC-1)
Connections – Terminals Power Circuit: 52×20 mm Busbar or 185 mm² Lugs-Ring Terminals
Control Circuit Push-In (0.2–2.5 mm² Solid/Flexible Cables)
Connection Pitch 70 mm
Mounting Support Plate
Standards Compliance EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, UL 60335-1, UL 60335-2-40:Annex JJ
Product Certifications CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR (DNV-GL)
Tightening Torque 58 N·m
Dimensions Height: 284 mm Width: 281 mm Depth: 266 mm Net Weight: 18 kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider LC1-G6304 TeSys Giga 4 pole (4NO) AC-1 440V 550A AC/DC Coil


TeSys Giga high power contactor, 4 poles (4 NO) suitable for category AC-1 applications up to 1050A @440V. Equipped with 100-250 V AC/DC wide band low consumption electronic coil and embedded highly reliable 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 300 cycles per hour and environments up to 60°C. It’s built with high reliability delivering mechanical durability up to 5 million cycles. Contact Wear Diagnosis (CWD) is a standard function, which continuously monitors and provide feedback through healthy and alarm conditions by an LED indicator. It is possible to replace switching module (main contacts), control module enhancing contactor life with simple maintenance activities. Front accessible main power connections are with bolted connection and control connections by push-in terminals for easy and quick assembly. It provides IP2x protection from front face with optional terminal shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, with no derating up to 3000m altitude. Contactor can be installed in three quadrants of vertical plane, and OLR could be directly mounted below contactor. The dimensions are 284 mm x 281 mm x 266 mm (H x W x D), compact size enables panel space savings. Multi standards certified (CB, CCC, cULcs, CE, UKCA marking) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
