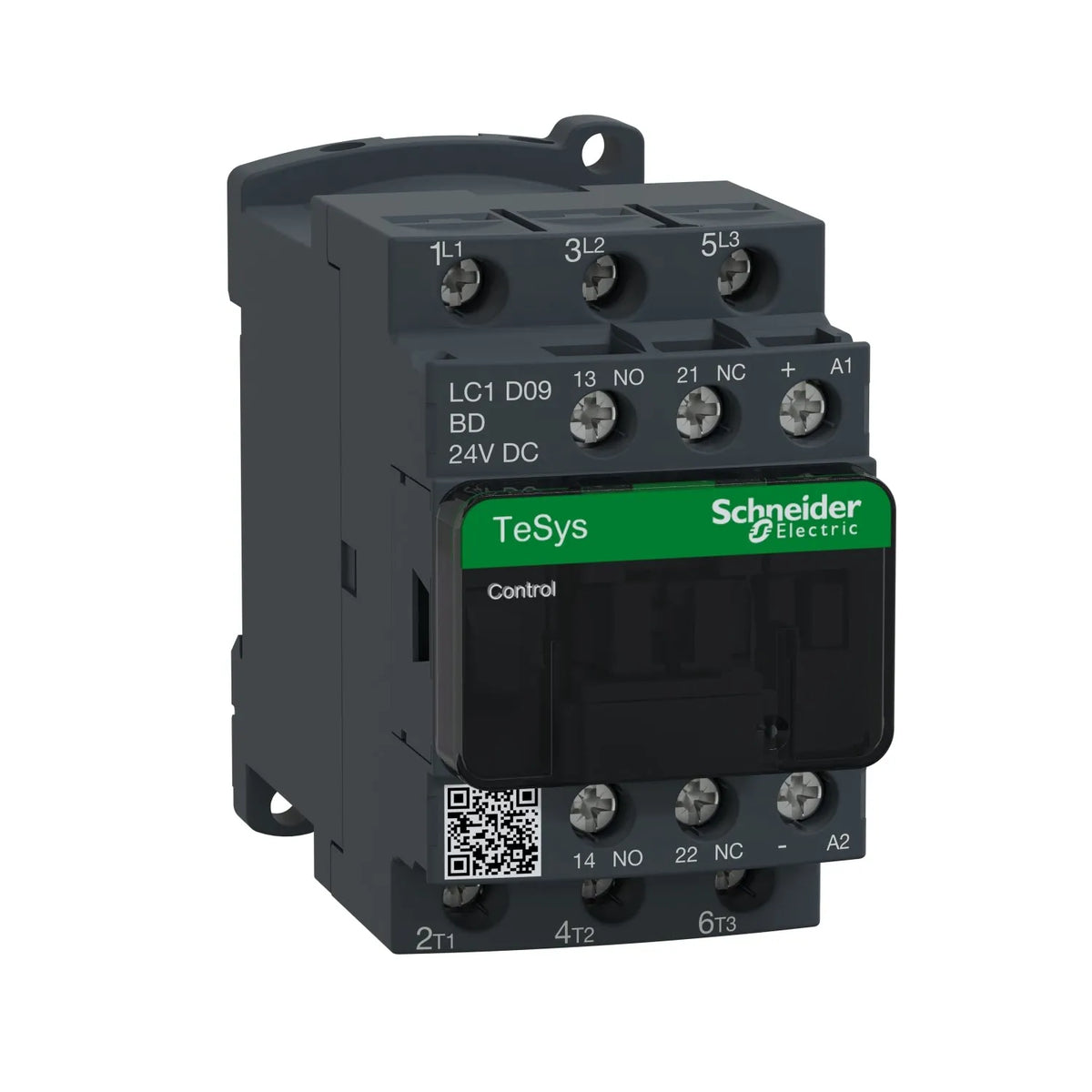

Schneider LC1D09BD TeSys D Contactor 3P (3 NO) AC-3 9 A 24 V DC Coil
Availability: In Stock

Schneider LC1D09BD TeSys D Contactor 3P (3 NO) AC-3 9 A 24 V DC Coil

Product SKU: LC1D09BD
Rs.16,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range of Product TeSys Deca
Component Type Contactor
Device Short Name LC1D
Contactor Application Motor control / Resistive load
Poles description 3P
Thermal Current Ampere 25A
Capacity 4 / 5.5 KW (HP)
Rated Operational Voltage [Ue] Power circuit; <= 690 V AC 25...400 Hz / Power circuit; <= 300 V DC
Rated Operational Current [Ie] 9 A
Control Circuit Voltage [Uc] 24 V DC
Compatibility code LC1D
Pole Contact Composition 3 NO
Contact Compatibility M4
Protective cover With
Conventional Free Air Thermal Current [Ith] 25 A (at 60 °C) for power circuit / 10 A (at 60 °C) for signalling circuit
Rated Breaking Capacity 250 A at 440 V for power circuit conforming to IEC 60947
Average Impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
Overvoltage category III
Pollution degree 3
Mechanical Durability 15 Mcycles
Control circuit type DC standard
Operating time 53.55...72.45 ms closing / 16...24 ms opening
Maximum operating rate 3600 cyc/h 60 °C
Auxiliary contact composition 1 NO + 1 NC
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Mounting Support Plate Rail
Operating altitude 0...3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Net weight 0.32 kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Schneider LC1D09BD TeSys D Contactor 3P (3 NO) AC-3 9 A 24 V DC Coil


TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with a transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), and connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Schneider LC1D09BD TeSys D Contactor, 3P (3 NO) AC 3 9 A 24 V DC Coil Price in Pakistan
Schneider LC1D09BD TeSys D Contactor 3P (3 NO) AC-3 9 A 24 V DC Coil
Looking to purchase Schneider LC1D09BD TeSys D Contactor 3P (3 NO) AC-3 9 A 24 V DC Coil in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.
