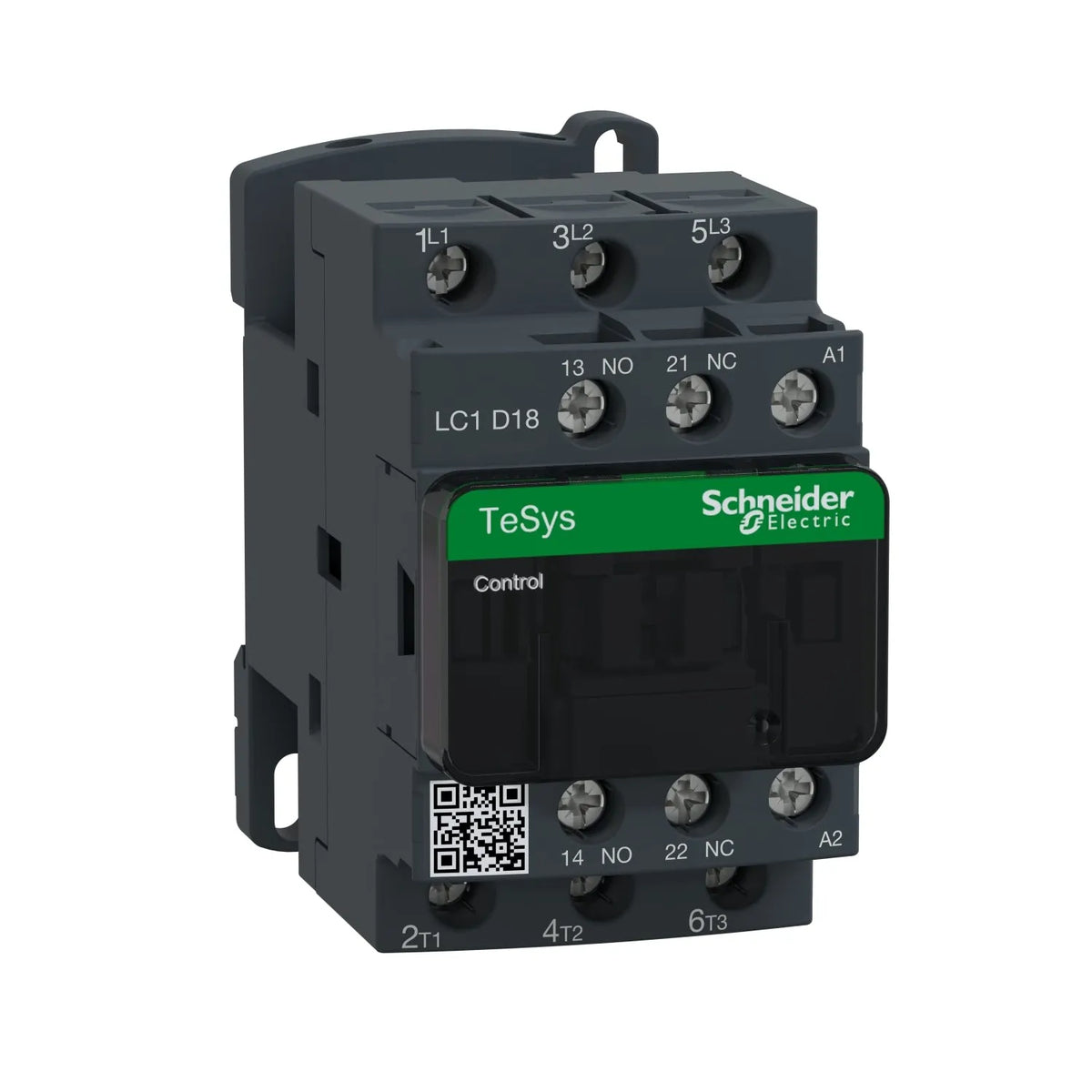

Schneider LC1D18 TeSys D Contactor 3P (3 NO) AC-3 18 A 220 V AC Coil
Availability: In Stock

Schneider LC1D18 TeSys D Contactor 3P (3 NO) AC-3 18 A 220 V AC Coil

Product SKU: LC1D18M7
Rs.11,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range of Product TeSys Deca
Component Type Contactor
Device Short Name LC1D
Contactor Application Motor control
Poles description 3P
Thermal Current Ampere 32A
Capacity 9 / 12 KW (HP)
Rated Operational Voltage [Ue] Power circuit; <= 690 V AC 25...400 Hz / Power circuit; <= 300 V DC
Rated Operational Current [Ie] 12 A
Control Circuit Voltage [Uc] 220 V AC 50/60 Hz
Compatibility code LC1D
Pole Contact Composition 3 NO
Contact Compatibility M2
Protective cover With
Conventional Free Air Thermal Current [Ith] 25 A (at 60 °C) for power circuit / 10 A (at 60 °C) for Signalling circuit
Rated Breaking Capacity 300 A at 440 V for power circuit conforming to IEC 60947
Average Impedance 2.5 mOhm - Ith 32 A 50 Hz for power circuit
Overvoltage category III
Pollution degree 3
Mechanical Durability 15 Mcycles
Control Circuit Type AC at 50/60 Hz standard
Heat dissipation 2…3 W at 50/60 Hz
Operating time 12...22 ms closing / 4...19 ms opening
Auxiliary contact composition 1 NO + 1 NC
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Mounting Support Plate Rail
Operating altitude 0...3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Net weight 0.33 kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Schneider LC1D18 TeSys D Contactor 3P (3 NO) AC-3 18 A 220 V AC Coil


TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), and connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
