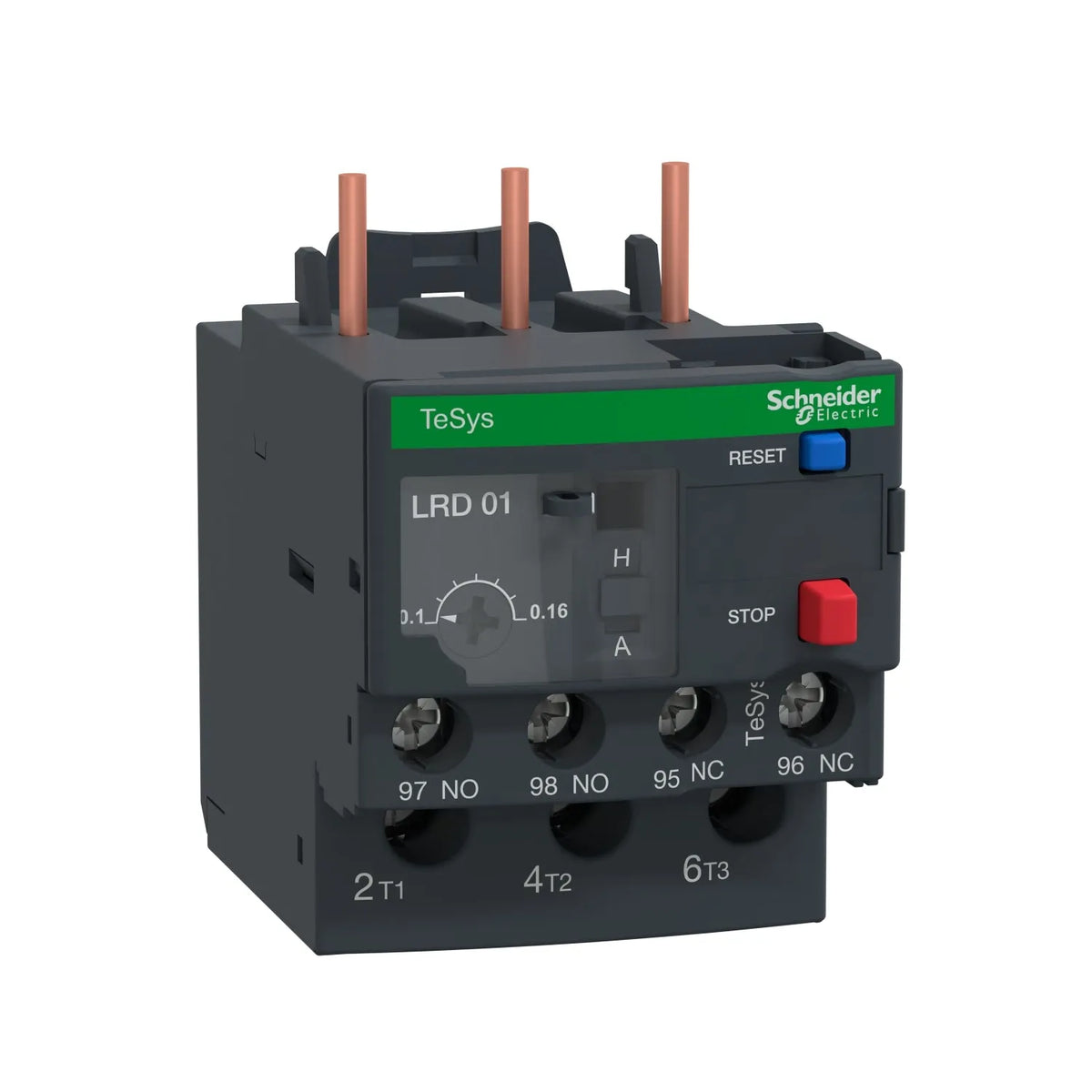

Schneider LRD01 TeSys Deca Thermal Overload Relay - 0.1-0.16 A
Availability: In Stock

Schneider LRD01 TeSys Deca Thermal Overload Relay - 0.1-0.16 A

Product SKU: LRD01
Rs.9,500

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Device short name LRD
Relay Application Motor protection
Network type DC / AC
Thermal overload class Class 10A IEC 60947-4-1
Thermal protection adjustment range 0.1…0.16 A
Rated Insulation Voltage [Ui] Power circuit 600 V CSA / Power circuit 600 V UL / Power circuit 690 V IEC 60947-4-1
For Use wIth Contactors LC1 D09 ~ D32
Network Frequency 0...400 Hz
Mounting support Plate, with specific accessories Rail, with specific accessories Under contactor
Tripping threshold 1.14 +/- 0.06 Ir IEC 60947-4-1
Auxiliary contact composition 1 NO + 1 NC
Conventional Free air thermal current [Ith] 5 A signaling circuit
Permissible current 3 A 120 V AC-15 signaling circuit / 0.22 A 125 V DC-13 signaling circuit
Rated Operational Voltage[Ue] 690 V AC 0...400 Hz power circuit IEC 60947-4-1
Associated fuse rating 4 A gG for signaling circuit 4 A BS for signaling circuit
Rated impulse withstand voltage [Uimp] 6 kV
Phase failure sensitivity Tripping current 130 % of Ir on two-phase, the last one at 0
Control type Red push-button stop, Blue push-button reset
Temperature compensation -4…140 °F (-20…60 °C)
Climatic withstand IACS E10
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage -76…158 °F (-60…70 °C)
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations6 Gn IEC 60068-2-6, Shocks15 Gn for 11 ms IEC 60068-2-7
Dielectric strength 1.89 kV 50 Hz IEC 60947-1

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Schneider LRD01 TeSys Deca Thermal Overload Relay - 0.1-0.16 A


LRD01 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors less than 0.06kW@400V thanks to a thermal range of 0.10-0.16A, a tripping class 10A and phase unbalance protection. LRD01 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range of 0.10-0.16A, a tripping class 10A and phase unbalance detection, it protects motors less than 0.06kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload relay is bimetallic, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D09-D38 to form a compact starter. Light and compact, 45mm wide. Temperature-compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual/automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. It can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
