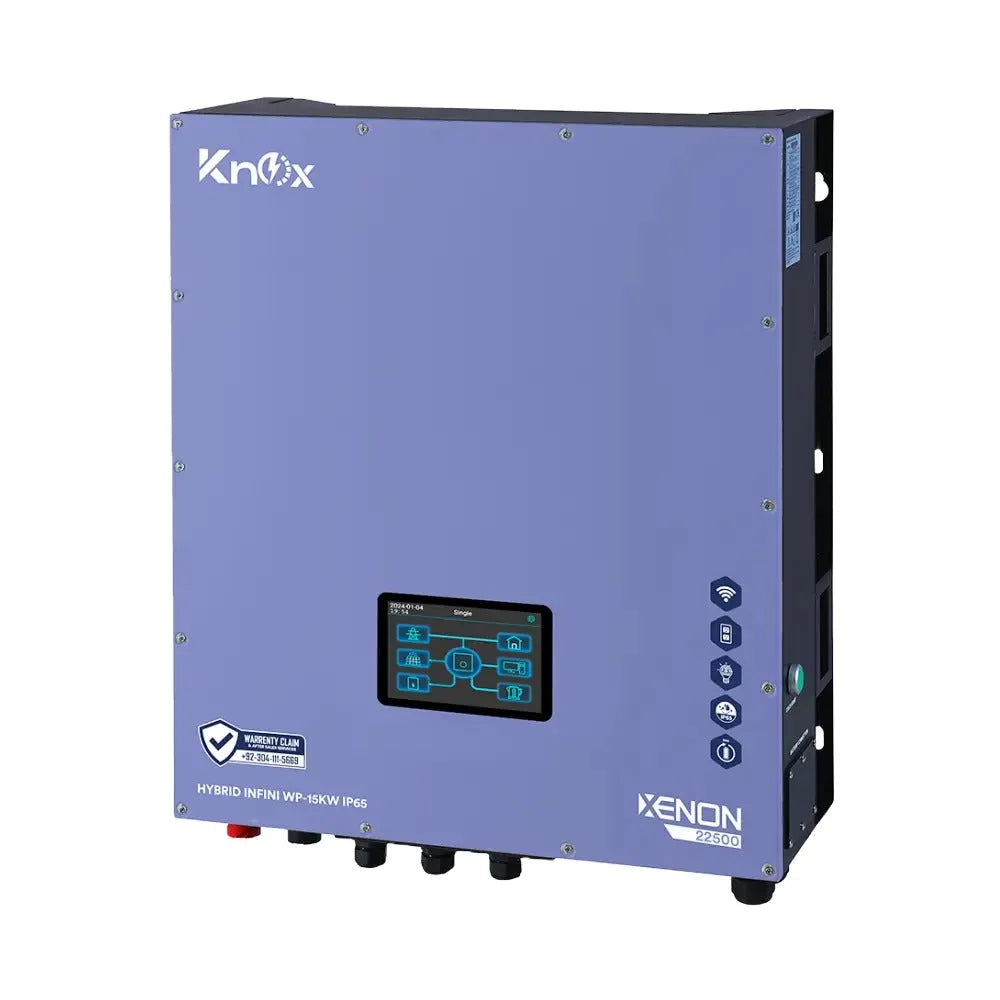

Knox Xenon 15kw Pv22500w IP65 Hybrid Solar Inverter
Product SKU:
Knox-Xenon15kw-Pv22500w
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Type
Hybrid Solar Inverter
Phase
Single Phase
Dimensions (D x W x H)
255 x 660 x 750 mm
Net Weight
73 kg
Operating Temperature Range
-25°C to 60°C
Storage Temperature Range
-15°C to 60°C
Altitude
0 ~ 1000 m
Humidity
0 ~ 100% RH (Non-condensing)
Communication Ports
RS-232, RS-485, USB, CAN, Wi-Fi (optional), SNMP, Modbus
Intelligent Slot
Yes
Parallel Function
Yes, supports up to 9 units in parallel
Maximum PV Input Power
22500W
Rated Output Power
15000W / 15000VA
Maximum Charging Power
15000W
Nominal DC Voltage / Maximum DC Voltage
500 VDC
Start-up Voltage / Initial Feeding Voltage
80 VDC / 150 VDC
MPP Voltage Range
90 ~ 450 VDC
Number of MPP Trackers
2
Maximum Input Current per Tracker
18A
Nominal Output Voltage
220/230/240 VAC
Output Voltage Range
184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current
21.7A
Power Factor
0.9 lag ~ 0.9 lead
Surge Power
30000VA
No Load Power Consumption
< 85W
Maximum Conversion Efficiency (DC/AC)
96%
European Efficiency @ Nominal
95%
Transfer Time (for Personal Computers)
10 ms
Transfer Time (for Home Appliances)
20 ms
Output Waveform
Pure Sine Wave
Efficiency (DC to AC)
91%
Battery Voltage
48 VDC
Floating Charge Voltage
54 VDC
Overcharge Protection
66 VDC
Battery Voltage Range
40 ~ 62 VDC
Maximum Solar Charging Current
300A
Maximum AC Charging Current
300A
Maximum Charging Current
300A
Solar Charger Type
MPPT (Maximum Power Point Tracking)
Nominal Output Voltage
220/230/240 VAC
Output Voltage Range
184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Efficiency
> 0.99
Frequency Range
50 Hz / 60 Hz (Auto sensing)
Surge Power
30000VA
AC Start-up Voltage / Auto Restart Voltage
120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range
170 - 280 VAC (for Personal Computers) / 90 - 280 VAC (for Home Appliances)
Maximum AC Input Current
36A
IP Rating
IP65 (Dust and water-resistant, suitable for outdoor environments)
Cooling Method
Fan-assisted cooling for enhanced thermal management
Key Features
High power motor
Higher work efficiency
Product Details
Reviews
Shipping & Returns
Knox Xenon 15kw Pv22500w IP65 Hybrid Solar Inverter
he Knox Xenon 15kW PV22500W IP65 Hybrid Solar Inverter delivers high-performance, versatile, and reliable power conversion for large-scale residential, commercial, and industrial solar power systems. With an IP65 rating, the inverter is highly durable, offering robust protection against water, dust, and harsh outdoor conditions. It seamlessly integrates with grid-tied solar power systems, allowing for optimal energy management and batteryless operation while offering a Battery Management System (BMS) for future scalability. This inverter is equipped with dual outputs, making it ideal for both sensitive, low-load devices and high-demand, heavy-load applications. Built-in Wi-Fi provides easy remote monitoring and diagnostics for real-time performance tracking.
