Powerage 3-Phase Transformer-less UPS Price in Pakistan
  • Powerage 3-Phase Transformer-less UPS Price in Pakistan

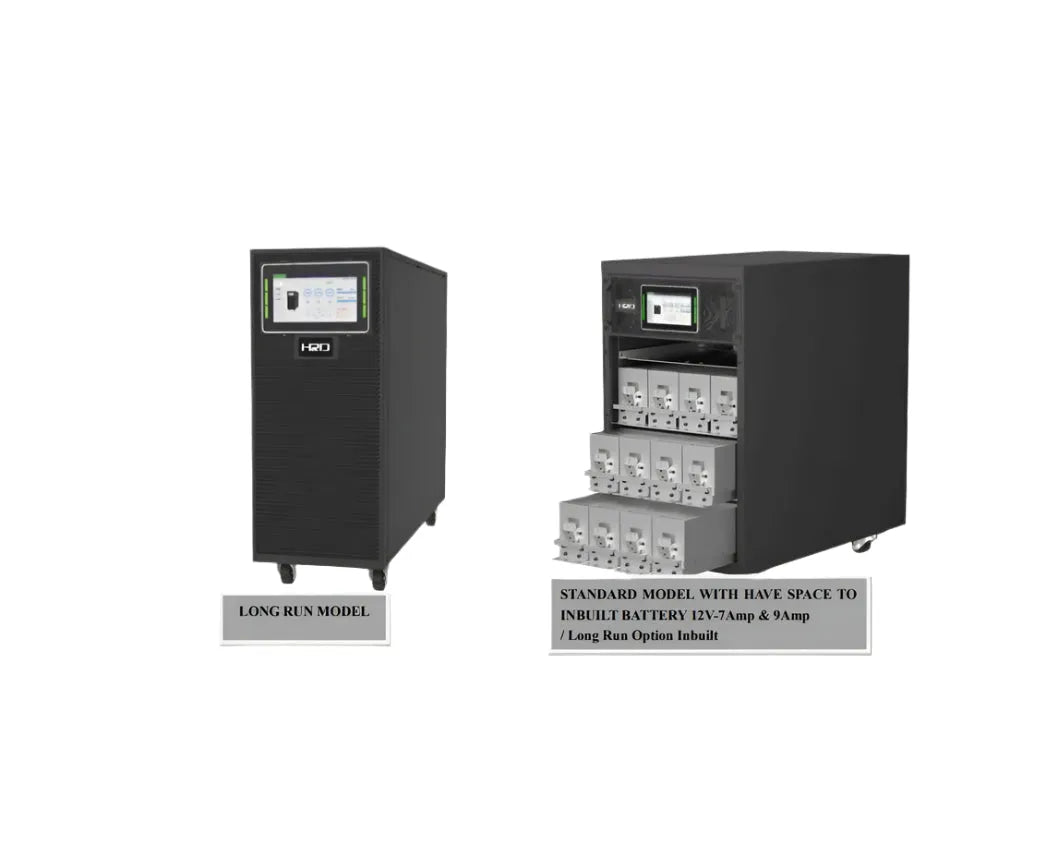

Powerage PAE-HF-3310S 3P 10-60kVA Transformer-less UPS
Availability: Out of stock

Powerage PAE-HF-3310S 3P 10-60kVA Transformer-less UPS

Product SKU: PAE-HF-3310S
Price on Request

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

WhatsApp Inquiry

Specifications

Type UPS
Rated Power 10kVA/10kW, 15kVA/15kW, 20kVA/20kW, 30kVA/30kW, 40kVA/40kW, 60kVA/60kW
Input Voltage 380/400/415VAC(L-L) or 220/230/240VAC(L-N)
Input Voltage Range 304 - 478VAC(L-L) (full load), 228 - 478VAC(L-N) (full load)
Input Frequency 50/60Hz, frequency range 40-70Hz Power Factor: >0.99
THDi <3% at 100% linear load, <6% at 100% non-linear load
Output Voltage 380/400/415VAC(L-L) or 220/230/240VAC(L-N)
Output Power Factor 1.0
Voltage Accuracy ±1.0%
THDi Output <1% for linear load, <5% for non-linear load according to IEC 62040-3
Load Response <5% (20% - 80% - 20% step load)
Recovery Time < 20ms (0% - 100% - 0% step load)
Overload Capacity 110% for 1 hour, 125% for 10 minutes, 150% for 1 minute, >150% for 200ms
Frequency Accuracy 0.1%
Synchronization Window ±0.5Hz to ±5Hz (settable, default ±3Hz)
Slew Rate 0.5Hz/S to 3Hz/S (settable, default 0.5Hz/S)
Crest Factor 3:1
Phase Accuracy 120°±0.5°
Charger Capacity 20% of UPS capacity
Battery Voltage ±192-240Vdc (settable)
Battery Model Internal 12VDC/7-9Ah (max 3*40PCS) or external 32-40PCS (settable)
Bypass Frequency Range 50/60Hz, settable ±1Hz, ±3Hz, ±5Hz
Display LED + 7-inch touch LCD
Environmental Conditions 0-40°C operation, -25°C to 70°C storage, 0-95% humidity (non-condensing)
Ingress Protection (IP) IP20
Certifications IEC62040-1, IEC60950-1 (Safety), IEC62040-2 (EMS), IEC61000-4 series (EMC), IEC62040-3 (THDi)
Interfaces USB, RS232, RS485, Dry contact, Air filter; optional SNMP card, AS400 card, Parallel kit, LBS, Cold start
Dimensions Internal battery model (500864922mm for 10-40kVA), External battery model (250530650mm)

Key Features

Compact design for easy portabilityAdvanced performance with high processing powerLong-lasting battery for extended useUser-friendly interface with intuitive navigationHigh-definition display for clear visualsFast charging capability for convenienceVersatile connectivity options for compatibilityLightweight build for enhanced mobilityDurable construction for lasting useSecure system with privacy features
Product Details Reviews Shipping & Returns User Manual

Powerage PAE-HF-3310S 3P 10-60kVA Transformer-less UPS


The Powerage PAE-EVO-3500 is a single-phase hybrid solar inverter that provides reliable and efficient energy conversion for residential and commercial solar applications. With dual AC output, it offers flexible power distribution between the grid, home appliances, and other connected systems. Equipped with MPPT solar charging technology, the PAE-EVO-3500 supports lithium and lead-acid batteries while providing high charging efficiency and battery protection. This inverter also offers superior pure sine wave output, ensuring the cleanest and most compatible power for sensitive electronic equipment.

With a surge power rating of 6 kVA, the inverter supports short-term peak loads while maintaining high efficiency (up to 93% in battery mode). The system features a wide MPPT range (120V-450V DC) and can accept 500V DC at maximum input voltage, allowing for optimal energy harvesting from solar panels. It also offers WiFi monitoring for remote tracking, making it ideal for both off-grid and grid-connected solar systems.
