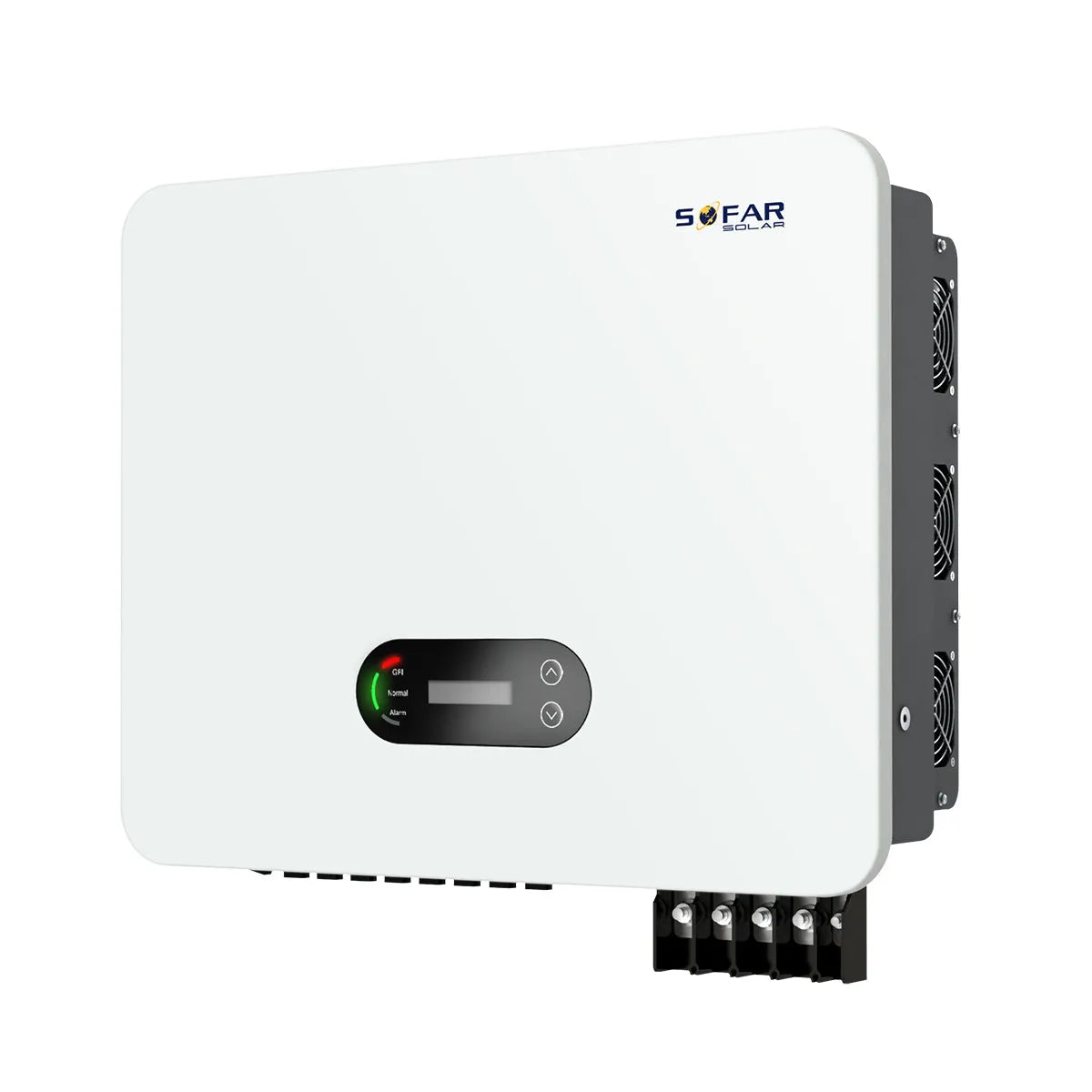

Sofar 50KTLX-G3 Three Phase On Grid Inverter
Product SKU:
SOFAR-50KTLX-G3
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Type
On Grid Solar Inverter
Input Power
75000
Max DC Power for single MPPT(w)
25000
Number of MPP trackers
4
Number of DC inputs
2 for each MPPT
Number of DC Inputs
1100
Start-up Voltage
200
Rated input voltage(V)
620
MPPT operating Voltage range(V)
18-1000
Full Power MPPT voltage range(V)
540-850
Max. input MPPT current(A)
4*40
Max. input short circuit current per MPPT(A)
4*50
Rated Power(W)
50000
Max, AC Power(VA)
55000
Max. output current(A)
83.3
Rated gird Voltage
310- 480 VAC (according to local standard)
Active power adjustable range
0-100%
Frid frequency range
45 Hz-55 Hz/ 55 Hz- 65 Hz (according to local standard)
THDi
<3%
Power Factor
1 default (adjustable=/0.8)
Max efficiency
98.80%
European efficiency
98.20%
DC reverse polarity protection
Yes
Anti-islanding Protection
Yes
Leakage current protection
Yes
Ground Fault Monitoring
Yes
Feed-in limitation function
Yes
DC Switch
Optional
Input/output SPD
PV; type II standard, AC; Type II standard
Standard Communication mode
RS485/Bluetooth Optional; WiFi/Ethernet
Ambient temperature range
-30-=60
Self consumption at night(W)
<3
Topology
Transformerless
Degree of Protection
IP65
Allowable relative humidity range
0-100%
Max. operating altitude
400m
Noise
<60 dB
Weight
36 Kg
Cooling
Fan
Dimension
585*480*220
Display
LCD, App via Bluetooth
EMC
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
Safety standards
IEC 62109-1/2, IEC 62116, IEC 61727, IEC 61683, IEC 60068(1,2,14,30), IEC 60255
Gird standards
VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, CEI 0-21/CEI 0-16, UNE 206 007-1, EN 50549, G98/G99, EN 50530
Key Features
Dual outputs for smart load management
Two independent AC power sources are connected and switched automatically
Built-in current transformer sensor to meet self-consumption application
Support external BTS (Battery Temperature Sensor) detection
Built-in power status lighting indicators
Built-in 2.8" colored LCD with slide operation
Support optional GFCI, Rapid shutdown, AFCI detections
Parallel operation with 6 units
Built-in WiFi with remote monitoring APP
Grid Feeding
Supports USB On-the-Go function reservedcommunication port for BMS (RS485, CAN-BUS or RS232)
