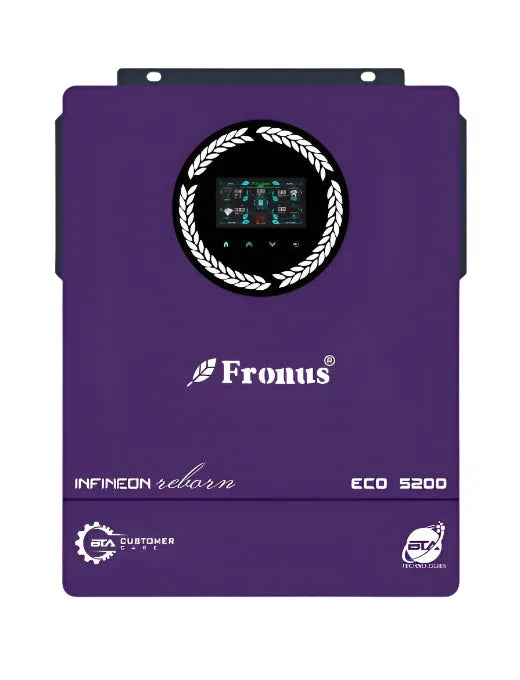

Fronus Infineon Reborn PV 5200 4.2kw Hybrid Inverter
Availability: Out of stock

Fronus Infineon Reborn PV 5200 4.2kw Hybrid Inverter

Product SKU: Fronus-PV5200-4.2kw
Price on Request

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

WhatsApp Inquiry

Specifications

Type Hybrid Inverter
Maximum PV Input Power 5200W
Rated Output Power 4200W / 4200VA
Output Voltage Waveform Pure Sine Wave
Output Voltage Regulation 230VAC ±5%
Output Frequency 50Hz
Peak Efficiency 93%
Overload Protection 3s at ≥150% Load, 5s at 101%-150% Load
Surge Capacity 8400W for 5s
Nominal DC Input Voltage 24Vdc
Cold Start Voltage 23.0Vdc
High DC Recovery Voltage 32Vdc
High DC Cut-Off Voltage 33Vdc
No Load Power Consumption 30W
Full Load Output Power 4200W
Maximum Main Load 4200W
Maximum Second Load (Battery Mode) 1386W
Main Load Cut-Off Voltage 24VDC
Main Load Return Voltage 27VDC
Utility Charging Mode 3-Step Charging Algorithm
AC Charging Current (Maximum) 100A (@ 230VAC)
Bulk Charging Voltage (Flooded Battery) 29.2Vdc
Bulk Charging Voltage (AGM/Gel Battery) 28.2Vdc
Floating Charging Voltage 27Vdc
Maximum PV Array Power 5200W
Nominal PV Voltage 240Vdc
PV Array MPPT Voltage Range 60Vdc – 450Vdc
Max PV Array Open Circuit Voltage 500Vdc
Maximum Charging Current 120A
Nominal Output Voltage 220/230/240VAC
Feed-In Grid Voltage Range 195–253VAC
Feed-In Grid Frequency Range 4951±1Hz / 5961±1Hz
Nominal Output Current 15.7A
Power Factor Range >99
Maximum Conversion Efficiency (DC/AC) 97%
Input Voltage Waveform Sinusoidal (Utility or Generator)
Nominal Input Voltage 230VAC
Low Loss Voltage 170VAC ±7V (UPS), 90VAC ±7V (Appliances)
Low Loss Return Voltage 180VAC ±7V (UPS), 100VAC ±7V (Appliances)
High Loss Voltage 280VAC ±7V
High Loss Return Voltage 270VAC ±7V
Maximum AC Input Voltage 300VAC
Nominal Input Frequency 50Hz / 60Hz (Auto Detection)
Low Loss Frequency 40 ±1Hz
Low Loss Return Frequency 42 ±1Hz
High Loss Frequency 65 ±1Hz
High Loss Return Frequency 63 ±1Hz
Output Short Circuit Protection Circuit Breaker
Efficiency (Line Mode) >95% (Rated Load, Battery Fully Charged)
Transfer Time 10ms for UPS, 20ms for Appliances
Safety Certification CE
Operating Temperature Range -10°C to 50°C\ Storage Temperature: -15°C to 60°C
Humidity 5% to 95% Relative Humidity (Non-Condensing)
Dimensions (D x W x H) 420mm x 350mm x 110mm
Net Weight 9.0 kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Fronus Infineon Reborn PV 5200 4.2kw Hybrid Inverter

overload protection with built-in time delays, ensuring safe operation under varying load conditions.

The Fronius Infineon Reborn PV 5200 is equipped with an advanced 3-step charging algorithm for efficient battery management. It can charge a variety of battery types, including flooded, AGM, and gel batteries. The inverter's fast transfer time (10ms for UPS and 20ms for appliances) ensures minimal disruption during power transitions.

Designed with flexibility in mind, the inverter operates within a wide input voltage range and is capable of grid-tie integration. It seamlessly feeds excess energy back to the grid, providing a reliable and eco-friendly energy solution. Additionally, the compact design and CE certification make this inverter a trusted choice for high-quality, efficient, and safe solar energy management.
