Knox Krypton 6kw Pv7200w Hybrid Solar Inverter
Product SKU:
Knox-Krypton-6kw-Pv7200w
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Type
Hybrid Solar Inverter
Phase
Single Phase
Dimensions (D x W x H)
158.4 x 503.6 x 530.8 mm
Net Weight
20 kg
Operating Temperature Range
-10°C to 50°C
Storage Temperature Range
-15°C to 60°C
Humidity
0 ~ 90% RH (Non-condensing)
Communication Ports
USB, RS232, RS485, Wi-Fi (Optional), Dry Contact
Parallel Function
Yes, supports up to 6 units in parallel
Maximum PV Input Power
7200W
Rated Output Power
6000W
Nominal DC Voltage / Maximum DC Voltage
500 VDC
MPP Voltage Range
60VDC ~ 450VDC
Start-up Voltage / Initial Feeding Voltage
120 VDC / 150 VDC
Number of MPP Trackers
1
Maximum Input Current
27A (MAX 40A)
Nominal Output Voltage
220/230/240 VAC
Output Voltage Range
184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current
35A
Power Factor
> 0.99
Maximum Conversion Efficiency (DC/AC)
95%
Frequency Range
50 Hz / 60 Hz (Auto sensing)
Efficiency (DC to AC)
93%
Surge Power
12000VA
Transfer Time (for Personal Computers)
10 ms
Transfer Time (for Home Appliances)
20 ms
Nominal Output Voltage
220/230/240 VAC
Output Waveform
Pure Sine Wave
Efficiency (DC to AC)
93%
Battery Management System
Optimizes battery performance and longevity
Nominal DC Voltage
48 VDC
Floating Charge Voltage
54 VDC
Overcharge Protection
63 VDC
Maximum Solar Charging Current
120A
Maximum AC Charging Current
120A
Maximum Charging Current
120A
Solar Charger Type
MPPT (Maximum Power Point Tracking)
AC Start-up Voltage / Auto Restart Voltage
120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range
90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current
26A
IP Rating
IP21 (Protection from dust and moisture ingress)
Cooling Method
Fan-assisted for efficient thermal management
Key Features
High power motor
Higher work efficiency
Product Details
Reviews
Shipping & Returns

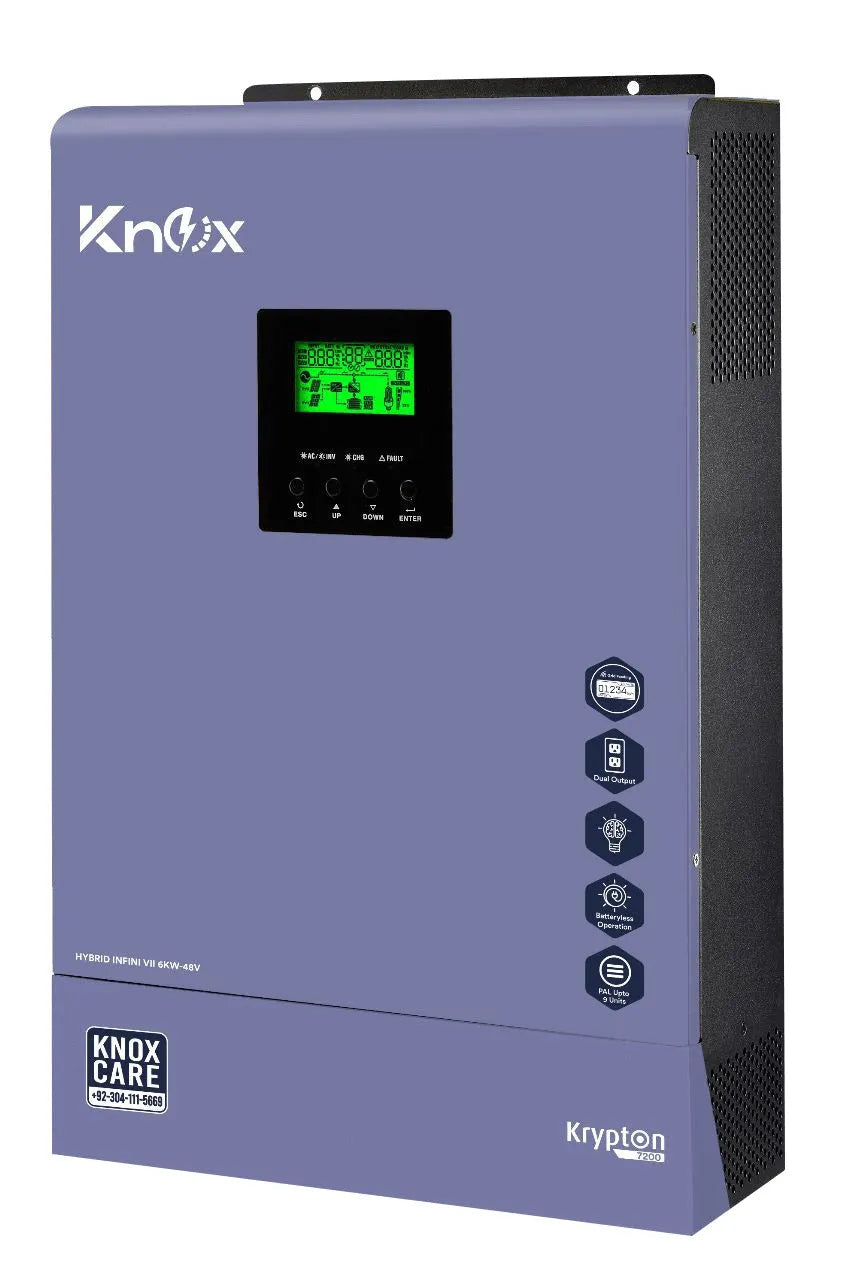

Knox Krypton 6kw Pv7200w Hybrid Solar Inverter
The Knox Krypton 6kW PV7200W Hybrid Solar Inverter is a robust and efficient solar power solution designed to meet the energy demands of residential and commercial users. It combines grid-tied, off-grid, and batteryless operations into one system, offering high versatility for solar energy applications. This inverter is equipped with an optional built-in Wi-Fi for online monitoring, providing real-time performance data for enhanced system management. The dual output feature supports both smart and heavy load appliances, ensuring reliable power delivery to various devices. With an IP21 rating for durability, the inverter is protected from dust and moisture, making it ideal for various environments. It also includes an advanced Battery Management System (BMS) for optimal battery health and efficient energy storage.
