Solis 30KW 3 Phase High Voltage Hybrid Solar Inverter Price In Pakistan
  • Solis 30KW 3 Phase High Voltage Hybrid Solar Inverter Price In Pakistan

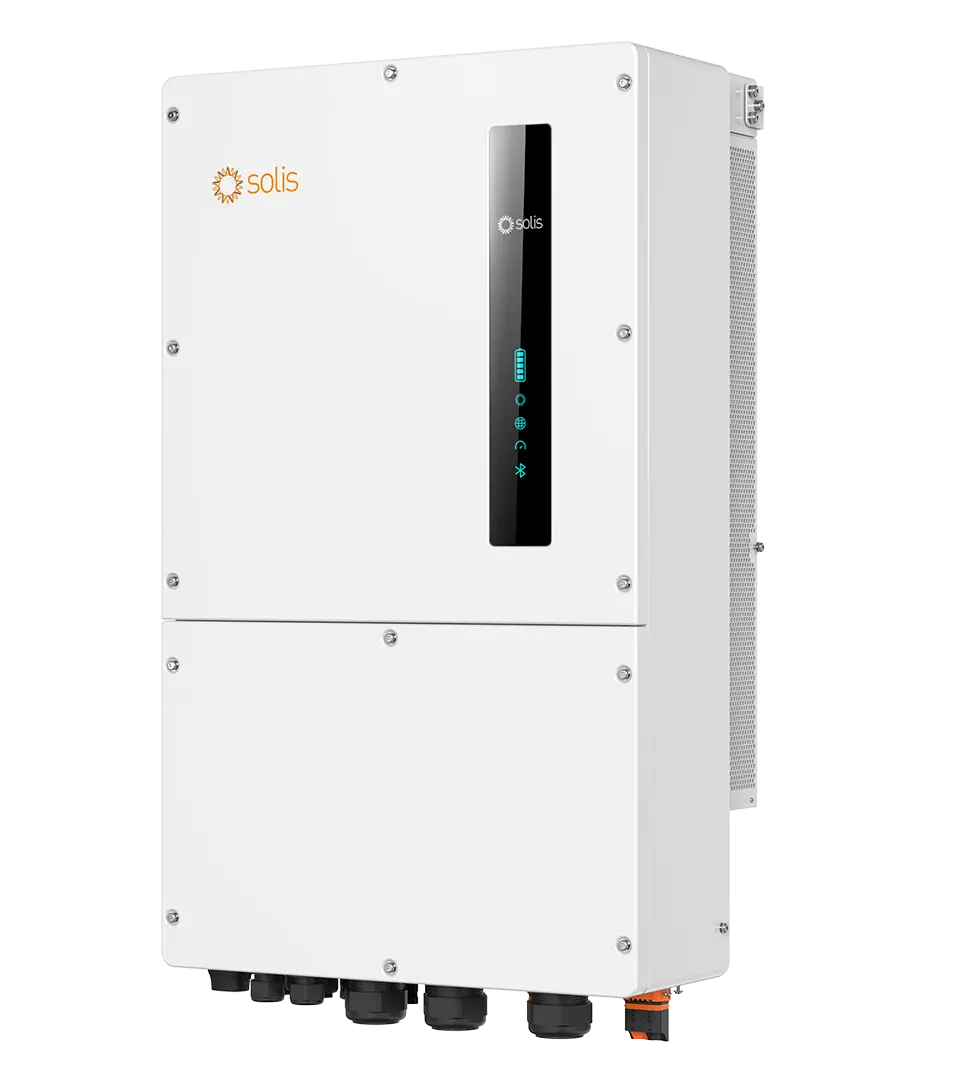

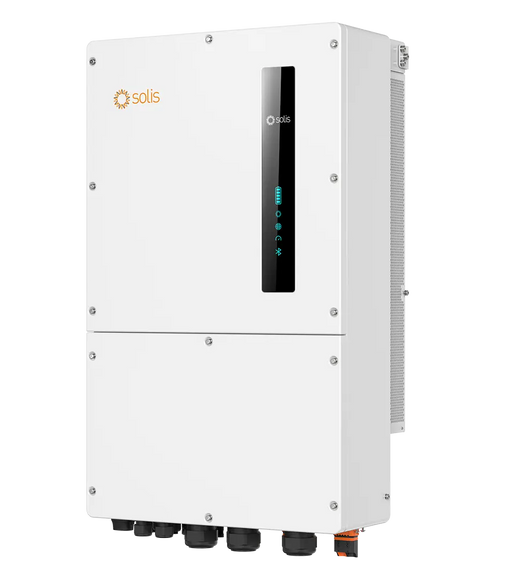

Solis 30KW 3 Phase High Voltage Hybrid Solar Inverter
Availability: In Stock

Solis 30KW 3 Phase High Voltage Hybrid Solar Inverter

Product SKU: S6-EH3P30K-H
Rs.1,125,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Three Phase High Voltage Hybrid Solar Inverter
Rated Output Power 30 kW
Maximum Apparent Output Power 30 kVA
Recommended Max. PV Array Size 60 kW
Maximum Usable PV Input Power 60 kW
Maximum PV Input Voltage 1000 V
Rated PV Voltage 600 V
Start-Up Voltage 180 V
MPPT Voltage Range 150 – 850 V
MPPT Number / Max. Input Strings 3 / 6
Maximum Input Current 40 A / 40 A / 40 A
Maximum Short Circuit Current 60 A / 60 A / 60 A
Battery Type Lithium-Ion
Battery Voltage Range 150 – 800 V
Maximum Charge / Discharge Power 33 kW
Maximum Charge / Discharge Current 70 A × 2
Number of Battery Ports 2
Maximum Charge / Discharge Power Per Battery Input 33 kW
Battery Communication CAN / RS485
Rated Grid Voltage 3/N/PE, 220/380 V, 230/400 V
Rated Grid Frequency 50 Hz / 60 Hz
Rated Grid Output Current 45.6 A / 43.3 A
Maximum Output Current 45.6 A / 43.3 A
Power Factor > 0.99 (0.8 Leading – 0.8 Lagging)
THDi < 3%
Maximum AC Pass-Through Current 91.2 A / 86.6 A
Rated AC Input Voltage 3/N/PE, 220/380 V, 230/400 V
Rated AC Input Frequency 50 Hz / 60 Hz
Maximum Generator Input Power 30 kW
Rated Generator Input Current 45.6 A / 43.3 A
Rated Generator Input Voltage 3/N/PE, 220/380 V, 230/400 V
Rated Generator Frequency 50 Hz / 60 Hz
Rated Backup Output Power 30 kW
Peak Backup Output Power 1.6 × Rated Power (2 Seconds)
Backup Switching Time < 10 ms
Rated Backup Output Voltage 3/N/PE, 220/380 V, 230/400 V
Rated Backup Output Frequency 50 Hz / 60 Hz
Rated Backup Output Current 45.6 A / 43.3 A
THDv (@ Linear Load) < 2%
Maximum Efficiency 97.8%
European Efficiency 97.4%
Battery Charging Efficiency (PV) 98.5%
Battery Charge / Discharge to AC Efficiency 97.5%
Anti-Islanding Protection Yes
Output Over Current Protection Yes
Short Circuit Protection Yes
Integrated DC Switch Yes
DC Reverse Polarity Protection Yes
Surge Protection DC Type II / AC Type II
Integrated AFCI 2.0 Optional
Dimensions (W × H × D) 530 × 880 × 290 mm
Weight 73 kg
Topology Transformerless
Night Self-Consumption < 35 W
Operating Temperature Range -25°C to +60°C
Relative Humidity 0 – 100%
Protection Rating IP66

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Solis 30KW 3 Phase High Voltage Hybrid Solar Inverter

The Solis S6-EH3P30K-H-ND is a powerful 30KW Three Phase High Voltage Hybrid Solar Inverter engineered for commercial, industrial, and large-scale energy storage applications. Designed with advanced hybrid technology, it seamlessly integrates solar generation, battery storage, grid power, and generator backup to ensure uninterrupted energy supply and maximum system efficiency.

Supporting up to 2x PV oversizing, 20A string input current, and dual battery ports, this inverter maximizes solar energy harvesting while providing flexible battery expansion. The ultra-fast <10ms switching time ensures continuous power during grid outages, making it ideal for mission-critical loads.

With support for DC and AC coupling, intelligent load prioritization, generator integration, and parallel operation up to 500kW, the Solis 30KW Hybrid Inverter delivers a scalable and future-ready energy storage solution. Integrated SolisCloud monitoring, intelligent fan cooling, and IP66 protection provide reliable performance and advanced remote management.
