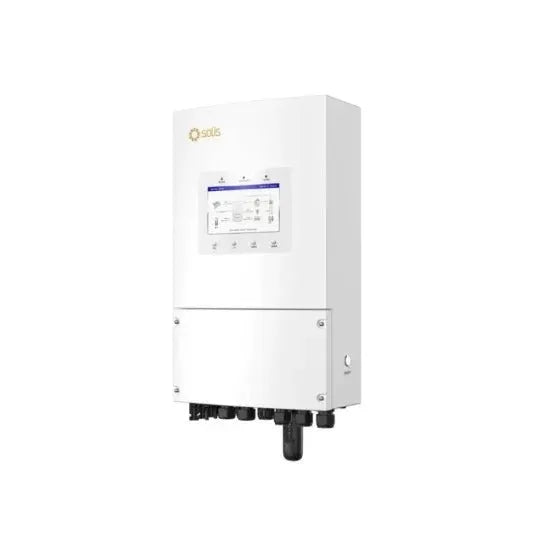

Solis 6kw Single Phase Low Voltage Hybrid Solar Inverter Price in Pakistan
  • Solis 6kw Single Phase Low Voltage Hybrid Solar Inverter Price in Pakistan
Solis 6kw Single Phase Low Voltage Hybrid Solar Inverter
Availability: In Stock

Solis 6kw Single Phase Low Voltage Hybrid Solar Inverter

Product SKU: S6-EH1P6K-L-PLUS
Rs.260,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Recommended max. PV power 9.6 kW
Max. input voltage 600 V
Rated voltage 330 V
Start-up voltage 90 V
MPPT voltage range 90-520 V
Max. input current 16 A / 16 A
Max. short circuit current 24 A / 24 A
MPPT number/Max. input strings number 2/2
Battery type Li-ion / Lead-acid
Battery voltage range 40-60 V
Max. charge / discharge power 6 kW
Max. charge / discharge current 135 A
Communication CAN/RS485
Output AC (Grid side)
Rated output power 6 kW
Max. apparent output power 6.6 kVA
Operation phase 1/N/PE
Rated grid voltageL 220 V / 230 V
Rated grid frequency 50 Hz
Rated grid output current 27.3 A / 26.1 A
Max. output current 30 A
Power factor >0.99 (0.8 leading - 0.8 lagging)
THDi <2%
Input AC (Grid side)
Input voltage range 187-253 V
Max. input current 40 A
Frequency range 45-55 Hz / 55-65 Hz
Max. apparent output power 2 times of rated power, 10 s
Back-up switch time <4 ms
Rated output voltage 1/N/PE, 220 V / 230 V
Rated frequency 50 Hz
Rated output current 27.3 A / 26.1 A
Max. output current 30 A
Max. AC Passthrough current 40 A
THDv (@linear load) <2%
Max. efficiency > 96.9%
EU efficiency > 96.5%
DC reverse-polarity protection Yes
Ground fault monitoring Yes
Dimensions (W*H*D) 406*560*205 mm
Weight 24 kg
Topology High frequency isolation (for battery)
Operating ambient temperature range= -40 ~ +60å¡C
Ingress protection IP66

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Solis 6kw Single Phase Low Voltage Hybrid Solar Inverter

The Solis 6kW 1P Hybrid Solar Inverter offers versatile generator connectivity with multiple input methods and automatic On/Off control. It features automatic UPS switching, providing a 10-second, 200% surge power backup overload capability. This inverter supports both single-phase and three-phase connections, with a maximum of 36kW in parallel. It boasts a high charge/discharge current of up to 135A and six customizable charge/discharge time settings. Compatible with lead-acid and lithium batteries, it includes various battery protection features and supports peak shaving control in "self-use" and "generator" modes.
