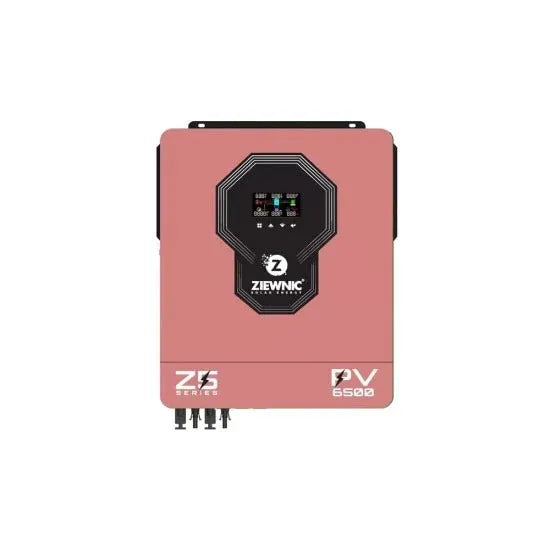

Ziewnic Z5 PV6500 4.5kVA 1 Phase Hybrid Solar Inverter
Availability: In Stock

Ziewnic Z5 PV6500 4.5kVA 1 Phase Hybrid Solar Inverter

Product SKU: PV6500-4-5KW
Rs.120,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Hybrid Solar Inverter
Phase Single Phase
Rated Output Power 4500W
Maximum PV Input Power 6500W
Maximum Solar Charging Current 180A
Battery Voltage 24VDC
Surge Power 9000W
Nominal DC Voltage 360VDC
Maximum DC Voltage 500VDC
Start-Up Voltage 90VDC
Initial Feeding Voltage 120VDC
MPPT Voltage Range 90V – 450VDC
MPPT Configuration Dual PV Port Parallel Based
Maximum PV Input Current 32A
Nominal Output Voltage 220V / 230V / 240V AC
Output Voltage Range 195.5V – 253V AC
Output Current 20A
Power Factor >0.99
Feed-In Grid Frequency Range 49 – 51Hz
Solar to AC Conversion Efficiency 98%
Full Load Output Power 4500W
Maximum Main Load 4500W
Maximum Second Load (Battery Mode) 1500W
Main Load Cut-Off Voltage 22VDC
Main Load Return Voltage 27VDC
AC Start-Up Voltage 120V – 140V AC / 180V AC
Acceptable Input Voltage Range 90V – 280V AC or 170V – 280V AC
Maximum AC Input Current 30A
Operating Frequency 50/60Hz
Output Waveform Pure Sine Wave
DC to AC Efficiency 98%
Maximum AC Charging Current 100A
Maximum Combined Charging Current (AC + Solar) 280A
Communication Port RS232 / WiFi / GPRS
Dimensions (D × W × H) 420 × 310 × 110 mm
Net Weight 14.2 kg
Operating Temperature -10°C to 80°C
Display Type Color LCD with Touch Buttons
WiFi Monitoring Optional
Battery Compatibility Lithium Batteries Supported
Operation Modes On-Grid / Off-Grid / Hybrid
Protection Features Overload Protection, Short Circuit Protection, Anti-Dust Protection, Reverse Grid Feeding Protection
Warranty 5 Years

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Ziewnic Z5 PV6500 4.5kVA 1 Phase Hybrid Solar Inverter

The Ziewnic Z5 PV6500 4.5kVA Hybrid Solar Inverter is a next-generation single-phase solar inverter designed to deliver reliable power for residential and commercial solar systems. Featuring advanced 6th Generation inverter technology, it supports On-Grid, Off-Grid, and Hybrid operation modes, making it a versatile solution for modern energy requirements. With a high-efficiency 180A MPPT solar charge controller, dual PV inputs, power factor 1.0 output, and support for lithium batteries, the PV6500 maximizes solar energy utilization while ensuring stable and uninterrupted power supply. Its intelligent LCD display, Wi-Fi monitoring support, and built-in protection features provide enhanced convenience, performance, and safety.
