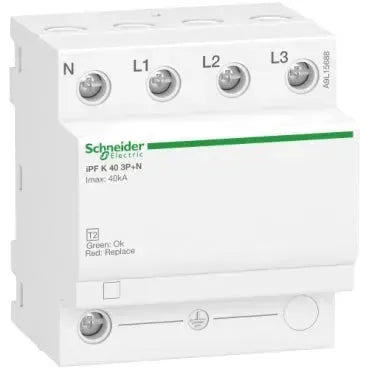

Schneider IPF40 3 Pole + N Surge Protective Device
Product SKU:
A9L15688
Rs.52,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Type
Surge Protective Device
range of product
Acti9
Product name
Acti9 iPF K
product or component type
Surge arrester
Device short name
iPF K
Device application
Distribution
Standards
IEC 61643-11:2011
Product certifications
CE EAC
Poles description
3P + N
Remote signalling
Without
Surge arrester type
Electrical distribution network
Earthing system
TT TN-S
Key Features
High power motor
Higher work efficiency
Product Details
Reviews
Shipping & Returns
Schneider IPF40 3 Pole + N Surge Protective Device
This Acti9 iPF K 40 product is a modular surge arrester. It protects 3P installations. The Imax maximum discharge current is 40kA .The In nominal discharge current is 15kA. The multi-pole single-piece surge arrester range is adapted for TT, TN-S, TN-C earthing systems. This type 2 incoming protection surge arrester is recommended for a high risk level. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 260VAC. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 340VAC. The Up Voltage protection level is 1.5kV in common mode (between neutral and earth) and in differential mode (between phase and neutral). The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 81mm x (D) 69mm. The weight is 420g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25å¡C to 60å¡C. The storage temperature is -40å¡C to 85å¡C. This product is compliant with IEC 61643-11 and EN 61643-11 standards.
